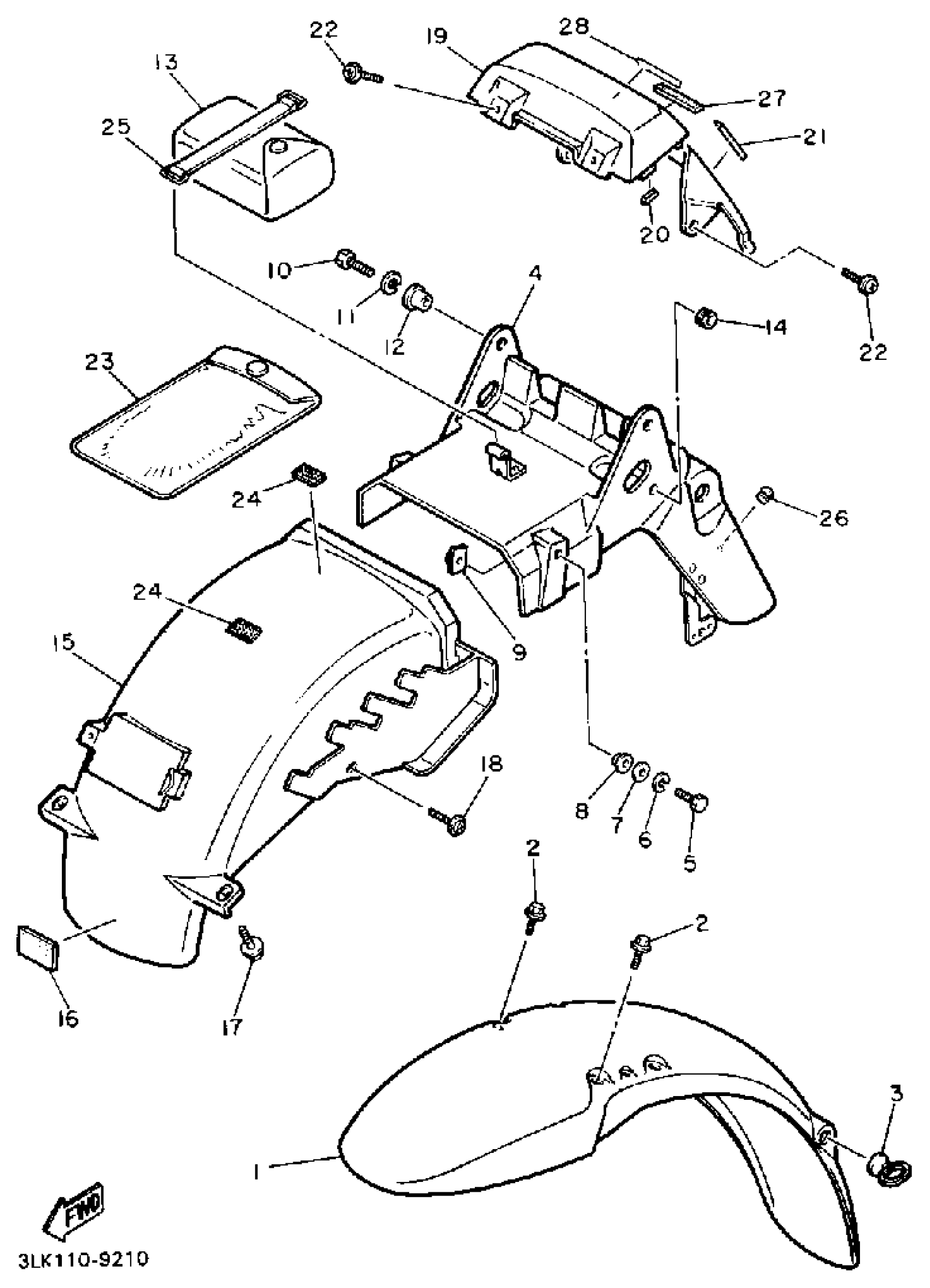

Yamaha FZR1000WC (FZR1000 CA) 1989 FENDER Diagram

#

Description
Price

1

FRONT FENDER

3GM-W2151-01-GE

Unavailable

2

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

3

GUIDE, WIRE

1A8-21518-00-00

$7.99

4

REAR FENDER

3LK-W2161-01-00

Unavailable

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

WASHER, SPRING

92995-06100-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

COLLAR(47X)

90387-061M0-00

$8.49

9

PLATE

31A-14477-10-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, SPRING

92995-06100-00

Unavailable

12

COLLAR (8G8)

90387-06648-00

$8.49

13

TOOL KIT

3GM-28100-00-00

Unavailable

14

GROMMET

90480-10258-00

Unavailable

15

GUARD, MUD

3GM-21629-00-00

Unavailable

16

DAMPER 1

2JG-21638-00-00

Unavailable

17

BOLT, WITH WASHER

90119-06226-00

Unavailable

18

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

19

COVER, REAR FENDERFENDER

3GM-21651-00-GE

Unavailable

20

SEAL 1

2GH-21732-00-00

Unavailable

21

SEAL 2

2GH-21735-00-00

Unavailable

22

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

23

POUCH

4K5-28186-00-00

Unavailable

24

HOOK

4K5-2814E-10-00

Unavailable

25

BAND, BATTERY

26L-82131-00-00

Unavailable

26

PLUG

90338-07018-00

Unavailable

27

SEAL 4

J44-78248-00-00

Unavailable

28

EMBLEM, YAMAHA

99243-00080-00

Unavailable
