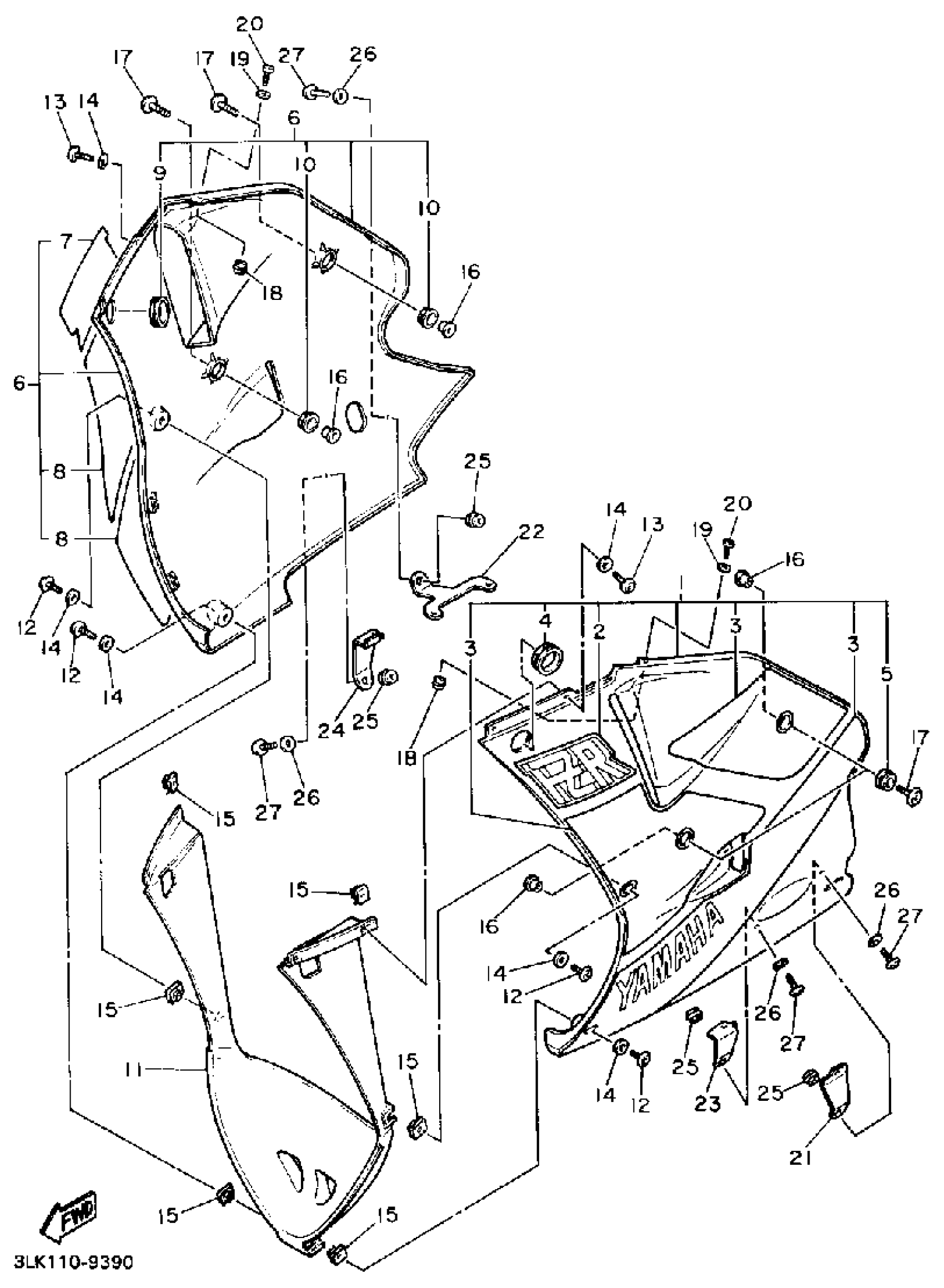

Yamaha FZR1000WC (FZR1000 CA) 1989 COWLING 2 Diagram

#

Description
Price

1

BODY, FRONT LOWER1LOWER 1

3GM-Y283J-00-GE

Unavailable

2

. EMBLEM

3GM-28328-00-00

Unavailable

3

. GRAPHICSET3 COWLINCOWLING

3GM-2836V-01-00

Unavailable

4

GROMMET(3GM)

90480-35526-00

$4.77

5

GROMMET

90480-13014-00

$8.49

6

BODY, FRONT LOWER2LOWER 2

3GM-Y283K-00-GE

Unavailable

7

. EMBLEM

3GM-28338-00-00

Unavailable

8

. GRAPHICSET3 COWLINCOWLING

3GM-2836W-01-00

Unavailable

9

GROMMET(3GM)

90480-35526-00

$4.77

10

GROMMET

90480-13014-00

$8.49

11

PANEL, INNER 1

3GM-2836K-00-GE

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

13

SCREW(3YF)

90149-05299-00

$4.14

14

WASHER, PLATE(1KT)

90202-05180-00

$10.49

15

NUT, SPRING

90183-051A0-00

$3.81

16

COLLAR(1LJ)

90387-067N5-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

Unavailable

18

NUT(1KT)

90179-05523-00

Unavailable

19

WASHER, PLATE(1KT)

90202-05180-00

$10.49

20

SCREW(3YF)

90149-05299-00

$4.14

21

BRACKET 1

3GM-2836A-00-00

Unavailable

22

BRACKET 2

3GM-2836E-00-00

Unavailable

23

BRACKET 3

3GM-2836F-00-00

Unavailable

24

BRACKET 4

3GM-2836G-00-00

Unavailable

25

NUT(1KT)

90179-05523-00

Unavailable

26

WASHER, PLATE(1KT)

90202-05180-00

$10.49

27

SCREW(3YF)

90149-05299-00

$4.14
