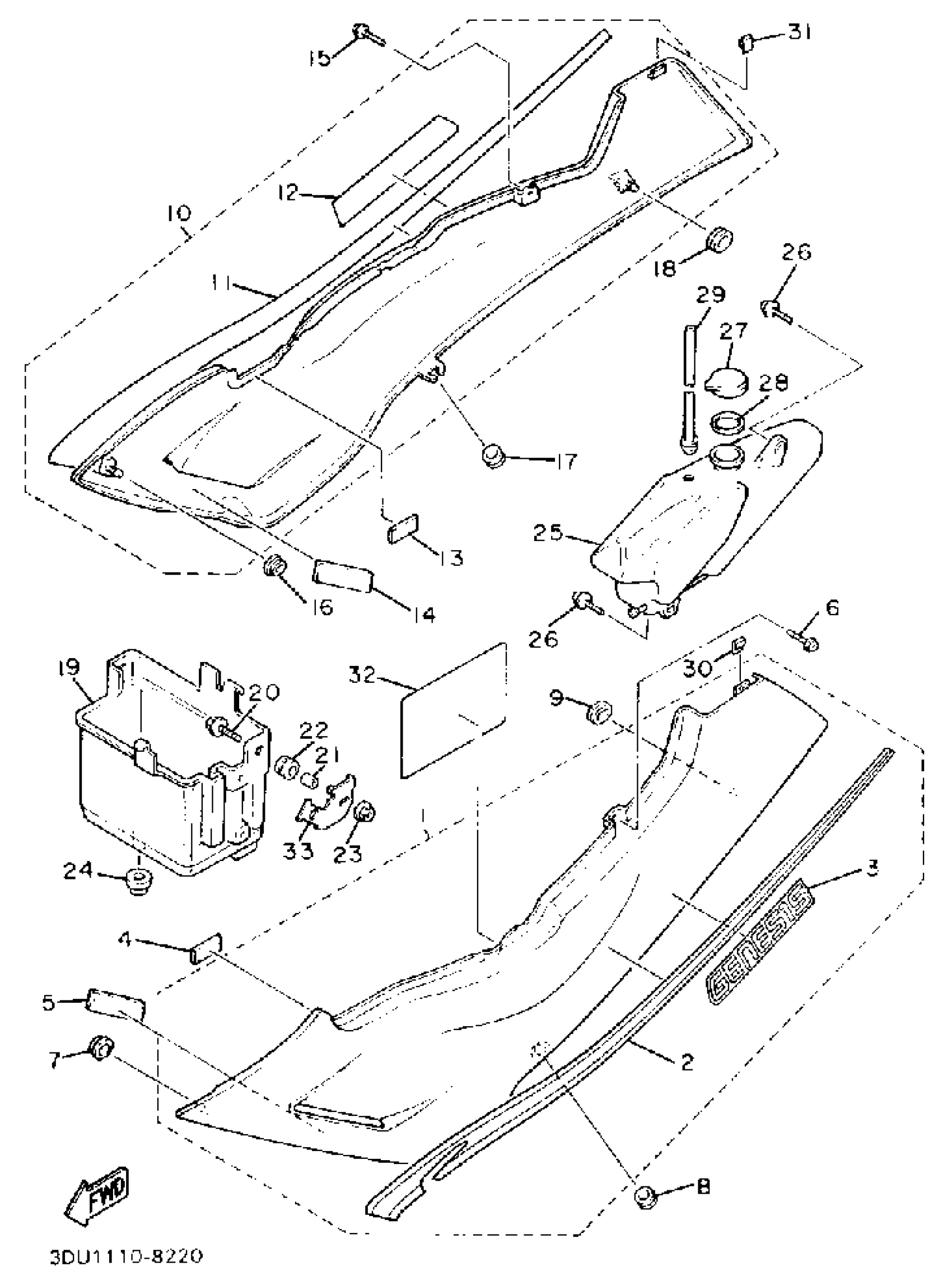

Yamaha FZR1000UC (FZR1000 CA) 1988 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER 1

2GH-W2175-10-1X

Unavailable

2

. GRAPHIC (SILKY WHITE) (DYNASTY BLUE)

2GH-21788-00-00

Unavailable

3

. EMBLEM 3 (SILKY WHITE) (DYNASTY BLUE)

2GH-21783-00-00

Unavailable

4

DAMPER

5G3-21747-00-00

Unavailable

5

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

6

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

7

GROMMET 654427240000

90480-14074-00

Unavailable

8

GROMMET

90480-12320-00

$8.49

9

GROMMET

90480-22084-00

$7.49

10

SIDE COVER 3

2GH-W2173-10-1X

Unavailable

11

. GRAPHIC (SILKY WHITE) (DYNASTY BLUE)

2GH-21789-00-00

Unavailable

12

. EMBLEM 3 (SILKY WHITE) (DYNASTY BLUE)

2GH-21783-00-00

Unavailable

13

DAMPER

5G3-21747-00-00

Unavailable

14

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

15

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

16

GROMMET 654427240000

90480-14074-00

Unavailable

17

GROMMET

90480-12320-00

$8.49

18

GROMMET

90480-22084-00

$7.49

19

BOX

2GH-21245-00-00

Unavailable

20

BOLT, WITH WASHER(2WG)

90119-06172-00

Unavailable

21

COLLAR

90387-06113-00

Unavailable

22

GROMMET (2N3)

90480-16233-00

Unavailable

23

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

24

GROMMET

90480-23192-00

Unavailable

25

TANK, RECOVERY

2GH-21871-00-00

Unavailable

26

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

27

CAP

1AA-21815-00-00

Unavailable

28

GASKET

1AA-21874-00-00

Unavailable

29

PIPE, OVERFLOW (L1400)

4BH-21877-00-00

Unavailable

30

SEAL 1

2GH-21732-00-00

Unavailable

31

SEAL 1

2GH-21732-00-00

Unavailable

32

PLATE, SPECIFICATIO

(3CA-21687-80-00)

Unavailable

32

PLATE, SPEC

3DU-21683-80-00

Unavailable

33

UNAVAILABLE IN PRICE BOOK

[2L-J2115-80-00

Unavailable
