Description

Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

WASHER, LOCK (583 SHIFT)

90215-08115-00

$7.49

3

SEAL, OIL (30X)

93102-12321-00

$12.49

4

SHIFT SHAFT ASY.1

1AE-18101-03-00

Unavailable

5

SPRING, TORSION (17W)

90508-10514-00

Unavailable

6

SPRING, TORSION

90508-32142-00

$5.60

7

. COLLAR

90387-114K8-00

Unavailable

8

WASHER, PLATE (353)

90201-12575-00

$8.49

9

CIRCLIP

99006-10600-00

$9.49

10

SPACER (3Y1)

90560-12191-00

$7.49

11

OIL SEAL

93109-12075-00

$10.49

12

ARM, SHIFT

2GH-18112-01-00

Unavailable

13

COVER, DUST

2H9-18154-00-00

$5.49

14

BOLT, FLANGE

95817-06020-00

$3.81

15

ROD, SHIFT

46X-18115-00-00

Unavailable

16

NUT (2H9)

90170-06228-00

Unavailable

17

NUT(650)

95380-06700-00

Unavailable

18

SHIFT PEDAL ASSEMBLY

2GH-18110-00-00

Unavailable

19

COVER, DUST

2H9-18154-00-00

$5.49

20

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

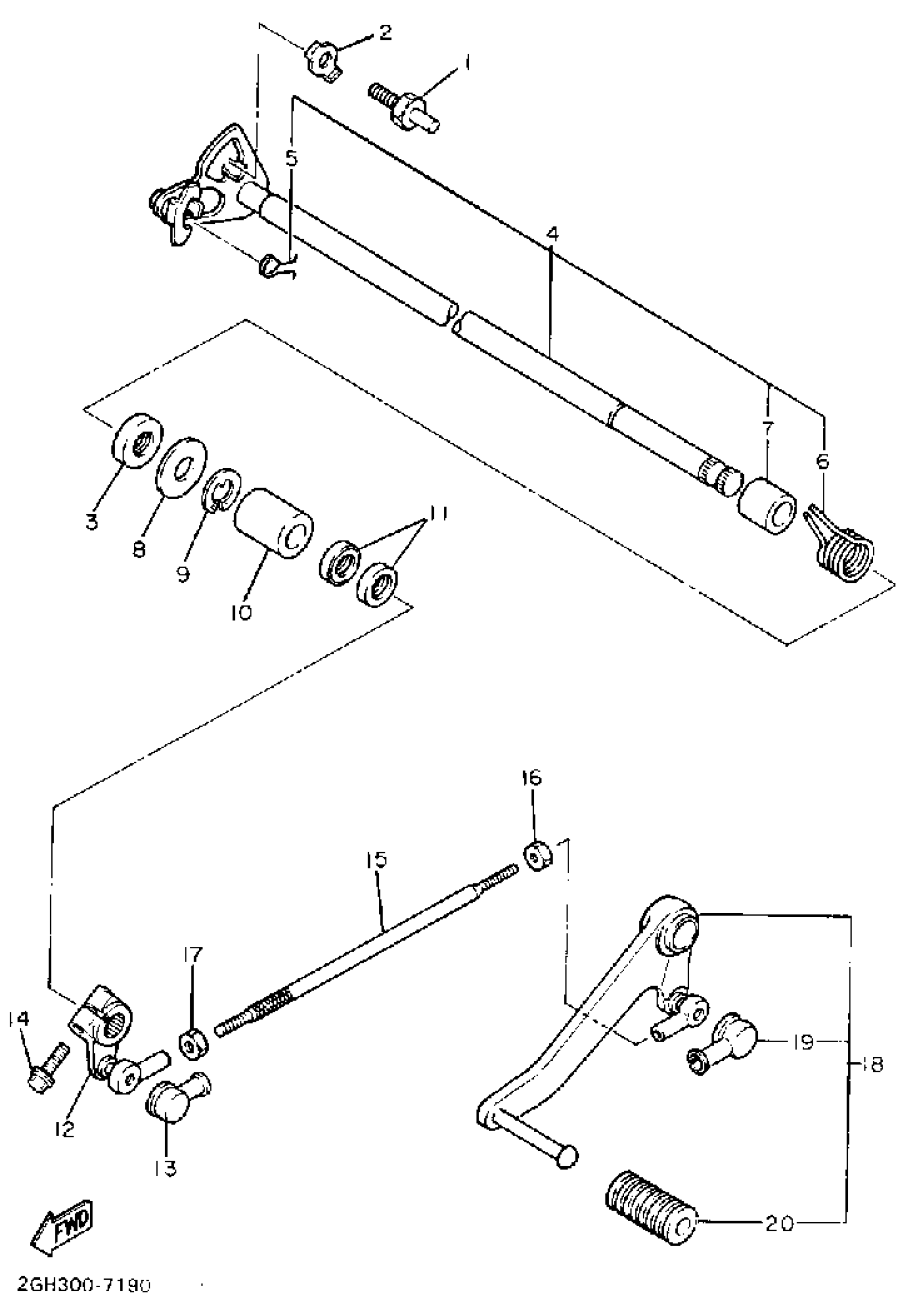

Yamaha FZR1000UC (FZR1000 CA) 1988 SHIFT SHAFT Diagram

STOPPER, SCREW

WASHER, LOCK (583 SHIFT)

SEAL, OIL (30X)

SHIFT SHAFT ASY.1

SPRING, TORSION (17W)

SPRING, TORSION

. COLLAR

WASHER, PLATE (353)

CIRCLIP

SPACER (3Y1)

OIL SEAL

ARM, SHIFT

COVER, DUST

BOLT, FLANGE

ROD, SHIFT

NUT (2H9)

NUT(650)

SHIFT PEDAL ASSEMBLY

COVER, DUST

COVER, CHANGE PEDAL
