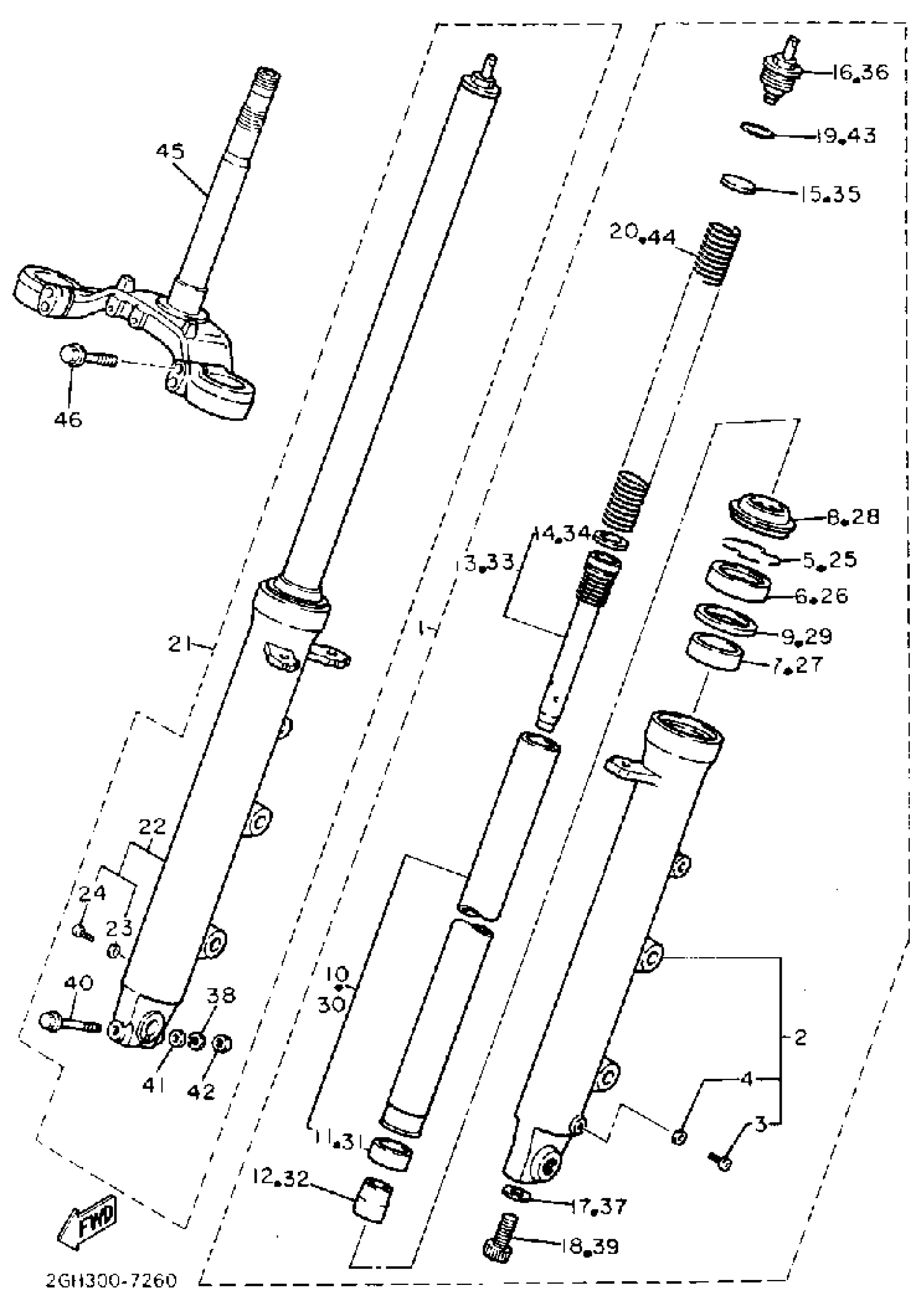

Yamaha FZR1000UC (FZR1000 CA) 1988 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

2GH-23102-00-00

Unavailable

2

TUBE, OUTER 1

2GH-23126-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

5

CLIP, OIL SEAL

26H-23156-00-00

$7.99

6

OIL SEAL

3SP-23145-L0-00

$29.99

7

METAL, SLIDE 1

4FM-23125-40-00

$33.99

8

SEAL, DUST

3XV-23144-50-00

Unavailable

9

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

10

. INNER TUBE 1

2GH-23110-00-00

Unavailable

11

BUSH

36Y-23171-00-00

$29.99

12

. UNAVAILABLE IN PRICE BOOK

[2G-H2317-30-00

Unavailable

13

. CYLINDER, FRTFRK FRONT FORK

2GH-23170-00-00

Unavailable

14

.. RING, PISTON FRTFRK

36Y-23157-00-00

Unavailable

15

. WASHER, SPRING UPR

2GH-23149-00-00

Unavailable

16

. BOLT, CAP

2GH-23111-00-00

Unavailable

17

GASKET

4V4-23158-L0-00

Unavailable

18

BOLT

4V4-23181-L0-00

Unavailable

19

.. O-RING

36Y-23147-00-00

Unavailable

20

. SPRING, FRONT FORK

2GH-23141-00-00

Unavailable

21

FRONT FORK ASSEMBLY R

2GH-23103-00-00

Unavailable

22

TUBE, OUTER 2

2GH-23136-00-00

Unavailable

23

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

24

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

25

CLIP, OIL SEAL

26H-23156-00-00

$7.99

26

OIL SEAL

3SP-23145-L0-00

$29.99

27

METAL, SLIDE 1

4FM-23125-40-00

$33.99

28

SEAL, DUST

3XV-23144-50-00

Unavailable

29

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

30

. INNER TUBE 1

2GH-23110-00-00

Unavailable

31

BUSH

36Y-23171-00-00

$29.99

32

. UNAVAILABLE IN PRICE BOOK

[2G-H2317-30-00

Unavailable

33

. CYLINDER, FRTFRK FRONT FORK

2GH-23170-00-00

Unavailable

34

.. RING, PISTON FRTFRK

36Y-23157-00-00

Unavailable

35

. WASHER, SPRING UPR

2GH-23149-00-00

Unavailable

36

. BOLT, CAP

2GH-23111-00-00

Unavailable

37

GASKET

4V4-23158-L0-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

BOLT

4V4-23181-L0-00

Unavailable

40

. BOLT, AXLE HOLDER

1UJ-23128-00-00

Unavailable

41

.. WASHER, PLATE

92990-08600-00

Unavailable

42

NUT(6L2)

95333-08600-00

Unavailable

43

.. O-RING

36Y-23147-00-00

Unavailable

44

. SPRING, FRONT FORK

2GH-23141-00-00

Unavailable

45

UNDER BRACKETCOMP

2GH-23340-00-00

Unavailable

46

BOLT, FLANGE

95814-08040-00

Unavailable
