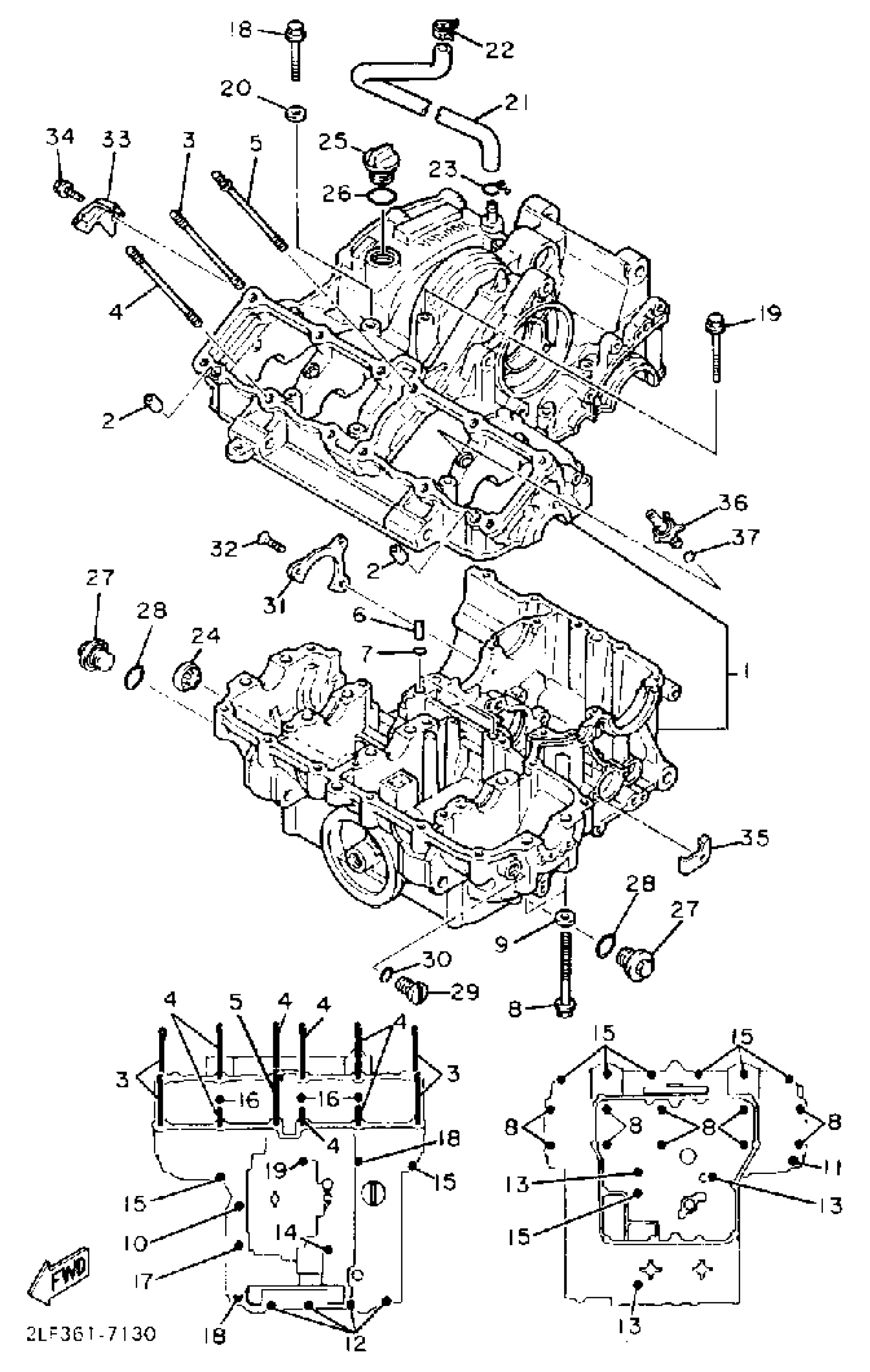

Yamaha FZR1000UC (FZR1000 CA) 1988 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

2GH-15100-02-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, STUD

90116-09458-00

Unavailable

4

BOLT, STUD (1AA)

90116-09500-00

Unavailable

5

BOLT, STUD (1AA)

90116-09500-00

Unavailable

6

COLLAR 288839130000

90387-05383-00

$10.49

7

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

8

BOLT, WASHER BASED

90105-09373-00

Unavailable

9

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

10

BOLT, FLANGE

95817-06035-00

$7.49

11

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

12

BOLT, FLANGE

95817-06060-00

$4.14

13

BOLT, FLANGE

95817-06080-00

$4.72

14

BOLT, FLANGE

95817-06140-00

Unavailable

15

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

16

BOLT, FLANGE

95817-08055-00

Unavailable

17

BOLT, WASHER BASED

90105-084A1-00

Unavailable

18

BOLT, FLANGE

95817-08090-00

Unavailable

19

BOLT,FLANGE

95817-08135-00

Unavailable

20

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

21

PIPE, BREATHER 1

1AE-11166-00-00

Unavailable

22

CLIP (4X7)

90467-15054-00

Unavailable

23

CLIP (371)

90467-14015-00

Unavailable

24

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

25

PLUG, OIL

2H9-15363-00-00

Unavailable

26

O-RING(1KT)

93210-27778-00

Unavailable

27

PLUG

4H7-15189-00-00

Unavailable

28

O-RING (25G)

93210-20573-00

Unavailable

29

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

30

O-RING (2H9)

93210-14369-00

Unavailable

31

PLATE, BEARING COVER

1AE-15383-00-00

Unavailable

32

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

33

CLAMP

90465-08281-00

Unavailable

34

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

35

CLAMP

90462-08158-00

Unavailable

36

NOZZLE ASSEMBLY

2GH-15105-01-00

Unavailable

37

O-RING (26H)

93210-06632-00

Unavailable
