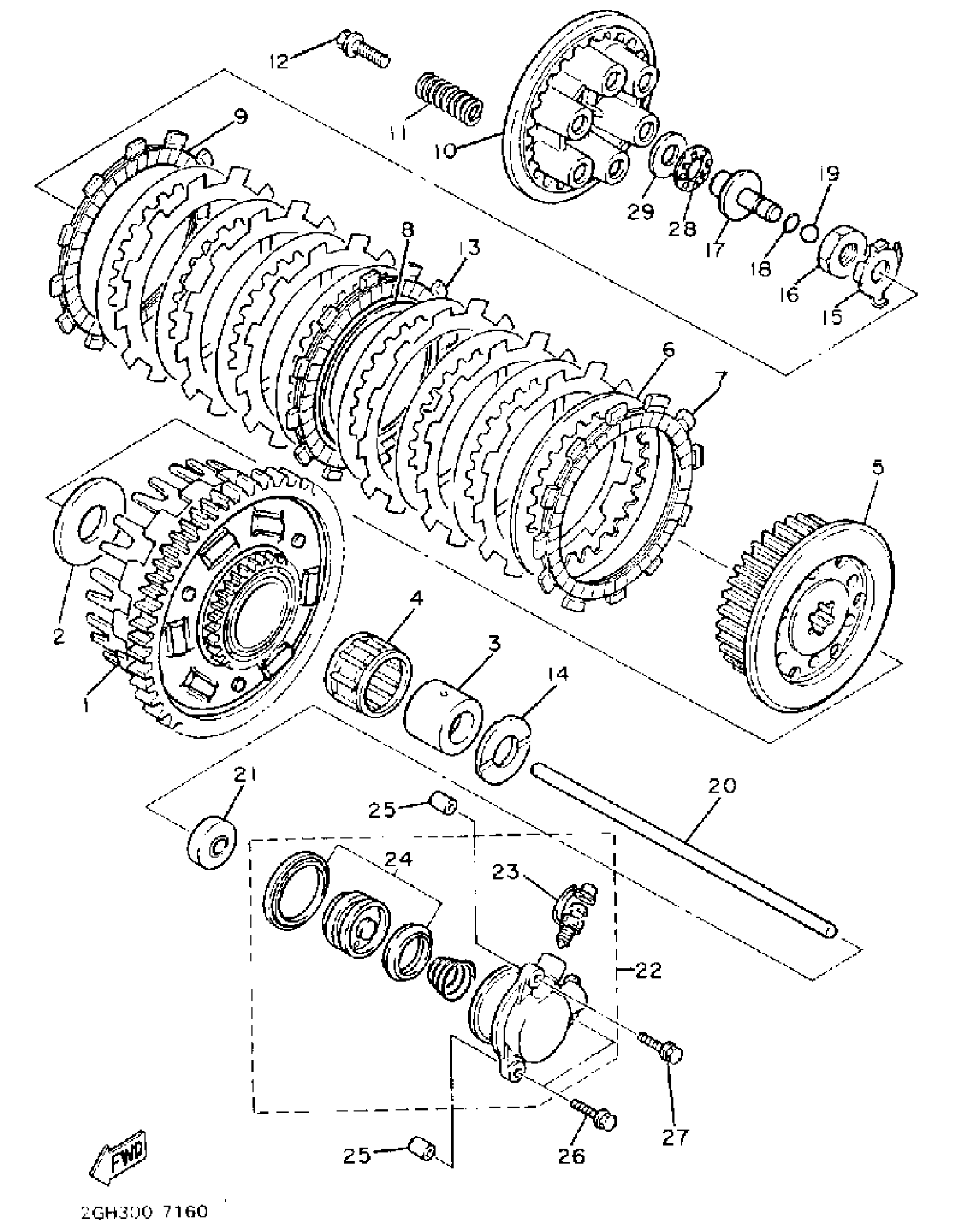

Yamaha FZR1000UC (FZR1000 CA) 1988 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

3GM-16150-01-00

Unavailable

2

PLATE, THRUST 1

1AE-16154-00-00

Unavailable

3

COLLAR

90387-25024-00

Unavailable

4

BEARING, CYLINDRICAL(1FN)

93310-340N8-00

Unavailable

5

BOSS, CLUTCH

2GH-16371-00-00

Unavailable

6

PLATE, CLUTCH 2

31A-16325-10-00

$9.99

7

PLATE, FRICTION

4H7-16321-02-00

$23.99

8

SPRING, CLUTCH BOSS

5Y1-16383-00-00

$32.99

9

PLATE, FRICTION

4H7-16321-02-00

$23.99

10

PLATE, PRESSURE 1

58L-16351-00-00

Unavailable

11

SPRING, COMPRESSION(1FN)

90501-225A9-00

$8.49

12

SCREW, WITH WASHER(1AE)

90159-06123-00

$9.49

13

PLATE, FRICTION

5Y1-16331-01-00

$29.99

14

PLATE, THRUST 2

1AE-16164-00-00

$16.49

15

WASHER, LOCK (34L)

90215-20231-00

$4.41

16

NUT (34L)

90170-20327-00

Unavailable

17

ROD, PUSH 1

1LJ-16356-00-00

Unavailable

18

O-RING (26H)

93210-06632-00

Unavailable

19

BALL (498)

93511-32027-00

Unavailable

20

ROD, PUSH 2

1AE-16357-00-00

Unavailable

21

OIL SEAL(12E)

93109-08061-00

Unavailable

22

PUSH LEVER COMP.

1TV-16381-12-00

Unavailable

23

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

24

PUSH LEVER SEAL KIT

26H-W0098-00-00

Unavailable

25

PIN, DOWEL(N04)

91808-12024-00

Unavailable

26

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

27

BOLT, SMALL FLANGE

95027-06090-00

Unavailable

28

BEARING, THRUST (713)

93340-21505-00

Unavailable

29

WASHER, PLATE(3GD)

90201-150U6-00

Unavailable
