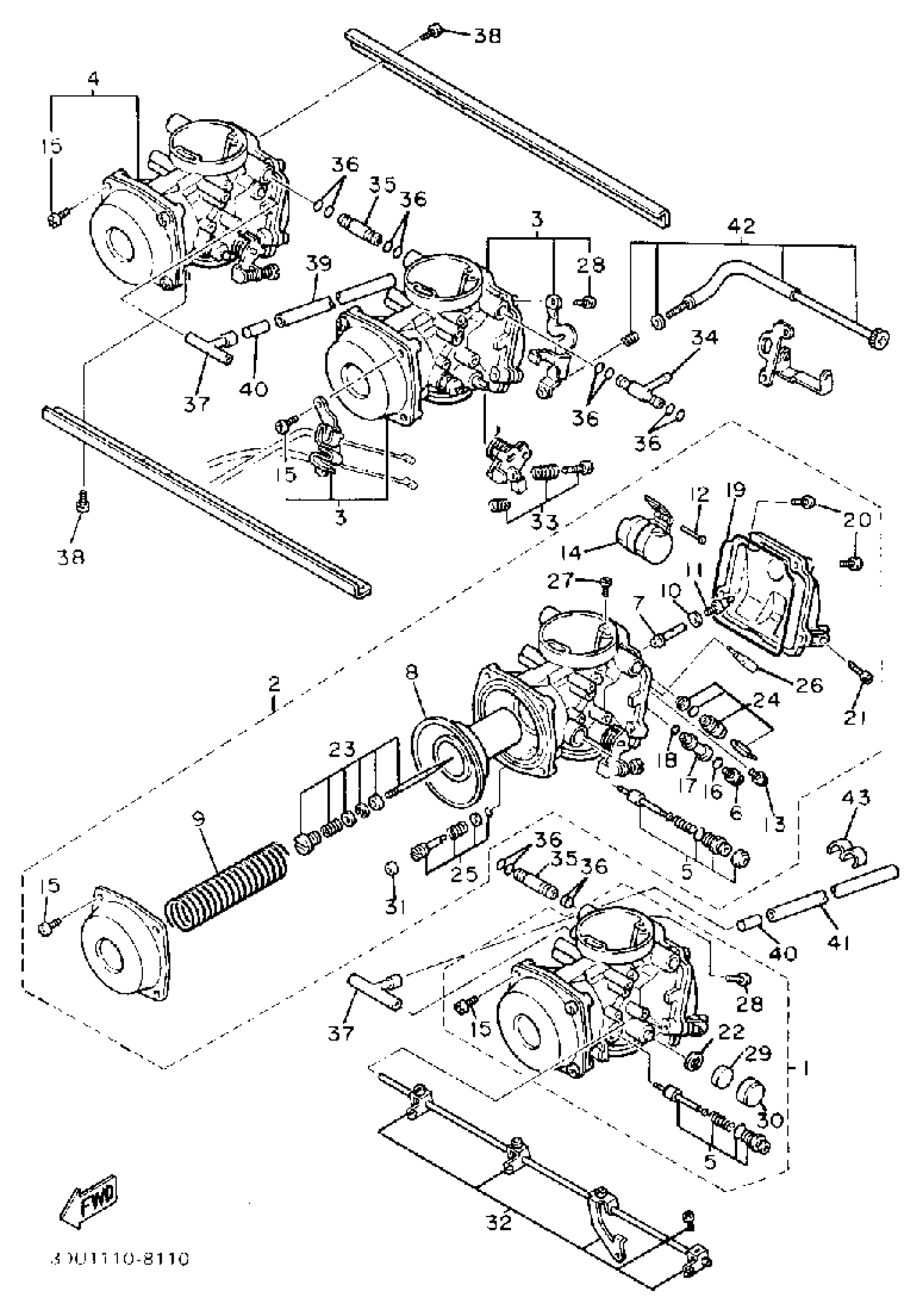

Yamaha FZR1000UC (FZR1000 CA) 1988 CARBURETOR CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

. CARBURETOR ASSEMBLY 1

2LJ-14901-00-00

Unavailable

2

CARBURETOR ASSEMBLY 2

2LJ-14902-0--00

Unavailable

3

CARBURETOR ASSEMBLY 3

2LJ-14903-00-00

Unavailable

4

CARBURETOR ASSEMBLY 4

2LJ-14940-00-00

Unavailable

5

.. STARTER SET

1AE-1410A-00-00

Unavailable

5

STARTER SET

1FN-1410A-00-00

$79.99

6

JET, MAIN (#105)

620-14231-21-A0

$15.49

6

.. JET, MAIN#1075

620-1423A-72-A0

Unavailable

7

.. NOZZLE, MAIN

1AE-14141-90-00

Unavailable

8

.. DIAPHRAGM ASSEMBLY

2LH-14940-00-00

Unavailable

9

.. SPRING, DIAPHRAGM

2LH-14933-00-00

Unavailable

10

WASHER,MAIN JET

137-14153-00-00

$7.99

11

SCREW

1AE-14565-00-00

$30.99

12

PIN, FLOAT

353-14186-00-00

$7.99

13

SCREW

1FN-14565-00-00

$7.99

14

.. FLOAT

1WG-14985-00-00

Unavailable

15

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

16

O-RING

1AE-14227-00-00

Unavailable

17

.. HOLDER

2LH-14261-00-00

Unavailable

18

GASKET

1AE-14237-00-00

Unavailable

19

O-RING

1FN-14147-00-00

Unavailable

20

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

20

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

21

PLUG, DRAIN

12R-14191-00-00

Unavailable

22

CLIP

812-14137-00-00

Unavailable

23

.. NEEDLE SET

2LH-1490J-00-00

Unavailable

24

NEEDLE VALVE SET

3CF-14107-15-00

Unavailable

25

PILOT SCREW SET

12R-14105-00-00

Unavailable

26

JET, PILOT (# 20)

3H1-14142-20-00

Unavailable

27

.. JET, MAIN (#1175)

830-1423A-74-00

Unavailable

28

SCREW, PAN HEAD

98517-04016-00

Unavailable

29

CAP

36X-14169-00-00

Unavailable

30

.. CAP

1AE-14169-00-00

Unavailable

31

CAP

3F9-14118-00-00

Unavailable

32

. STARTER LEVER SET 1

2LH-1490L-00-00

Unavailable

33

STOP SCREW SET

1FN-1490K-01-00

Unavailable

34

. NIPPLE

1HX-14251-00-00

Unavailable

35

. NIPPLE

16H-14251-00-00

Unavailable

36

O-RING

36Y-14147-00-00

Unavailable

37

. PIPE

1AE-14197-00-00

Unavailable

38

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

39

HOSE

50H-14987-00-00

Unavailable

40

. RING

1FN-14918-00-00

Unavailable

41

HOSE

50H-14987-00-00

Unavailable

42

. THROTTLE SCREW SET

2LE-14103-00-00

Unavailable

43

CLAMP(6M7)

90464-09M31-00

Unavailable
