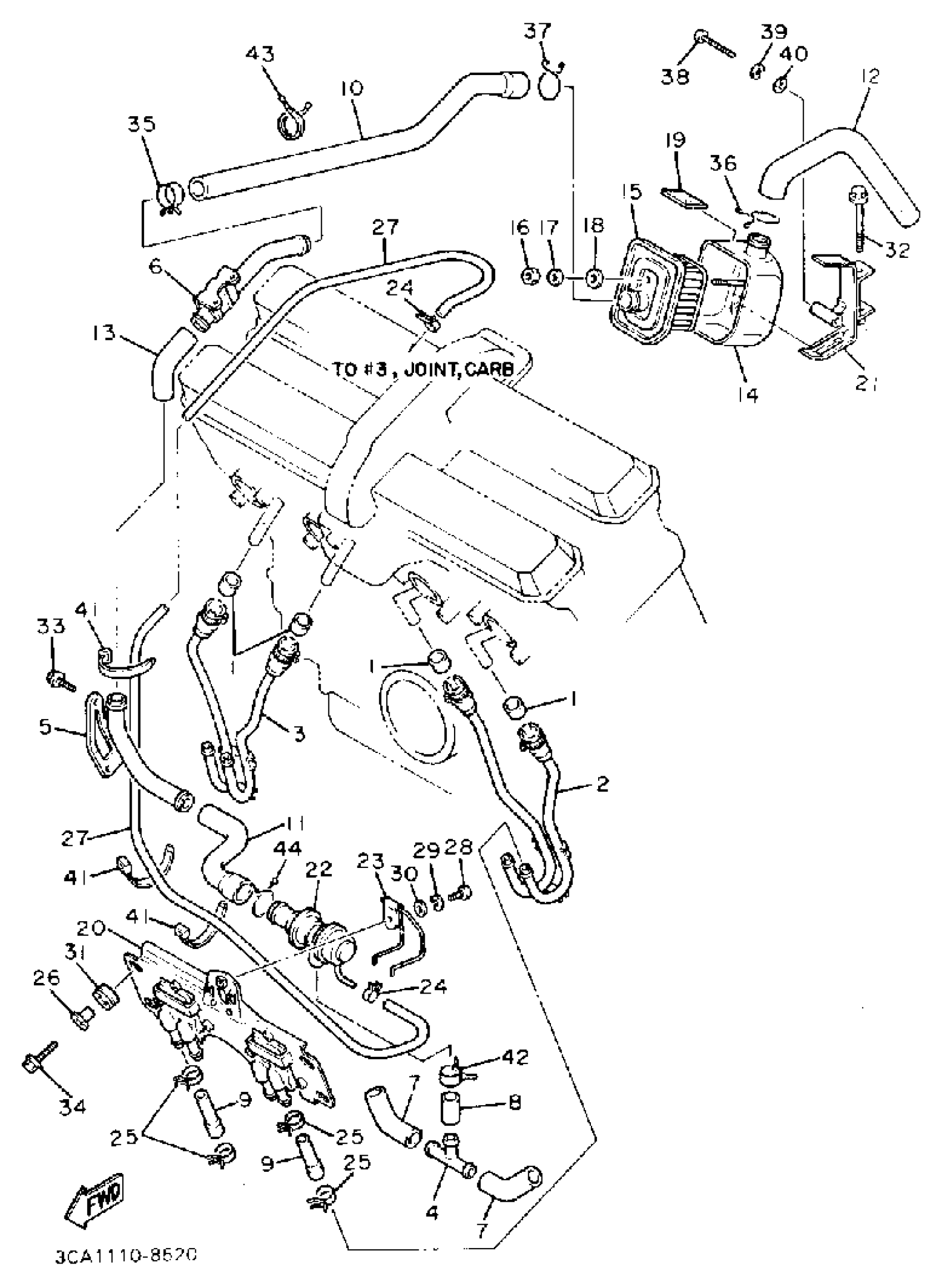

Yamaha FZR1000UC (FZR1000 CA) 1988 AIR INDUCTION SYSTEM CALIFORNIA MODEL ONLY Diagram

#

Description

Price

1

GASKET, MUFFLER

42H-14714-10-00

Unavailable

2

PIPE 1

2LJ-14871-00-00

Unavailable

3

PIPE 2

2LJ-14872-00-00

Unavailable

4

PIPE 4

2LJ-14874-00-00

Unavailable

5

UNAVAILABLE IN PRICE BOOK

2L-J1487-50-00

Unavailable

6

PIPE 6

2LJ-14876-00-00

Unavailable

7

HOSE, BEND 1

2LJ-14881-00-00

Unavailable

8

HOSE, BEND 2

2LJ-14882-00-00

Unavailable

9

HOSE, BEND 3

2LJ-14883-00-00

Unavailable

10

HOSE, BEND 4

2LJ-14884-00-00

Unavailable

11

HOSE, BEND 5

2LJ-14885-00-00

Unavailable

12

HOSE, BAND 6

2LJ-14886-00-00

Unavailable

13

PIPE

2LJ-14148-00-00

Unavailable

14

CASE, AIR CLEANER

42H-14857-00-00

Unavailable

15

CAP, CASE

42H-14858-00-00

Unavailable

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

. WASHER, PLAIN

92990-05200-00

Unavailable

18

WASHER, PLATE (463)

90202-05057-00

Unavailable

19

DAMPER

5H0-8235Y-M0-00

Unavailable

20

REED VALVE ASSEMBLY

2LJ-14808-00-00

Unavailable

21

BRACKET 2

2LJ-14868-00-00

Unavailable

22

AIR CUT VALVE ASSEMBLY

1TA-14840-00-00

Unavailable

23

CLAMP (1RV)

90462-20188-00

Unavailable

24

CLIP(41W)

90467-08092-00

Unavailable

25

CLIP

90468-08104-00

Unavailable

26

COLLAR 437216330000

90387-07391-00

Unavailable

27

HOSE

90445-094E8-00

Unavailable

28

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

29

WASHER, SPRING

92907-06100-00

Unavailable

30

WASHER(6TA)

92907-06600-00

Unavailable

31

GROMET (3X3)

90480-14229-00

Unavailable

32

BOLT, FLANGE

95817-06055-00

Unavailable

33

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

34

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

35

CLIP (23E)

90467-20085-00

Unavailable

36

CLIP (21V)

90467-22080-00

Unavailable

37

CLIP(2LJ)

90467-26111-00

Unavailable

38

SCREW, PAN

98507-06014-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

WASHER, PLAIN (646)

92990-06600-00

Unavailable

41

BAND

341-26397-01-00

Unavailable

42

CLIP(3TB)

90467-17128-00

Unavailable

43

CLAMP (8M1)

90464-30040-00

Unavailable

44

CLIP(8V0)

90467-24096-00

Unavailable
