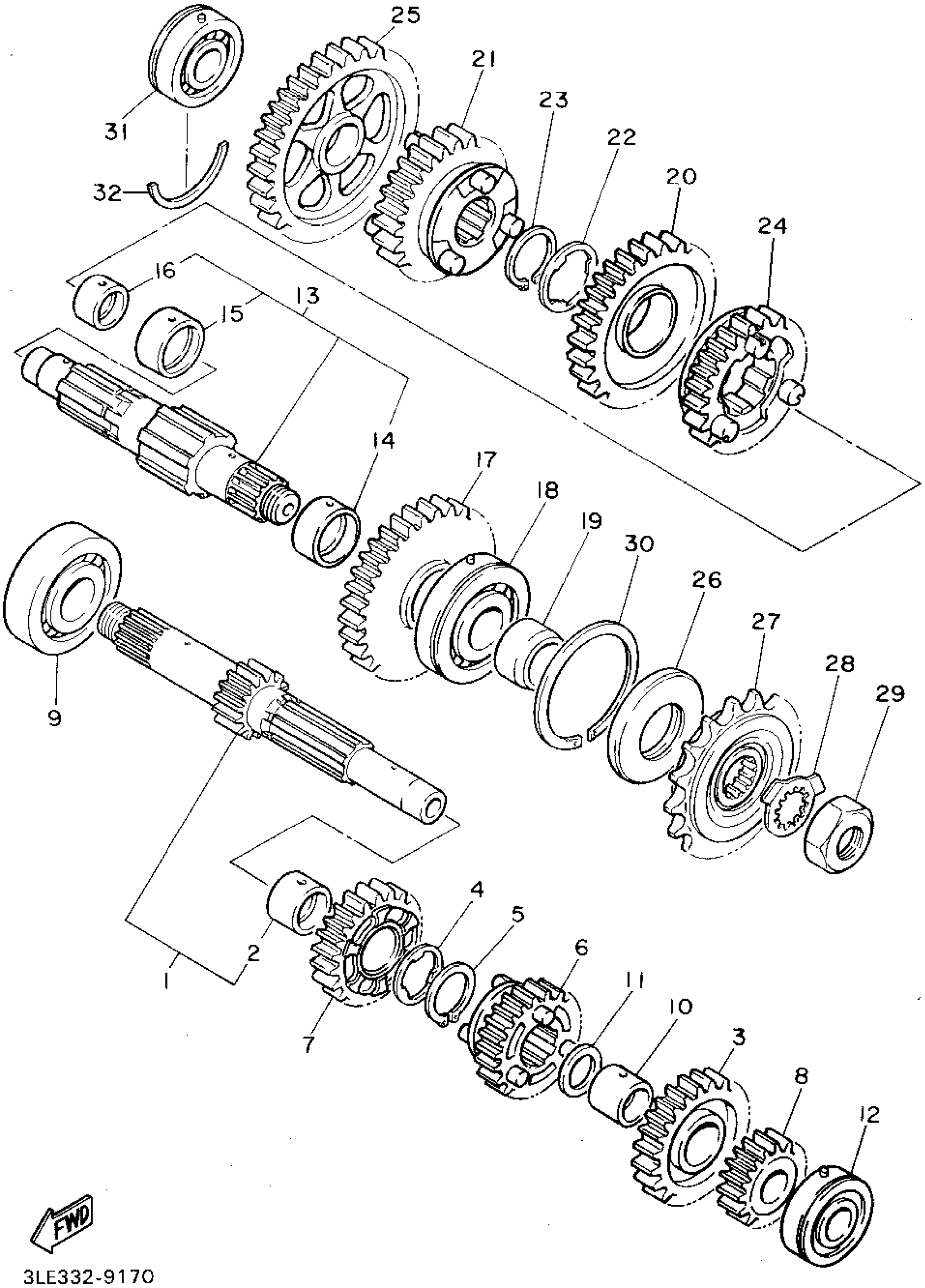

Yamaha FZR1000GC (FZR1000 CA) 1995 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSEMBLY

3LE-W1741-00-00

Unavailable

2

COLLAR(1FN)

90387-253M6-00

Unavailable

3

GEAR, 5TH PINION (27T)

2GH-17151-00-00

Unavailable

4

WASHER (3J3)

90209-22191-00

$7.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

2GH-17131-02-00

Unavailable

7

GEAR, 4TH PINION (23T)

2GH-17141-00-00

Unavailable

8

GEAR, 2ND PINION (18T)

2GH-17121-00-00

Unavailable

9

BEARING (3Y1)

93306-30525-00

$63.99

10

COLLAR

90387-203M7-00

Unavailable

11

WASHER, PLATE

90201-200K3-00

Unavailable

12

BEARING(1FN)

93306-20455-00

Unavailable

13

DRIVE AXLE ASSY

4SV-W1742-00-00

Unavailable

14

COLLAR

90387-2707Y-00

Unavailable

15

COLLAR(2GH)

90387-281T8-00

Unavailable

16

COLLAR(2GH)

90387-211T9-00

Unavailable

17

GEAR, 2ND WHEEL

3GM-17221-00-00

Unavailable

18

BEARING

93305-30501-00

Unavailable

19

COLLAR

90387-255V9-00

Unavailable

20

GEAR, 3RD WHEEL

3GM-17231-01-00

Unavailable

21

GEAR, 4TH WHEEL

3GM-17241-01-00

Unavailable

22

WASHER (4H7)

90209-25196-00

Unavailable

23

CIRCLIP (2H7)

93440-28062-00

Unavailable

24

GEAR,5TH WHEEL

3GM-17251-01-00

Unavailable

25

GEAR, 1ST WHEEL

2GH-17211-02-00

Unavailable

26

OIL SEAL(3GM)

93102-35423-00

Unavailable

27

SPROCKET, DRIVE 17T

2GH-17460-11-00

Unavailable

28

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

29

NUT 152174630000

90179-18020-00

Unavailable

30

CIRCLIP

278-17424-01-00

Unavailable

31

BEARING(1FN)

93306-20455-00

Unavailable

32

CIRCLIP(1FN)

93440-45144-00

Unavailable
