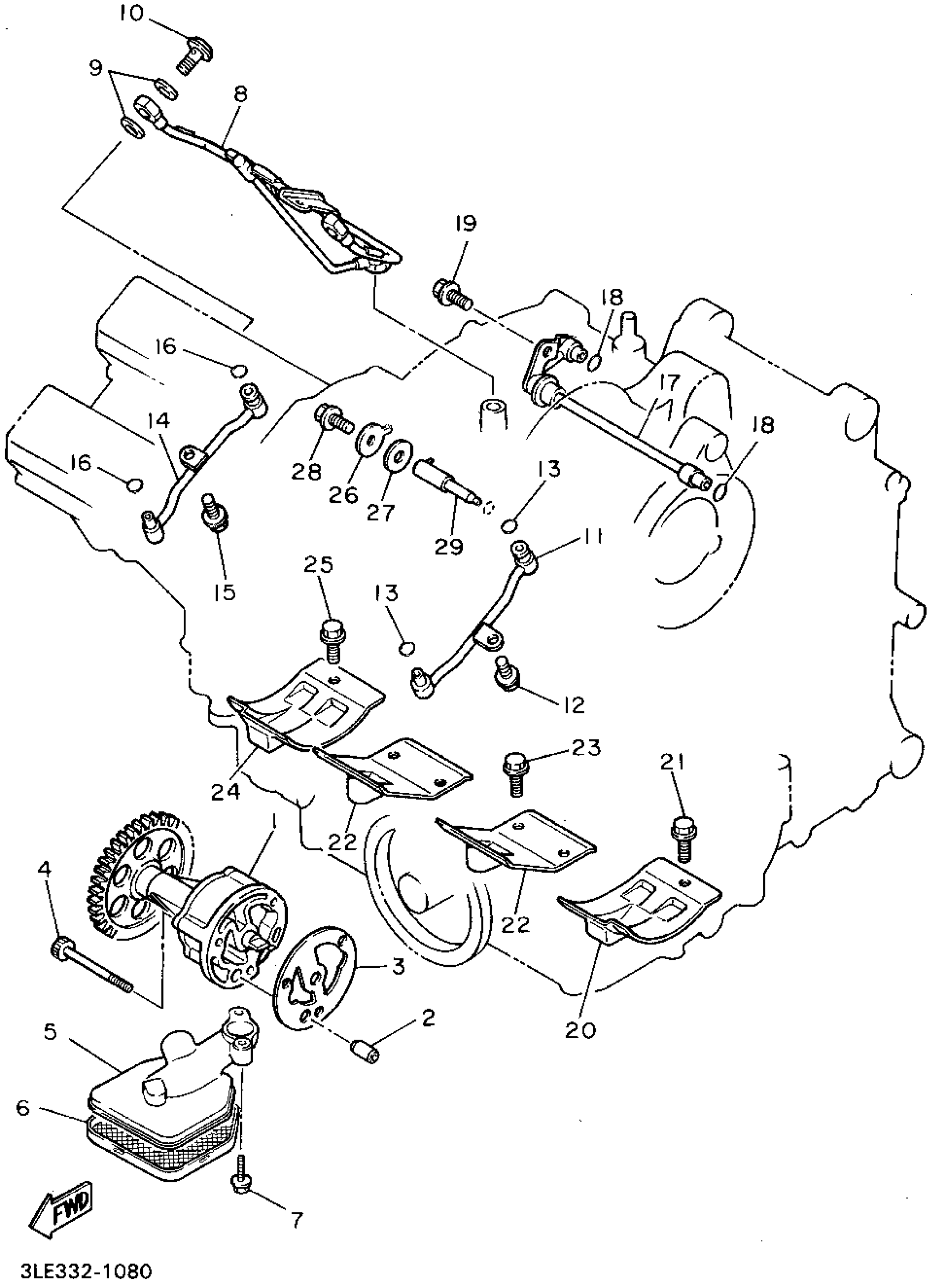

Yamaha FZR1000GC (FZR1000 CA) 1995 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSEMBLY
1AE-13300-00-00
Unavailable
3
GASKET, PUMP COVER
2GH-13329-00-00
Unavailable
5
HOUSING, STRAINER
3GM-13412-50-00
Unavailable
6
STRAINER, OIL
3GM-13411-00-00
Unavailable
8
PIPE, DELIVERY 2
3GM-13171-00-00
Unavailable
11
PIPE, DELIVERY 3
3GM-13181-00-00
Unavailable
14
PIPE, DELIVERY 4
3GM-13191-00-00
Unavailable
17
PIPE, DELEVERY 5
2GH-1316E-01-00
Unavailable
18
O-RING (583 OIL DRAIN BOLT)
93210-07135-00
Unavailable
20
PLATE, BUFFLE 1
2GH-15123-00-00
Unavailable
22
PLATE, BUFFLE 2
1AE-15124-00-00
Unavailable
24
PLATE, BUFFLE 3
2GH-15133-00-00
Unavailable
26
WASHER, PLATE
90201-061M7-00
Unavailable
27
GASKET
4FM-13475-00-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
Unavailable
29
NOZZLE
3GM-13454-00-00
Unavailable
