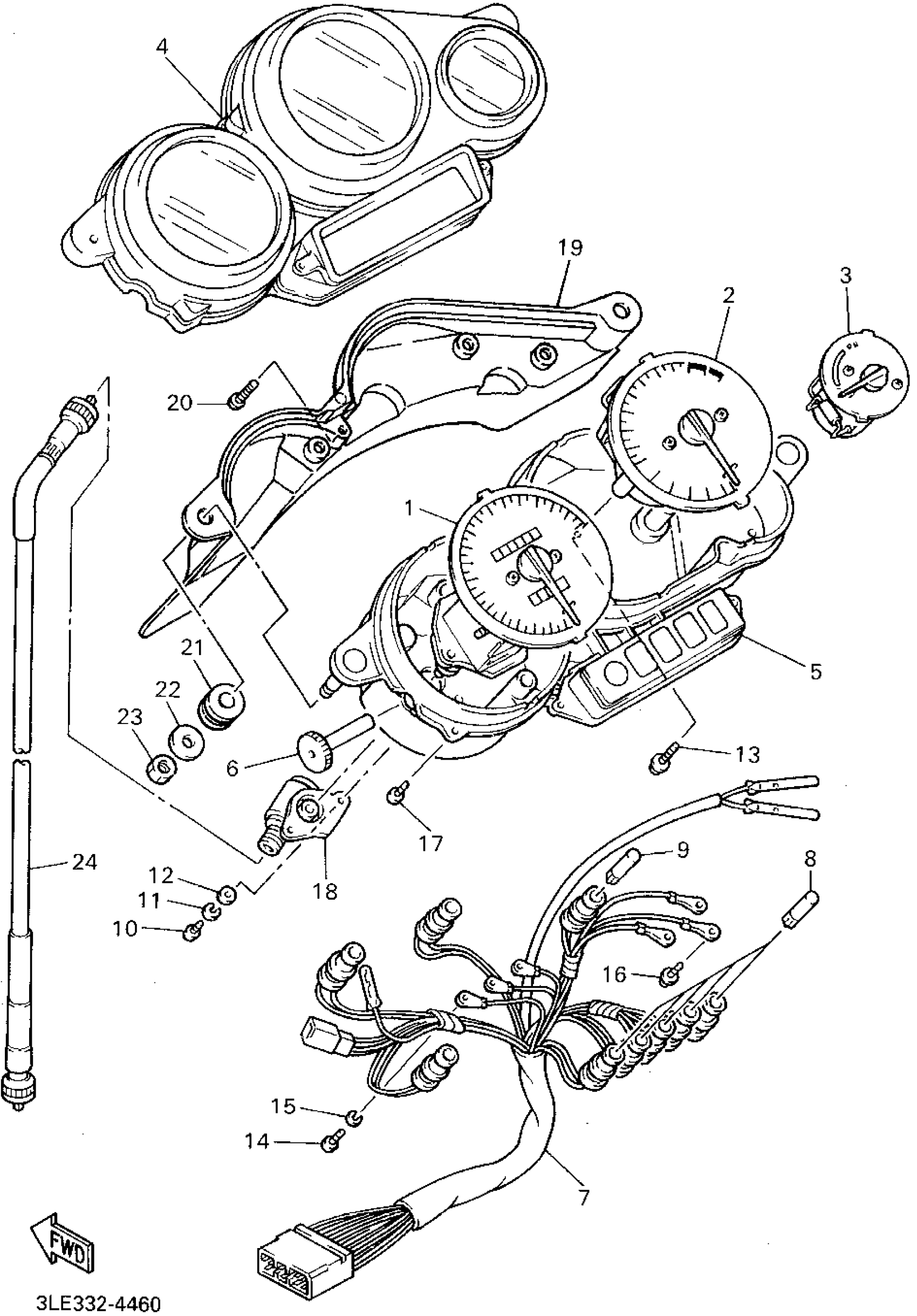

Yamaha FZR1000GC (FZR1000 CA) 1995 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

4FM-83570-10-00

Unavailable

2

TACHOMETER ASSEMBLY

3GM-83540-20-00

Unavailable

3

WATER TEMPERATURE ASSEMBLY

4FM-83590-00-00

Unavailable

4

COVER, METER

4FM-83559-00-00

Unavailable

5

CASE, INNER

4FM-8353H-60-00

Unavailable

6

KNOB, TRIP METER

2GH-83578-00-00

Unavailable

7

SOCKET CORD ASSEMBLY

3GM-83509-10-00

Unavailable

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

9

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

10

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

11

WASHER(6TA)

92907-04100-00

$8.49

12

WASHER(JF2)

92907-04600-00

$1.71

13

. SCREW, WITH WASHER

97902-04122-00

Unavailable

14

SCREW, PAN HEAD(3HH)

98507-03010-00

$3.55

15

WASHER, SPRING

92990-03100-00

$8.49

16

SCREW, WITH WASHER(36Y)

90159-03102-00

Unavailable

17

SCREW, TAPPING(71E)

90164-04023-00

Unavailable

18

SOCKET CORD ASSY

4FM-83520-00-00

Unavailable

19

COVER, METER

3GM-87278-A0-00

Unavailable

20

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

21

GROMMET(3GM)

90480-14585-00

Unavailable

22

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

23

NUT(6TA)

95317-06600-00

Unavailable

24

SPEEDOMETER CABLE ASSY

4FM-83550-02-00

Unavailable
