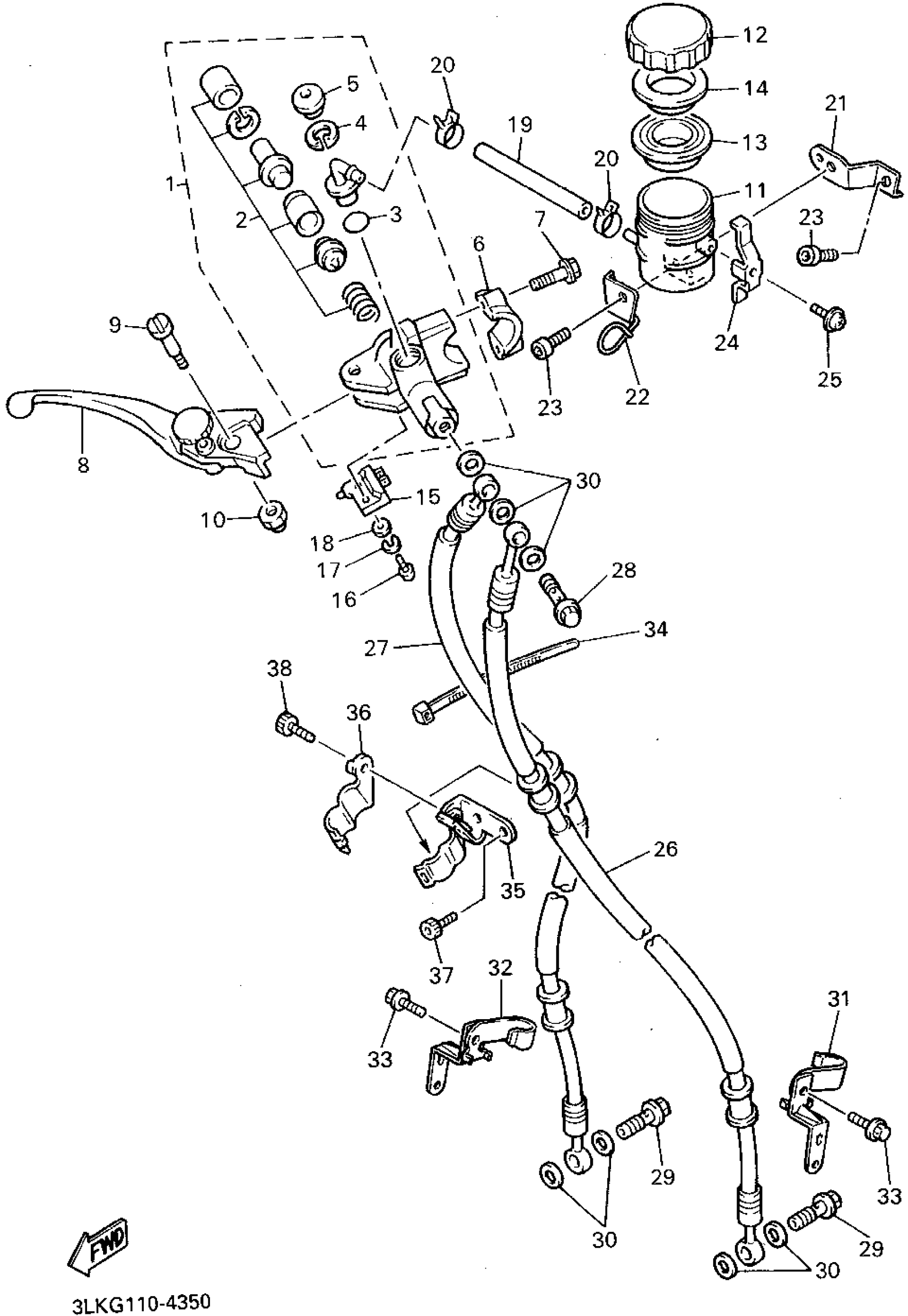

Yamaha FZR1000GC (FZR1000 CA) 1995 FRONT MASTER CYLINDER 1 Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSEMBLY

3GM-W2587-50-00

Unavailable

2

. CYLINDER KIT, MASTER

3GM-W0041-50-00

Unavailable

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

COVER, DUST

3FV-2589A-00-00

$20.99

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT, SMALL FLANGE

95027-06025-00

$4.16

8

LEVER 2

3GM-83922-51-00

Unavailable

9

BOLT, LEVER

3FV-2589F-00-00

$16.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

TANK, RESERVOIR

3FV-25894-00-00

$60.99

12

CAP, RESERVOIR

3GM-25852-50-00

$29.99

13

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

$27.99

14

BUSHING, DIAPHRAGM

2J2-25855-50-00

$5.49

15

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

16

SCREW, PAN HEAD

98517-04012-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

HOSE

3GM-2585F-00-00

Unavailable

20

CLIP, PIPE 1

3PA-24356-00-00

Unavailable

21

STAY

3GM-26292-50-00

Unavailable

22

GUIDE, CABLE 1

3GM-26131-00-00

Unavailable

23

BOLT,SOCKET

91317-06012-00

Unavailable

24

HOLDER

3FV-2589G-00-00

Unavailable

25

SCREW, WITH WASHER

3GM-2589H-00-00

Unavailable

26

HOSE, BRAKE 1

3GM-25872-A0-00

Unavailable

27

HOSE, BRAKE 2

3GM-25873-A0-00

Unavailable

28

BOLT, UNION

90401-10038-00

Unavailable

29

BOLT, UNION(3GM)

90401-10159-00

Unavailable

30

WASHER, PLATE(481)

90201-10118-00

Unavailable

31

HOLDER, BRAKE HOSE 1

3LK-25875-52-00

Unavailable

32

HOLDER,BRAKE HOSE2

3LK-25876-52-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

Unavailable

34

BAND

3MA-82591-00-00

Unavailable

35

BRACKET, HORN

3GM-23377-00-00

Unavailable

36

BRACKET

3GM-23378-00-00

Unavailable

37

BOLT,SOCKET

91317-06012-00

Unavailable

38

BOLT,SOCKET

91317-06010-00

Unavailable
