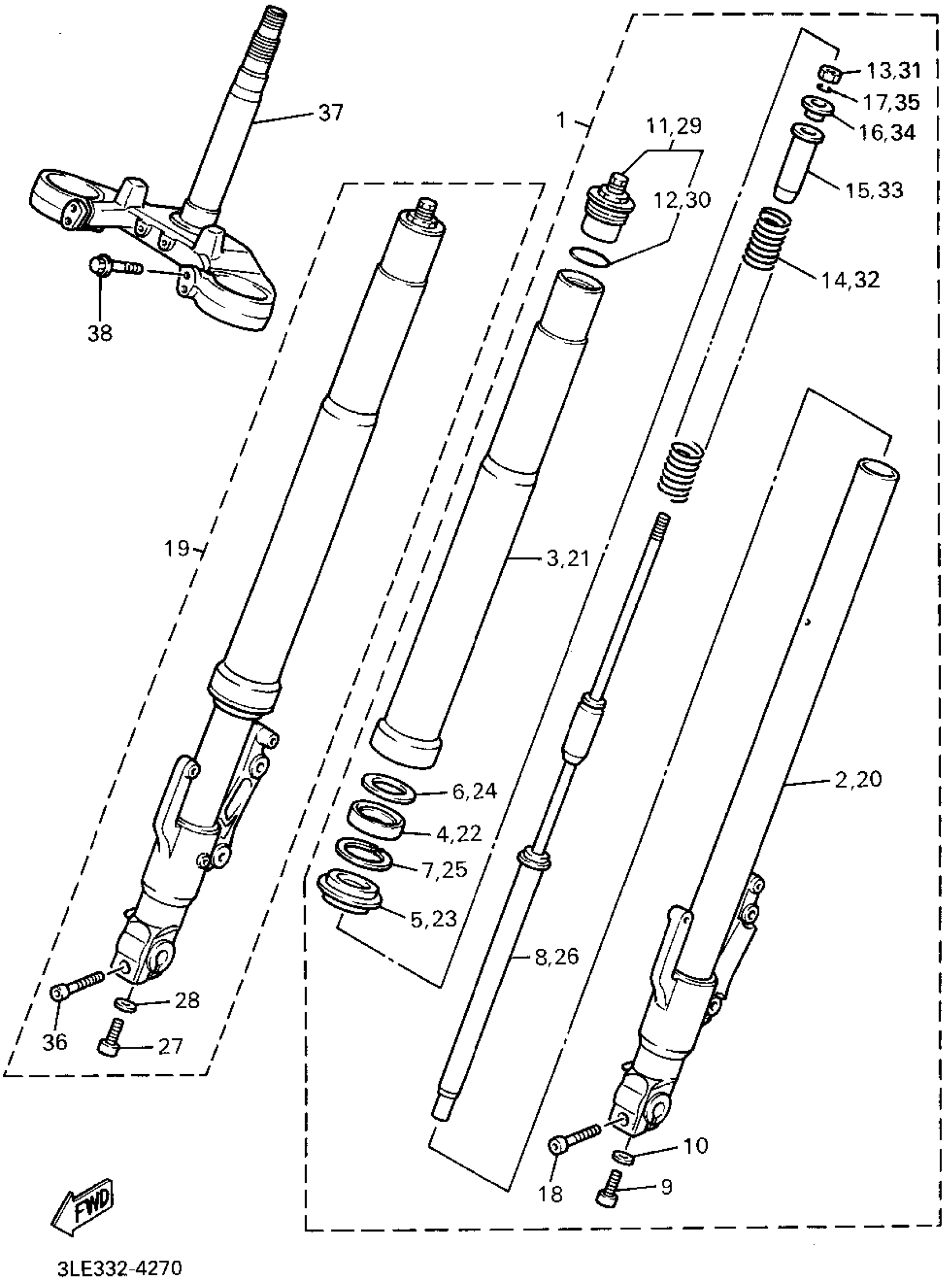

Yamaha FZR1000GC (FZR1000 CA) 1995 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (LH)

3GM-23102-A0-00

Unavailable

2

. INNER TUBE COMP1

3GM-23110-A0-00

Unavailable

3

. OUTER TUBE COMP (LH)

3GM-23106-A0-00

Unavailable

4

OIL SEAL

5VU-23145-00-00

$29.99

5

SEAL, DUST

3VD-23144-00-00

$27.99

6

GUIDE, COVER UPPER

3VD-23115-00-00

$11.99

7

. CIRCLIP

93450-52134-00

Unavailable

8

. CYLINDER COMP, FRONT FORK

3GM-23170-A0-00

Unavailable

9

BOLT,SOCKET

91314-10025-00

$8.49

10

GASKET (5R6)

90430-10171-00

$3.18

11

. BOLT, CAP

3GM-23111-A0-00

Unavailable

12

.. O-RING

93210-16N52-00

Unavailable

13

NUT(6TD)

95337-10600-00

$9.49

14

. SPRING, FRONT FORK

3GM-23141-A0-00

Unavailable

15

. GUIDE, SPRING

3GM-23117-A0-00

Unavailable

16

. SEAT, SPRING

3GM-2331K-A0-00

Unavailable

17

. RING, SNAP

3GM-23153-A0-00

Unavailable

18

BOLT,SOCKET

91314-08040-00

Unavailable

19

FRONT FORK ASSEMBLY (RH)

3GM-23103-A0-00

Unavailable

20

. INNER TUBE COMP2

3GM-23120-A0-00

Unavailable

21

. OUTER TUBE COMP (LH)

3GM-23106-A0-00

Unavailable

22

OIL SEAL

5VU-23145-00-00

$29.99

23

SEAL, DUST

3VD-23144-00-00

$27.99

24

GUIDE, COVER UPPER

3VD-23115-00-00

$11.99

25

. CIRCLIP

93450-52134-00

Unavailable

26

. CYLINDER COMP, FRONT FORK

3GM-23170-A0-00

Unavailable

27

BOLT,SOCKET

91314-10025-00

$8.49

28

GASKET (5R6)

90430-10171-00

$3.18

29

. BOLT, CAP

3GM-23111-A0-00

Unavailable

30

.. O-RING

93210-16N52-00

Unavailable

31

NUT(6TD)

95337-10600-00

$9.49

32

. SPRING, FRONT FORK

3GM-23141-A0-00

Unavailable

33

. GUIDE, SPRING

3GM-23117-A0-00

Unavailable

34

. SEAT, SPRING

3GM-2331K-A0-00

Unavailable

35

. RING, SNAP

3GM-23153-A0-00

Unavailable

36

BOLT,SOCKET

91314-08040-00

Unavailable

37

UNDER BRACKET COMP.

3GM-23340-A0-00

Unavailable

38

BOLT, FLANGE

95817-08035-00

Unavailable
