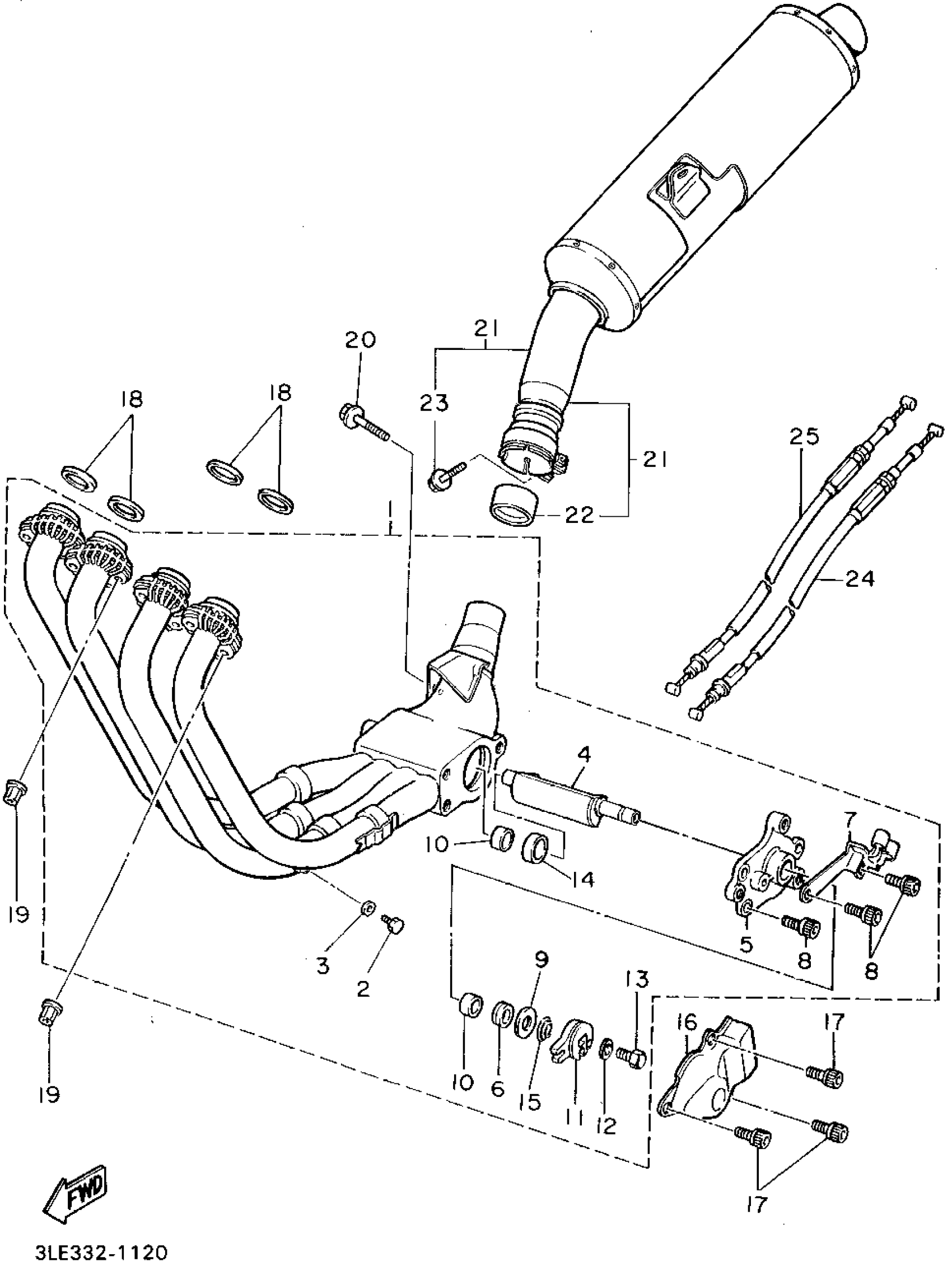

Yamaha FZR1000GC (FZR1000 CA) 1995 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

3GM-14610-01-00

Unavailable

2

BOLT (11T)

90101-06576-00

$8.49

3

WASHER(6TA)

92907-06600-00

$2.72

4

ARM, SHAFT 1

3GM-14821-01-00

Unavailable

5

HOUSING

5JJ-14811-00-00

Unavailable

6

. DUST SEAL ASSEMBLY

2TK-14845-00-00

Unavailable

7

. BRACKET

2TK-14867-01-00

Unavailable

8

BOLT, WITH WASHER(1FK)

90119-06115-00

$4.19

9

WASHER, PLATE(3GM)

90201-106M5-00

$10.49

10

BUSH, SOLID

90380-10003-00

Unavailable

11

PULLEY

2TK-14865-01-00

Unavailable

12

. WASHER, PLAIN

92990-05200-00

Unavailable

13

BOLT, HEXAGON

97095-05012-00

$1.11

14

COLLAR(3FH)

90387-106U7-00

Unavailable

15

SPRING, HOOK

5PW-14683-00-00

$7.99

16

PROTECTOR,EXHAUST

4HD-14826-00-00

Unavailable

17

BOLT, WITH WASHER(2TK)

90119-06187-00

Unavailable

18

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable

19

NUT (22U)

90179-08410-00

Unavailable

20

BOLT, FLANGE

95817-08035-00

Unavailable

21

MUFFLER ASY L

3LK-14710-70-00

Unavailable

22

. GASKET, SILENCER

3HE-14755-00-00

Unavailable

23

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

24

CABLE, PULLEY 1

3GM-1133E-51-00

Unavailable

25

CABLE, PULLEY 2

3GM-1133F-51-00

Unavailable
