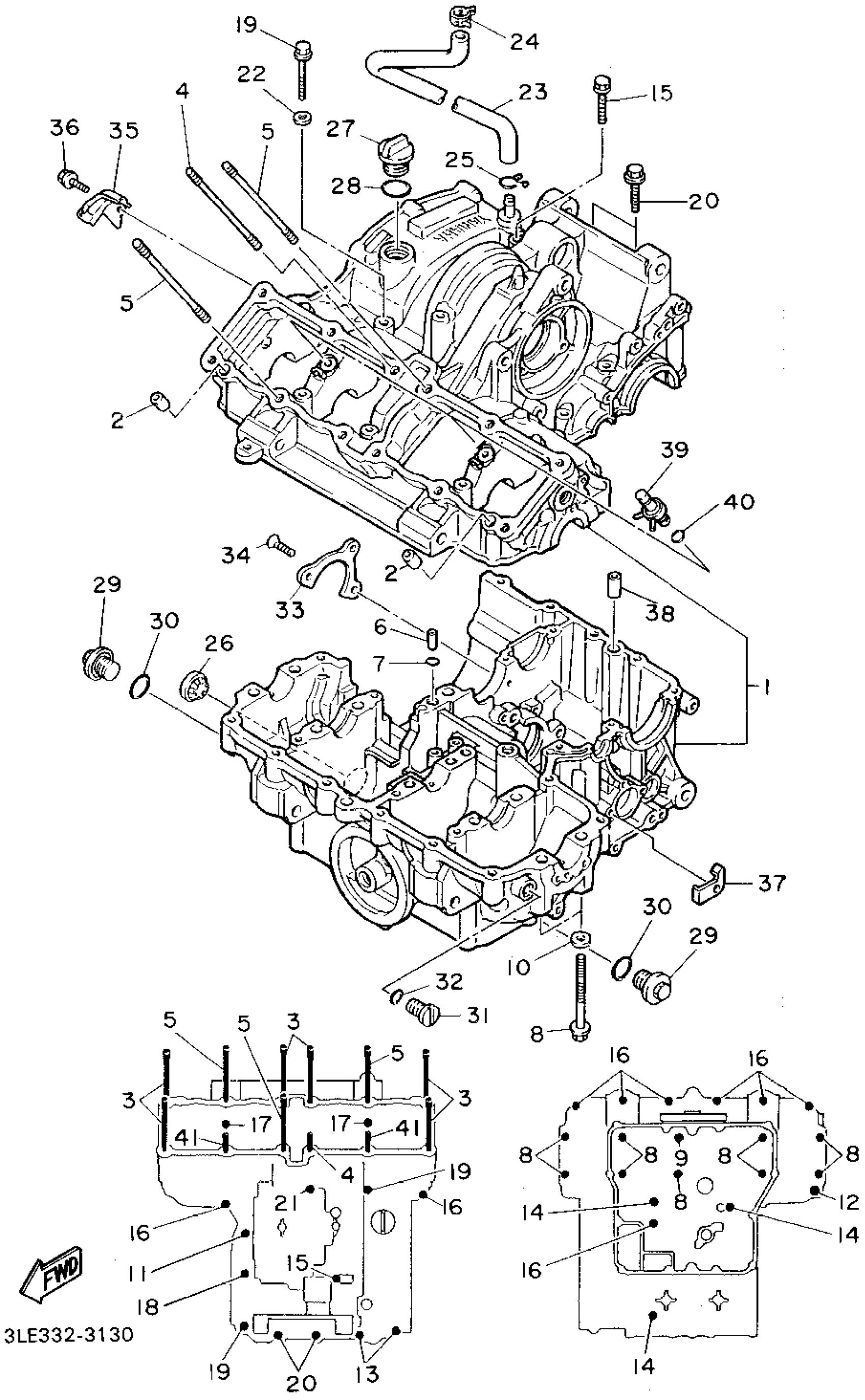

Yamaha FZR1000GC (FZR1000 CA) 1995 CRANKCASE Diagram
#
1
CRANKCASE ASSY
3GM-15100-55-00
Unavailable
3
BOLT, STUD
90116-10532-00
Unavailable
4
BOLT, STUD
90116-10531-00
Unavailable
5
BOLT, STUD (4BH)
90116-10576-00
Unavailable
8
BOLT, WASHER BASED
90105-09373-00
Unavailable
9
BOLT, WASHER BASED
90105-09580-00
Unavailable
15
BOLT, FLANGE
95817-06140-00
Unavailable
17
BOLT, FLANGE
95817-08055-00
Unavailable
18
BOLT, WASHER BASED
90105-084A1-00
Unavailable
19
BOLT, FLANGE
95817-08090-00
Unavailable
20
BOLT, FLANGE
95817-08060-00
Unavailable
21
BOLT, WASHER BASED(3KT)
90105-09555-00
Unavailable
22
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
23
PIPE, BREATHER 1
1AE-11166-00-00
Unavailable
24
CLIP (4X7)
90467-15054-00
Unavailable
25
CLIP (371)
90467-14015-00
Unavailable
26
GAUGE, LEVEL
2H7-15361-00-00
Unavailable
27
PLUG, OIL
3FV-15363-00-00
Unavailable
28
O-RING(1KT)
93210-27778-00
Unavailable
29
PLUG
4H7-15189-00-00
Unavailable
30
O-RING (25G)
93210-20573-00
Unavailable
31
PLUG, STRAIGHT SCREW (5H0)
90340-14068-00
Unavailable
32
O-RING (2H9)
93210-14369-00
Unavailable
33
PLATE, BEARING COVER
1AE-15383-00-00
Unavailable
34
SCREW, COUNTERSUNK (4H7)
90151-06014-00
Unavailable
35
CLAMP
90462-08184-00
Unavailable
36
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
37
CLAMP
90462-08158-00
Unavailable
38
PIN, DOWEL
99530-12016-00
Unavailable
39
NOZZLE ASSEMBLY
2TK-15105-00-00
Unavailable
40
O-RING (26H)
93210-06632-00
Unavailable
41
BOLT, STUD
90116-10532-00
Unavailable
