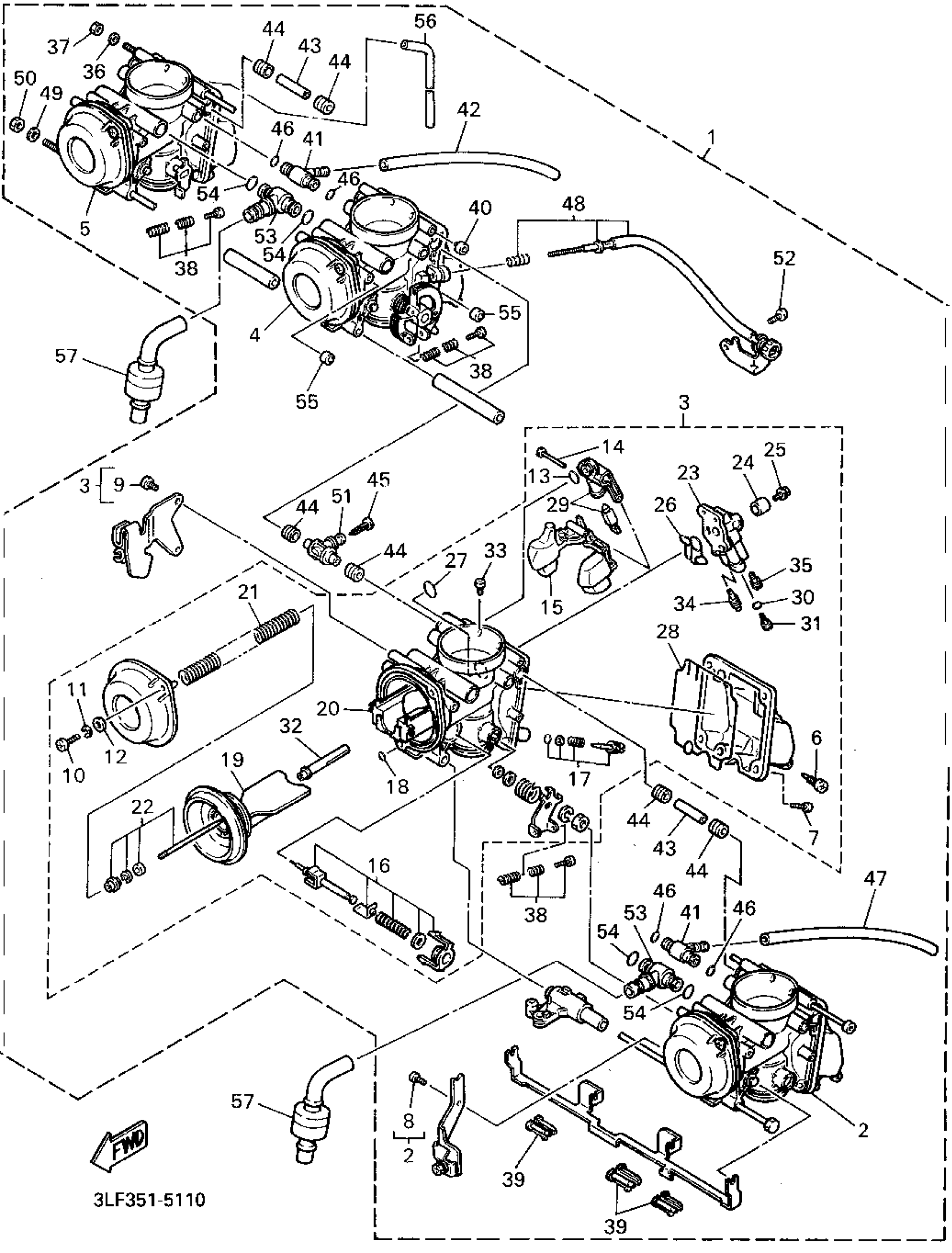

Yamaha FZR1000GC (FZR1000 CA) 1995 ALTERNATE CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY

3GM-14900-01-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

3GM-14901-01-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

3GM-14902-01-00

Unavailable

4

. CARBURETOR ASSEMBLY 3

3GM-14903-01-00

Unavailable

5

. CARBURETOR ASSEMBLY 4

3GM-14904-01-00

Unavailable

6

PLUG, DRAIN

12R-14191-00-00

$16.49

7

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

SCREW, PAN HEAD

90157-05M19-00

Unavailable

11

WASHER(3SX)

92907-05100-00

$8.49

12

WASHER(1RW)

92907-05600-00

$3.78

13

O-RING

3EN-14147-00-00

Unavailable

14

PIN, FLOAT

53L-14186-00-00

$4.73

15

FLOAT

3GM-14985-00-00

Unavailable

16

STARTER SET

3EN-1410A-01-00

Unavailable

17

PILOT SCREW SET

12R-14105-00-00

Unavailable

18

O-RING

3FV-14147-00-00

Unavailable

19

DIAPHRAGM ASSY

3GM-14940-00-00

Unavailable

20

. BLOCK, JET

3GM-1411E-00-00

Unavailable

21

. SPRING, DIAPHRAGM

3FV-14933-00-00

Unavailable

22

.. NEEDLE SET

3GM-1490J-00-00

Unavailable

23

. BLOCK JET ASSEMBLY

3GM-1411A-00-00

Unavailable

24

. WASHER, MAIN JET

3GM-14153-00-00

Unavailable

25

SCREW

1HX-14565-00-00

Unavailable

26

O-RING

3LF-14147-00-00

Unavailable

27

O-RING

1AE-14147-00-00

Unavailable

28

SEAL

3GM-14997-00-00

Unavailable

29

NEEDLE VALVE SET

3GM-14107-17-00

Unavailable

30

O-RING

1AE-14227-00-00

Unavailable

31

JET, MAIN (#125)

3G2-14231-25-00

Unavailable

31

JET,MAIN #122.5

3G2-1423A-75-A1

Unavailable

32

NOZZLE, MAIN

3GM-14141-90-00

Unavailable

33

JET, MAIN (#115)

830-14231-23-00

Unavailable

34

JET, PILOT (# 40)

4G0-14142-40-00

Unavailable

35

JET, MAIN (# 60)

3G2-14231-12-00

Unavailable

36

WASHER, PLAIN (646)

92990-05600-00

Unavailable

37

NUT, HEXAGON (663)

95380-05600-00

Unavailable

38

STOP SCREW SET

4KM-1490K-00-00

Unavailable

39

HOLDER

3EN-14261-00-00

Unavailable

40

RING

3GM-14918-00-00

Unavailable

41

NIPPLE

17A-14251-00-00

Unavailable

42

HOSE

50H-14987-00-00

Unavailable

43

PIPE, STARTER CONNECTING

3GM-14988-00-00

Unavailable

44

SEAL

3EN-14997-00-00

Unavailable

45

NET, FILTER

1KT-14994-00-00

Unavailable

46

O-RING

36Y-14147-00-00

Unavailable

47

PIPE

3GM-14197-00-00

Unavailable

48

THROTTLE SCREW SET

3GM-14103-00-00

Unavailable

49

WASHER, PLAIN (646)

92990-06600-00

Unavailable

50

NUT, U FLANGE

95604-06200-00

Unavailable

51

PIPE, STARTER CONNECTING

3EN-14988-00-00

Unavailable

52

SCREW, PAN HEAD (7G3)

98580-05008-00

Unavailable

53

NIPPLE

3GM-14251-00-00

Unavailable

54

O-RING

3LK-14147-00-00

Unavailable

55

ROD

3GM-14992-00-00

Unavailable

56

PIPE

3JE-14197-00-00

Unavailable

57

PIPE

3GM-14196-00-00

Unavailable
