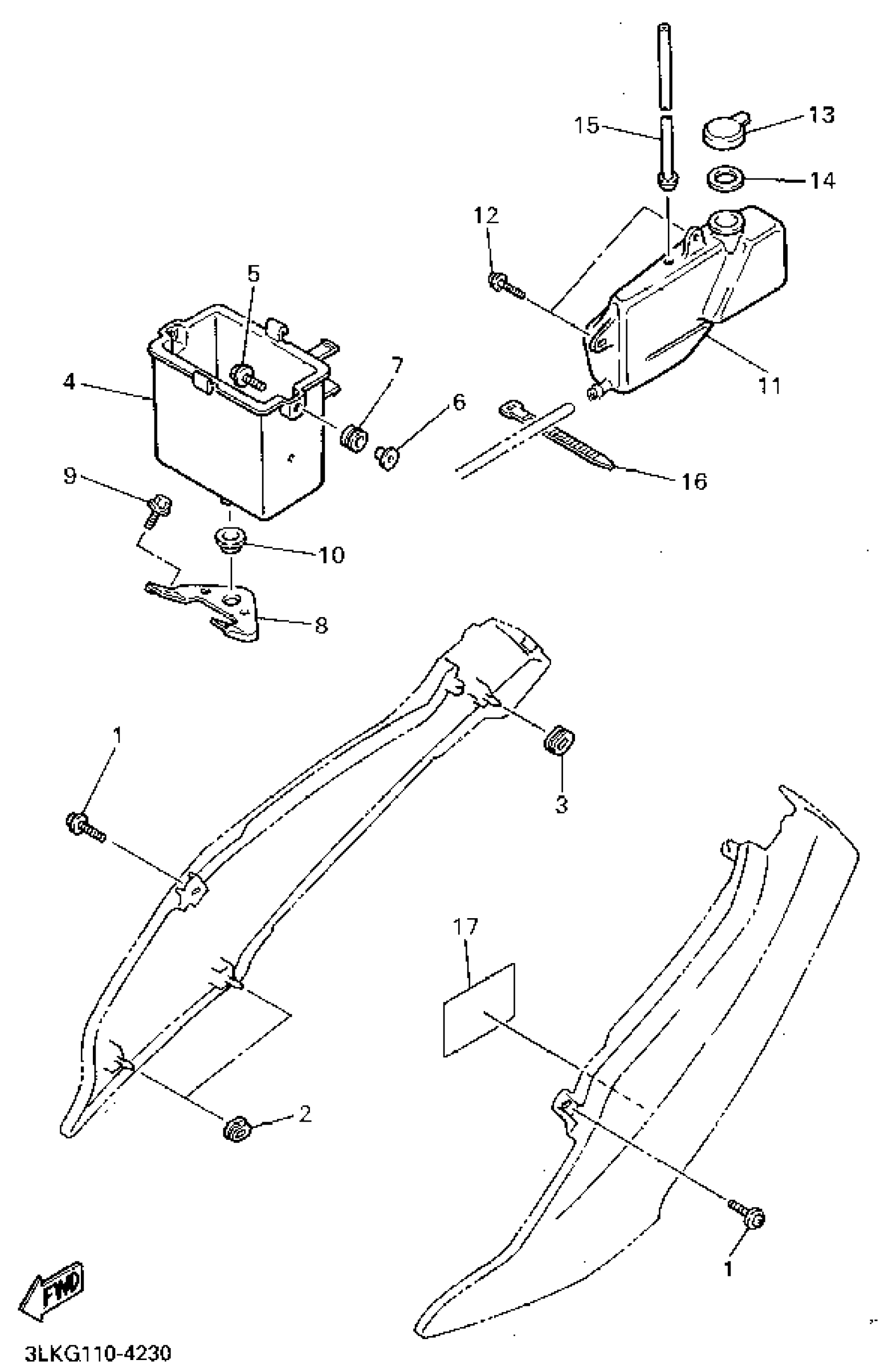

Yamaha FZR1000FC (FZR1000 CA) 1994 SIDE COVER 2 Diagram

#

Description
Price

1

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

2

GROMMET(41Y)

90480-01401-00

$8.49

3

GROMMET

90480-22084-00

$7.49

4

BOX, BATTERY

3GM-2177G-50-00

Unavailable

5

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

6

COLLAR (838-84757-00)

90387-06024-00

$11.49

7

GROMMET (1E6)

90480-15058-00

$8.49

8

BRACKET

3GM-21249-50-00

Unavailable

9

BOLT, FLANGE

95817-06012-00

$1.43

10

GROMMET (31A)

90480-22362-00

$7.49

11

TANK, RECOVERY

3GM-21871-50-00

Unavailable

12

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

13

CAP

1AA-21815-00-00

$12.99

14

GASKET

1AA-21874-00-00

$7.99

15

PIPE, OVERFLOW (L1400)

4BH-21877-00-00

Unavailable

16

BAND, SWITCH CORD

437-83936-11-00

Unavailable

17

PLATE, EPA 2

3LK-2179R-50-00

Unavailable

17

PLATE, EPA 1

3LK-2179V-50-00

Unavailable
