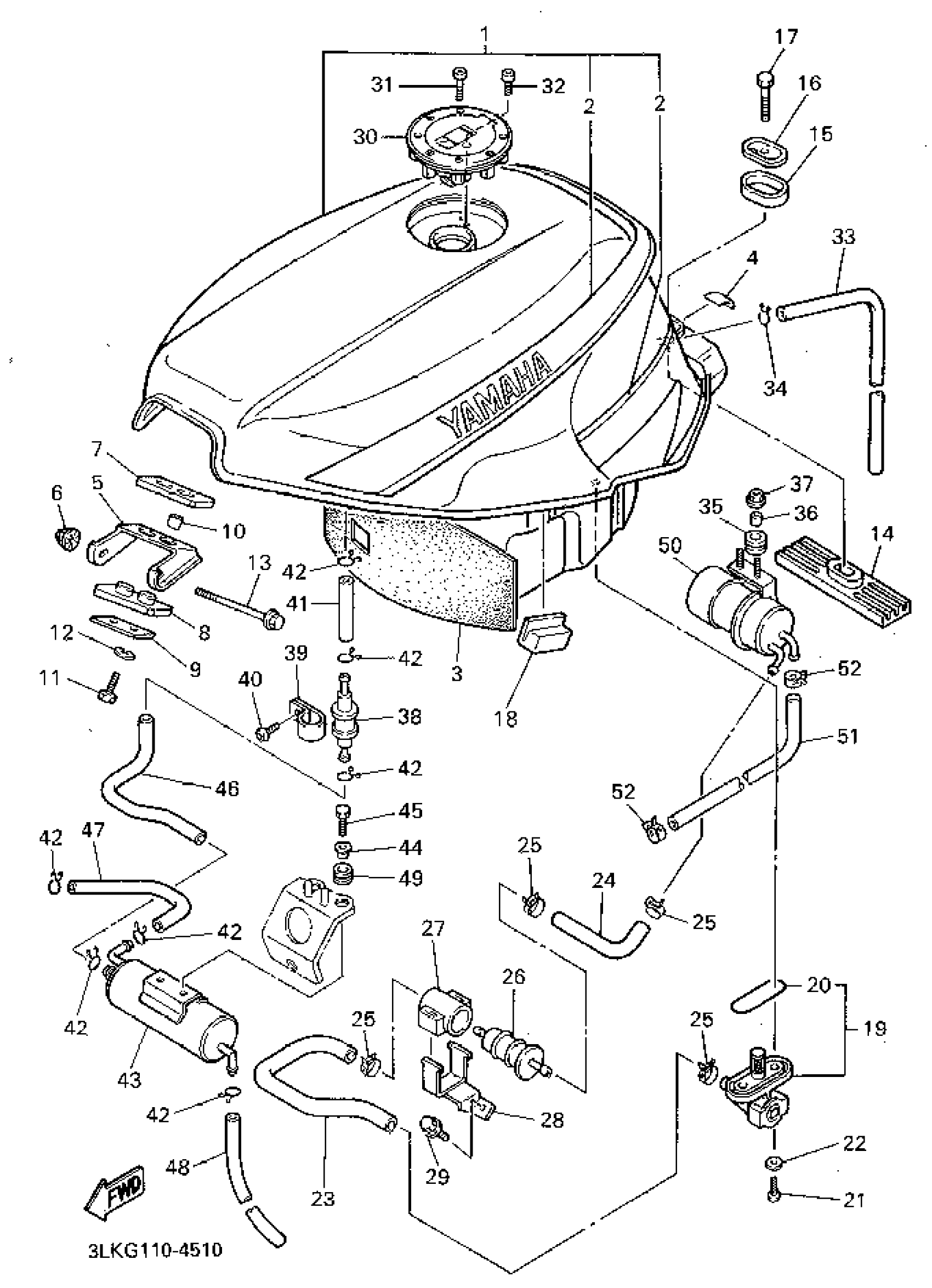

Yamaha FZR1000FC (FZR1000 CA) 1994 FUEL TANK CALIFORNIA ONLY Diagram

#

Description

Price

1

FUEL TANK COMP.

3LK-24110-01-W4

Unavailable

2

. GRAPHIC SET

3LE-24240-10-00

Unavailable

3

DAMPER, PLATE 2

3LK-2414J-00-00

Unavailable

4

SEAL 1

2GH-21732-00-00

Unavailable

5

BRACKET, FUEL TANK 1

2GH-24191-00-00

Unavailable

6

NUT (J17)

95380-06800-00

$8.49

7

DAMPER, LOCATING 1

2GH-24181-00-00

Unavailable

8

DAMPER, LOCATING 3

2GH-24183-00-00

Unavailable

9

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

10

COLLAR (1M1)

90387-06553-00

$9.49

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BOLT,FLANGE (3GM)

95814-06075-00

Unavailable

14

DAMPER, LOCATING 4

2GH-24184-00-00

Unavailable

15

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

16

WASHER, SPECIAL

2GH-24187-00-00

Unavailable

17

BOLT, HEXAGON

97017-08030-00

Unavailable

18

DAMPER,LOCATING 2

3GM-24182-01-00

Unavailable

19

FUEL COCK ASSY 1

26H-24500-00-00

Unavailable

20

GASKET, BODY

214-24512-00-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

PIPE, FUEL 1

3GM-24311-01-00

Unavailable

24

PIPE 2

3GM-24312-00-00

Unavailable

25

CLIP(3GM)

90467-12124-00

Unavailable

26

FILTER ASSY

1FK-24560-10-00

Unavailable

27

BRACKET, FILTER

1FK-24566-00-00

Unavailable

28

CLAMP 2

3GM-24136-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable

30

CAP ASSY

4HM-24602-01-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

32

BOLT, SOCKET

91314-05010-00

Unavailable

33

HOSE

90445-11M78-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable

35

GROMMET (1E5)

90480-13163-00

Unavailable

36

COLLAR(42G)

90387-062L2-00

Unavailable

37

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

38

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

39

CLAMP

90464-15014-00

Unavailable

40

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

41

HOSE

90445-11734-00

Unavailable

42

CLIP

90467-100A1-00

Unavailable

43

CANISTER ASSY

3LK-24170-00-00

Unavailable

44

COLLAR(42G)

90387-062L2-00

Unavailable

45

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

46

PIPE, FUEL 1

3LK-24311-01-00

Unavailable

47

PIPE 3

3LK-24313-00-00

Unavailable

48

HOSE (L370)

90445-112E1-00

Unavailable

49

GROMMET (1E5)

90480-13163-00

Unavailable

50

FUEL PUMP COMP.

3GM-13907-00-00

Unavailable

51

HOSE

3GM-14294-00-00

Unavailable

52

CLIP(3YX)

90467-13133-00

Unavailable
