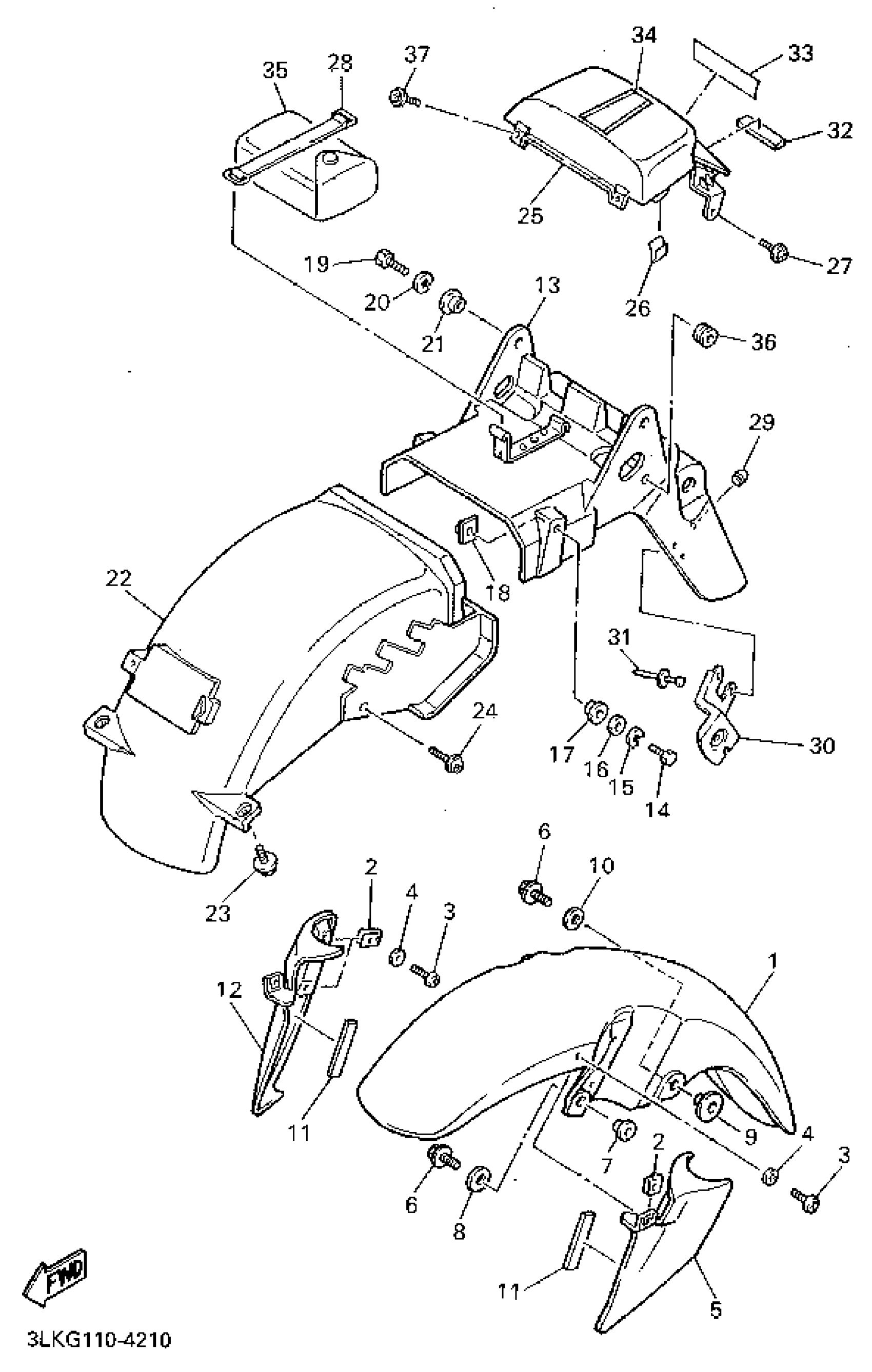

Yamaha FZR1000FC (FZR1000 CA) 1994 FENDER Diagram

#

Description
Price

1

FENDER,FRONT

3GM-21511-51-P2

Unavailable

2

NUT, SPRING(3GM)

90183-05061-00

$5.60

3

SCREW, BIND(3XC)

98904-05012-00

$1.71

4

. WASHER, PLATE

90202-05088-00

Unavailable

5

FENDER, OVER

3GM-21551-A0-P2

Unavailable

6

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

7

COLLAR (8G8)

90387-06648-00

$8.49

8

WASHER, PLATE

90202-11221-00

Unavailable

9

COLLAR

90387-0604T-00

Unavailable

10

DAMPER

4FM-28372-00-00

$6.99

11

DAMPER

1FK-21746-00-00

$6.99

12

FENDER, OVER 2

3GM-21555-A0-P2

Unavailable

13

REAR FENDER COMP.

3LK-W2161-51-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

COLLAR(47X)

90387-061M0-00

Unavailable

18

PLATE

31A-14477-10-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

COLLAR (8G8)

90387-06648-00

$8.49

22

GUARD, MUD

3GM-21629-50-00

Unavailable

23

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

24

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

25

COVER, REAR FENDER

3GM-21651-50-P2

Unavailable

26

SEAL 1

2GH-21732-00-00

Unavailable

27

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

28

BAND, BATTERY

26L-82131-00-00

Unavailable

29

PLUG

90338-07018-00

Unavailable

30

BRACKET, REFLECTOR 1

47M-85132-00-00

Unavailable

31

RIVET (813)

90267-32070-00

Unavailable

32

DAMPER 1

1RK-22483-00-00

Unavailable

33

EMBLEM, YAMAHA

99247-00080-00

Unavailable

34

GRAPHIC, TAILCOVER

3LE-21663-10-00

Unavailable

35

TOOL KIT

3LE-28100-00-00

Unavailable

36

GROMMET

90480-10258-00

Unavailable

37

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable
