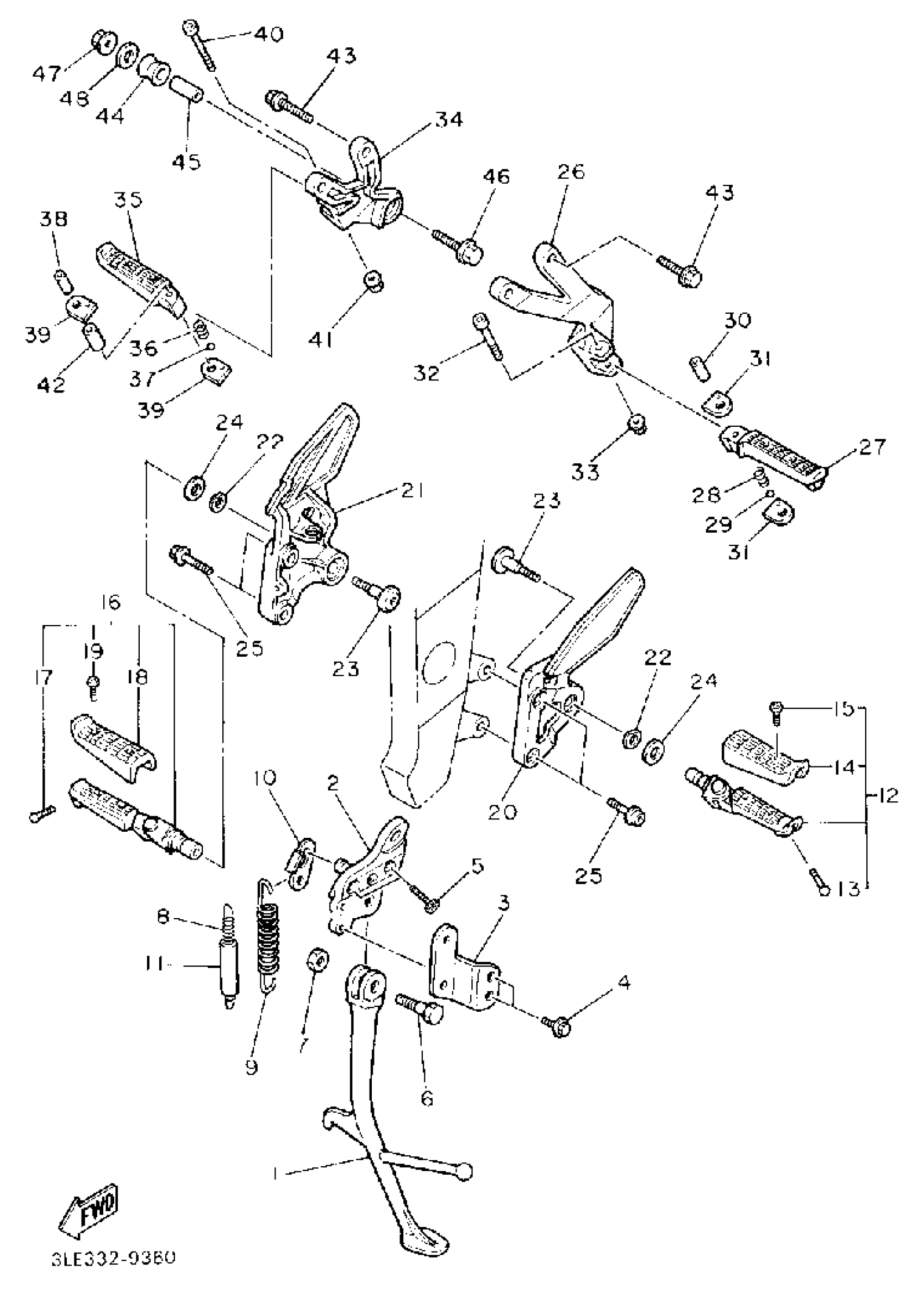

Yamaha FZR1000EC (FZR1000 CA) 1993 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

3GM-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

3GM-27321-00-00

Unavailable

3

BRACKET, SWITCH

3GM-21453-00-00

Unavailable

4

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

5

BOLT, SOCKET

91317-08030-00

$8.49

6

BOLT(2GH)

90109-104E6-00

$9.49

7

NUT, U

90185-10037-00

$9.49

8

SPRING, TENSION (4K0)

90506-18224-00

$5.60

9

SPRING, TENSION (4K0)

90506-26225-00

$11.49

10

LINK, SIDE STAND

3VD-27315-00-00

$7.99

11

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

12

FRONT FOOTREST ASSEMBLY (LEFT)

2GH-27410-00-00

Unavailable

13

BOLT

90109-08177-00

$10.49

14

COVER, FOOTREST

2GH-27413-00-00

$45.99

15

SCREW, PAN HEAD

98507-05014-00

$8.49

16

FRONT FOOTREST ASSEMBLY (RIGHT)

2GH-27420-00-00

Unavailable

17

BOLT

90109-08177-00

$10.49

18

COVER, FOOTREST

2GH-27413-00-00

$45.99

19

SCREW, PAN HEAD

98507-05014-00

$8.49

20

BRACKET 2

3GM-27442-00-00

Unavailable

21

BRACKET 3

3GM-27443-00-00

Unavailable

22

WASHER,CLAW

90214-10056-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

24

WASHER, WAVE(46X)

90206-17084-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

26

BRACKET 4

3GM-2741L-00-00

Unavailable

27

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

28

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

29

BALL

93501-04011-00

Unavailable

30

COLLAR (24R)

90387-064H8-00

Unavailable

31

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

32

BOLT, SOCKET

91314-06045-00

Unavailable

33

NUT, SELF-LOCKING

95617-06100-00

Unavailable

34

BRACKET 5

3GM-2742L-00-00

Unavailable

35

FOOTREST,REAR 2

3GM-27441-01-00

Unavailable

36

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

37

BALL

93501-04011-00

Unavailable

38

COLLAR (24R)

90387-064H8-00

Unavailable

39

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

40

BOLT, SOCKET

91314-06045-00

Unavailable

41

NUT, SELF-LOCKING

95617-06100-00

Unavailable

42

COLLAR

90387-083W8-00

Unavailable

43

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

44

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

45

COLLAR (2H7)

90387-10636-00

Unavailable

46

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

47

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

48

WASHER, PLATE (2H7)

90201-10669-00

Unavailable
