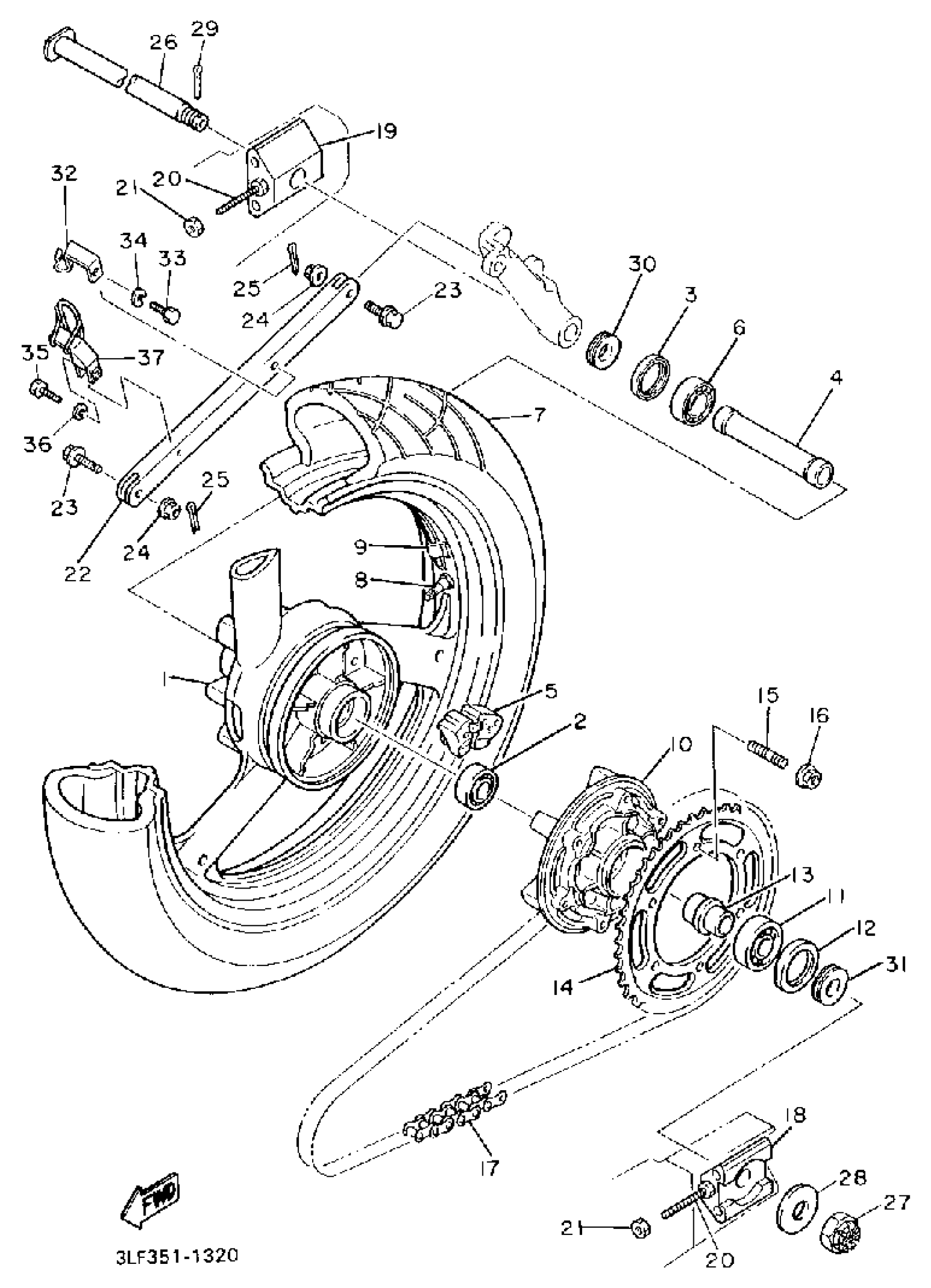

Yamaha FZR1000EC (FZR1000 CA) 1993 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

3GM-25338-01-UA

Unavailable

2

BEARING(3BC)

93306-30437-00

$66.99

3

OIL SEAL(3BC)

93106-30029-00

$15.99

4

SPACER

90560-20357-00

Unavailable

5

DAMPER

2GH-25364-00-00

$44.99

6

BEARING(3BC)

93306-30437-00

$66.99

7

TIRE (170/60 VR17 V280)

94117-173U6-00

Unavailable

8

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

BALANCER, WHEEL

5MT-25398-10-00

$17.49

9

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

10

CLUTCH, HUB

36Y-25366-01-00

Unavailable

11

BEARING(3BC)

93306-30562-00

Unavailable

12

OIL SEAL(3BC)

93106-35030-00

Unavailable

13

COLLAR, WHEEL

36Y-25377-00-00

Unavailable

14

SPROCKET, DRVN 47T

2GH-25447-22-00

Unavailable

15

BOLT, STUD(1TX)

90116-10485-00

Unavailable

16

NUT, SELF-LOCKING

90185-10170-00

Unavailable

17

CHAIN (DID532ZLVKA1-110L)(3GM)

94581-57110-00

Unavailable

17

CHAIN (DID532ZLVKA1-110L)(3GM)

94581-57110-00

Unavailable

18

PULLER, CHAIN 1

3GM-25388-00-00

Unavailable

19

PULLER, CHAIN 2

3GM-25389-00-00

Unavailable

20

BOLT(4SR)

90101-08777-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

BAR, TENSION

3GM-25371-00-00

Unavailable

23

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

24

NUT, FLANGE

95704-08500-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

AXLE, WHEEL

3GM-25381-10-00

Unavailable

27

NUT, CASTLE

90171-18051-00

Unavailable

28

WASHER, PLATE (5K7)

90201-18264-00

Unavailable

29

PIN, COTTER

91490-40045-00

Unavailable

30

COLLAR(3BC)

90387-202X9-00

Unavailable

31

COLLAR(3BC)

90387-203X0-00

Unavailable

32

HOLDER, BRAKE HOSE 2

3GM-25876-00-00

Unavailable

33

BOLT(3JP)

97017-06010-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

BOLT, HEXAGON

97017-06030-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable

37

HOLDER,BRKE HOSE 1

3GM-25875-51-00

Unavailable
