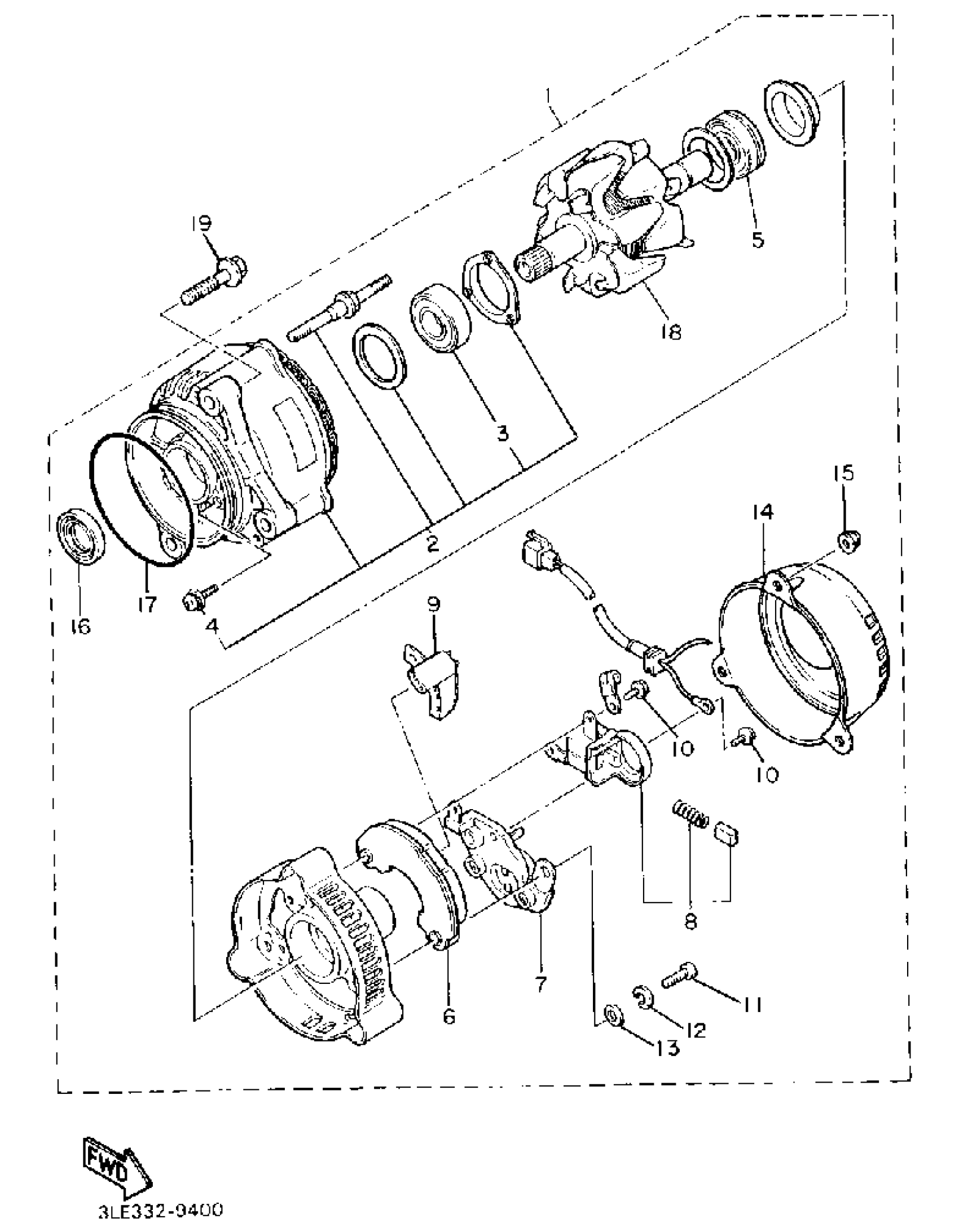

Yamaha FZR1000EC (FZR1000 CA) 1993 GENERATOR Diagram

#

Description
Price

1

A.C. GENERATOR ASSEMBLY

2GH-81600-55-00

Unavailable

2

. STATOR ASSEMBLY

3FV-81634-00-00

Unavailable

3

BEARING

4BH-81643-10-00

Unavailable

4

.. SCREW

2KT-81645-50-00

Unavailable

5

BEARING

4BH-81643-10-00

Unavailable

6

RECTIFIER ASSY

4BH-81970-00-00

Unavailable

7

VOLTAGE REGULATOR ASSY

36Y-81910-50-00

$300.99

8

BRUSH HOLDER ASSY

3FV-81619-00-00

Unavailable

9

. COVER, RECTIFIER

36Y-81972-50-00

Unavailable

10

SCREW

3FV-81645-00-00

Unavailable

11

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

WASHER, PLAIN (646)

92990-05600-00

$0.80

14

COVER ASY

2GH-81604-00-00

Unavailable

15

NUT

3FV-81675-00-00

$4.78

16

OIL SEAL

36Y-81638-50-00

Unavailable

17

O-RING

2KT-81642-50-00

Unavailable

18

. ROTOR ASSEMBLY

2GH-81660-52-00

Unavailable

19

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable
