Description

Price

1

WHEEL, CAST FRONT

3GM-25168-00-UA

Unavailable

2

SPACER(3GM)

90560-17356-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

5

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

6

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

7

OIL SEAL (45X56X6)

93105-45017-00

$14.99

8

TIRE (130/60 VR17 V280)

94113-174U1-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

BALANCER, WHEEL

5MT-25398-00-00

$17.49

10

BALANCER, WHEEL

5MT-25398-10-00

$17.49

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

GEAR UNIT ASSY

4HM-25190-20-00

Unavailable

12

AXLE, WHEEL

1HX-25381-01-00

Unavailable

13

COLLAR (1E6)

90387-17530-00

$11.49

14

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

15

PIN, COTTER

91490-30030-00

Unavailable

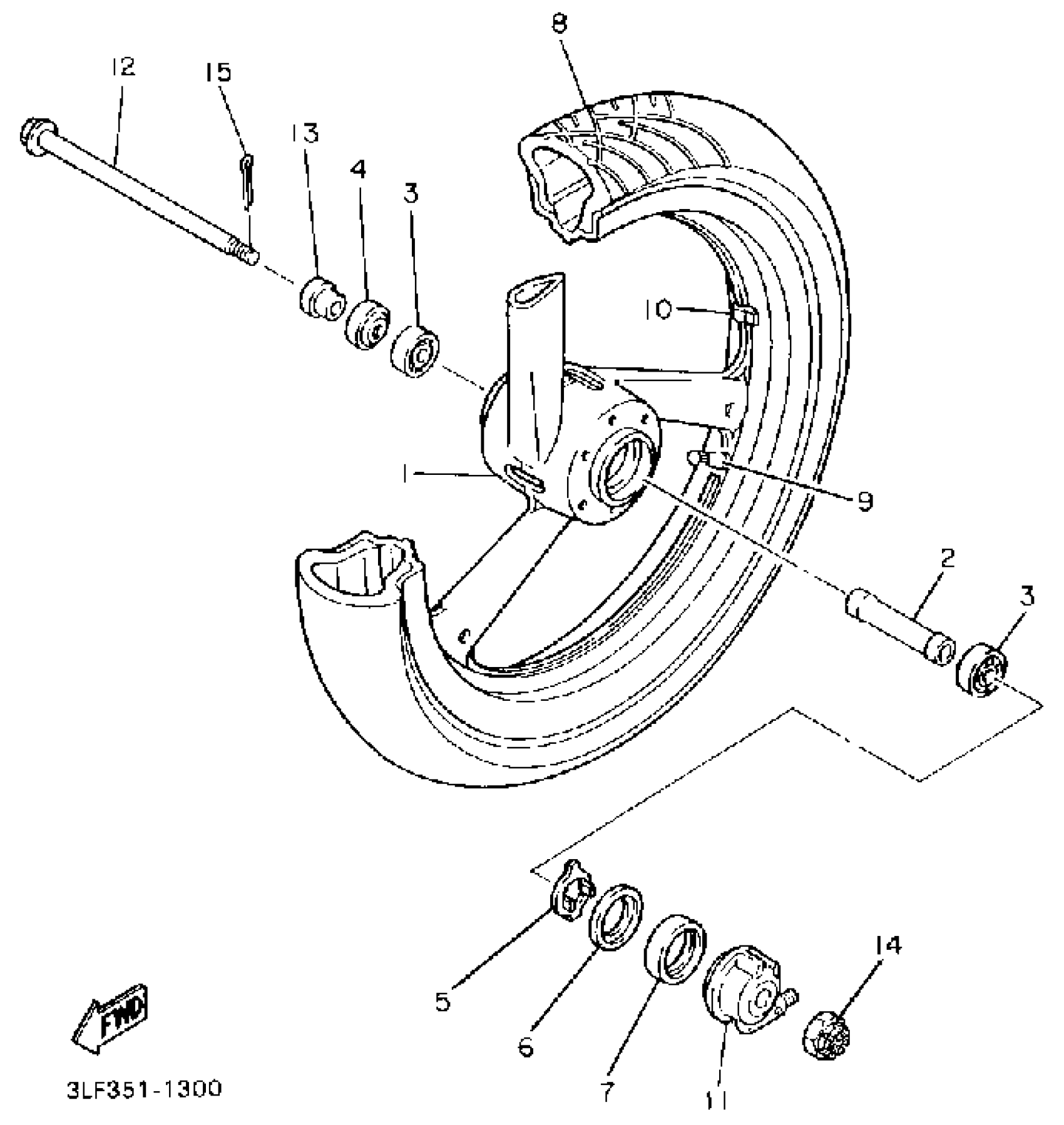

Yamaha FZR1000EC (FZR1000 CA) 1993 FRONT WHEEL Diagram

WHEEL, CAST FRONT

SPACER(3GM)

BRG,R-B 6203RS 40MM 63.3G KY

OIL SEAL (25X40X5-101)

CLUTCH, METER (371,447)

RETAINER, CLUTCH (371,447)

OIL SEAL (45X56X6)

TIRE (130/60 VR17 V280)

VALVE, RIM(2GH)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

GEAR UNIT ASSY

AXLE, WHEEL

COLLAR (1E6)

NUT, CASTLE (2H6)

PIN, COTTER
