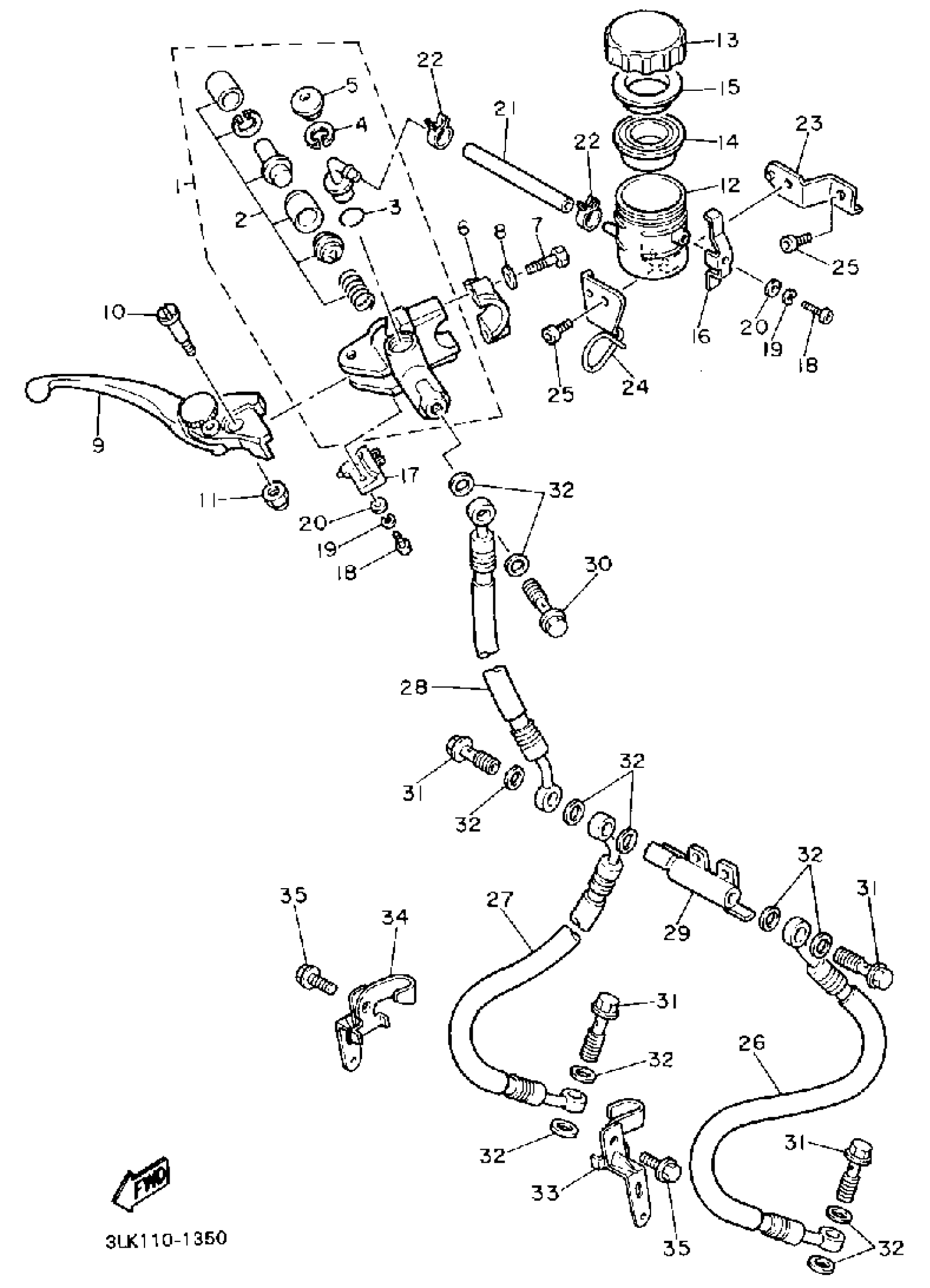

Yamaha FZR1000EC (FZR1000 CA) 1993 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSEMBLY

3GM-W2587-50-00

Unavailable

2

. CYLINDER KIT, MASTER

3GM-W0041-50-00

Unavailable

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

COVER, DUST

3FV-2589A-00-00

$20.99

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER(6TA)

92907-06600-00

$2.72

9

LEVER 2

3GM-83922-51-00

Unavailable

10

BOLT, LEVER

3FV-2589F-00-00

$16.49

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

TANK, RESERVOIR

3FV-25894-00-00

$60.99

13

CAP, RESERVOIR

3GM-25852-50-00

$29.99

14

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

$27.99

15

BUSHING, DIAPHRAGM

2J2-25855-50-00

$5.49

16

HOLDER

3FV-2589G-00-00

Unavailable

17

FRONT STOP SWITCH ASSY

4HM-83980-00-00

Unavailable

18

SCREW, PAN HEAD

98511-04012-00

Unavailable

19

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

20

WASHER, PLAIN (646)

92990-04600-00

Unavailable

21

HOSE

3GM-2585F-00-00

Unavailable

22

CLIP, PIPE 1

3PA-24356-00-00

Unavailable

23

STAY

3GM-26292-50-00

Unavailable

24

GUIDE, CABLE 1

3GM-26131-00-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

26

HOSE, BRAKE 1

3GM-25872-51-00

Unavailable

27

HOSE, BRAKE 2

3GM-25873-51-00

Unavailable

28

HOSE, BRAKE

3GM-25874-51-00

Unavailable

29

JOINT

42H-25885-01-00

Unavailable

30

BOLT, UNION

90401-10038-00

Unavailable

31

BOLT, UNION(3GM)

90401-10159-00

Unavailable

32

WASHER, PLATE(481)

90201-10118-00

Unavailable

33

HOLDER, BRAKE HOSE 1

3LK-25875-52-00

Unavailable

34

HOLDER,BRAKE HOSE2

3LK-25876-52-00

Unavailable

35

BOLT, FLANGE

95817-06012-00

Unavailable
