- Partiron
- OEM Parts
- Yamaha
- motorcycle
- 1993
- FZR1000EC (FZR1000 CA) 1993
FRONT FORK

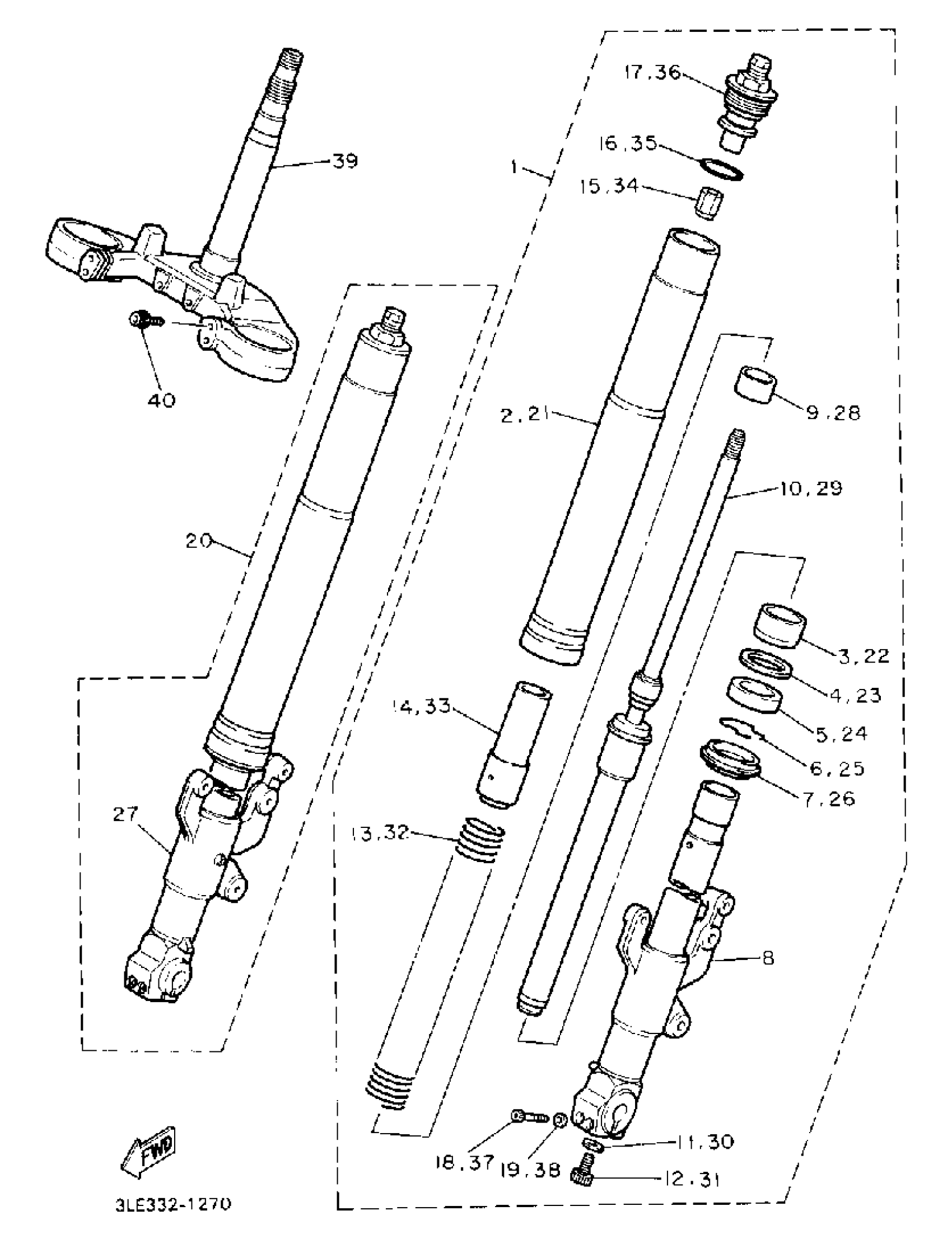

Yamaha FZR1000EC (FZR1000 CA) 1993 FRONT FORK Diagram
#
1
FRONT FORK ASY L
3GM-23102-53-00
Unavailable
2
. TUBE, OUTER 2
3GM-23136-50-00
Unavailable
3
METAL, SLIDE 1
3GM-23125-50-00
Unavailable
7
SEAL, DUST
3XV-23144-50-00
Unavailable
8
. INNER TUBE 2
3GM-23120-50-00
Unavailable
10
. CYLINDER, FRT FORKFRONT FORK
3GM-23170-52-00
Unavailable
12
BOLT
3R4-23181-L0-00
Unavailable
13
. SPRING, FRONT FORK
3GM-23141-51-00
Unavailable
14
. SPACER
3GM-23118-51-00
Unavailable
16
O-RING
3SP-23147-M0-00
Unavailable
17
. BOLT, CAP
3GM-23111-50-00
Unavailable
18
BOLT,SOCKET
91314-08040-00
Unavailable
19
WASHER PLATE 141181390000
90201-08085-00
Unavailable
20
FRONT FORK ASY R
3GM-23103-53-00
Unavailable
21
. TUBE, OUTER 2
3GM-23136-50-00
Unavailable
22
METAL, SLIDE 1
3GM-23125-50-00
Unavailable
26
SEAL, DUST
3XV-23144-50-00
Unavailable
27
. INNER TUBE 1
3GM-23110-50-00
Unavailable
29
. CYLINDER, FRT FORKFRONT FORK
3GM-23170-52-00
Unavailable
31
BOLT
3R4-23181-L0-00
Unavailable
32
. SPRING, FRONT FORK
3GM-23141-51-00
Unavailable
33
. SPACER
3GM-23118-51-00
Unavailable
35
O-RING
3SP-23147-M0-00
Unavailable
36
. BOLT, CAP
3GM-23111-50-00
Unavailable
37
BOLT,SOCKET
91314-08040-00
Unavailable
38
WASHER PLATE 141181390000
90201-08085-00
Unavailable
39
UNDER BRACKET
3GM-23340-50-00
Unavailable
40
BOLT, FLANGE(4FM)
95814-08035-00
Unavailable
