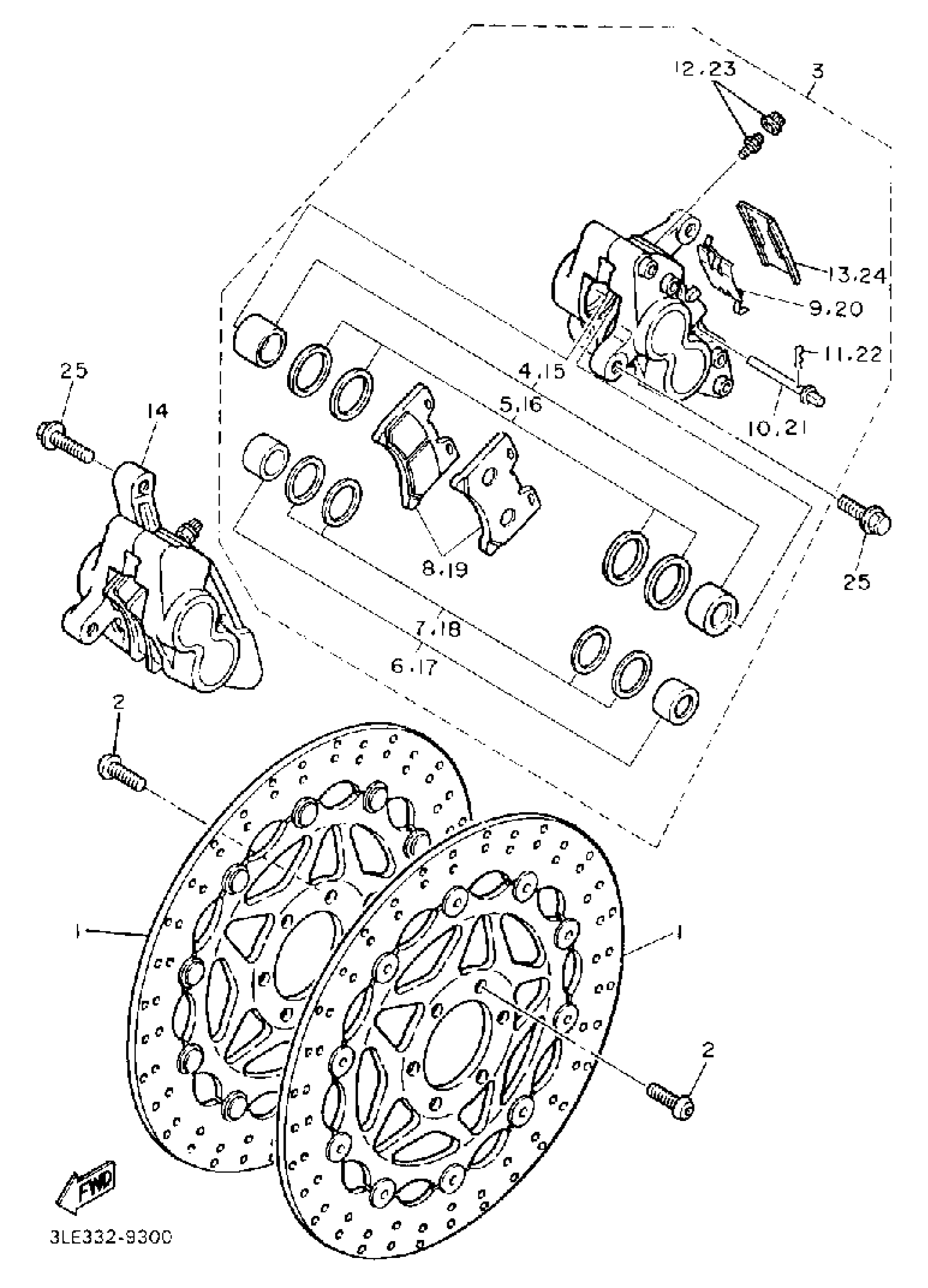

Yamaha FZR1000EC (FZR1000 CA) 1993 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASYLEFT

4KG-2581T-20-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASY LEFT

3GM-2580T-50-00

Unavailable

4

. PISTON ASSEMBLY, CALIPER

3GM-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

3GM-W0047-00-00

Unavailable

6

. PISTON ASSEMBLY, CALIPER

3GM-W0057-10-00

Unavailable

7

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

8

BRAKE PAD KIT

3GM-W0045-60-00

Unavailable

9

. SUPPORT, PAD

3GM-25919-50-00

Unavailable

10

. PIN, PAD

3GM-25924-50-00

Unavailable

11

CLIP

3MA-25925-00-00

$10.99

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

COVER, DUST

1KT-25836-01-00

$17.49

14

CALIPER ASY RIGHT

3GM-2580U-50-00

Unavailable

15

. PISTON ASSEMBLY, CALIPER

3GM-W0057-00-00

Unavailable

16

CALIPER SEAL KIT

3GM-W0047-00-00

Unavailable

17

. PISTON ASSEMBLY, CALIPER

3GM-W0057-10-00

Unavailable

18

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

19

BRAKE PAD KIT

3GM-W0045-60-00

Unavailable

20

. SUPPORT, PAD

3GM-25919-50-00

Unavailable

21

. PIN, PAD

3GM-25924-50-00

Unavailable

22

CLIP

3MA-25925-00-00

$10.99

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

COVER, DUST

1KT-25836-01-00

$17.49

25

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
