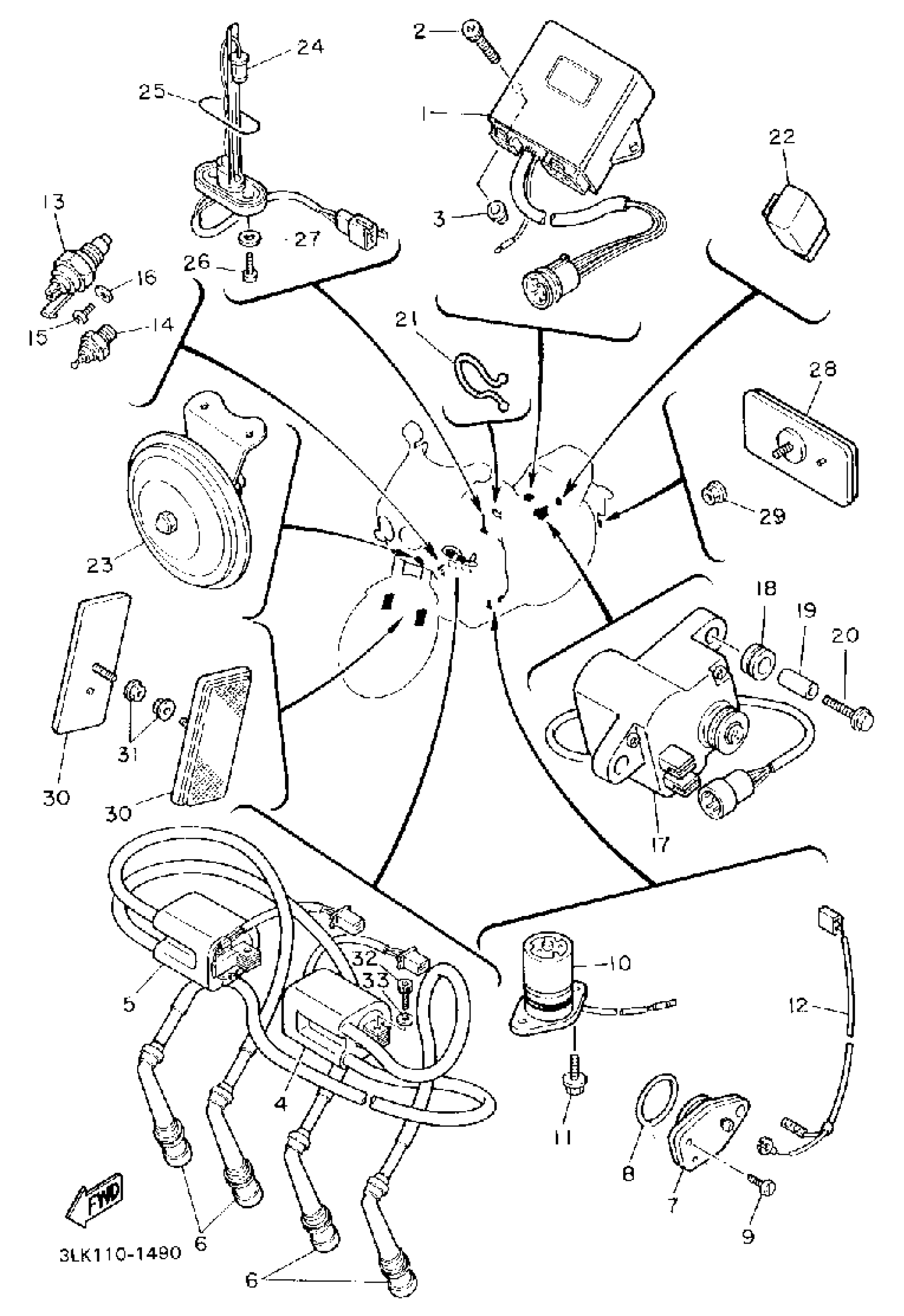

Yamaha FZR1000EC (FZR1000 CA) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSEMBLY

3LK-82305-10-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

Unavailable

3

PLATE

31A-14477-10-00

Unavailable

4

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

5

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

6

PLUG CAP ASSY

2KT-82370-00-00

$122.99

7

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

8

O-RING (371)

93210-29196-00

$8.49

9

SCREW, PAN HEAD

98580-06016-00

Unavailable

10

OIL LEVEL GAUGE ASSEMBLY

3GM-85720-00-00

Unavailable

11

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

12

WIRE, SUB LEAD

1AE-82509-00-00

Unavailable

13

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

14

THERMO UNIT

11H-83591-00-00

$105.99

15

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

SERVO MOTOR ASY

3GM-85820-01-00

Unavailable

18

GROMMET

90480-14412-00

Unavailable

19

COLLAR(3GM)

90387-0609L-00

Unavailable

20

BOLT, FLANGE

95817-06035-00

Unavailable

21

CLAMP (8M1)

90464-30040-00

Unavailable

22

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

23

HORN

3GM-83371-00-00

Unavailable

24

SENDER UNIT ASSY, FUEL METER

3GM-85752-03-00

Unavailable

25

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

26

SCREW 256241430000

90149-06011-00

Unavailable

27

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

28

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

29

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

30

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

31

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

32

BOLT, HEXAGON

97017-06020-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable
