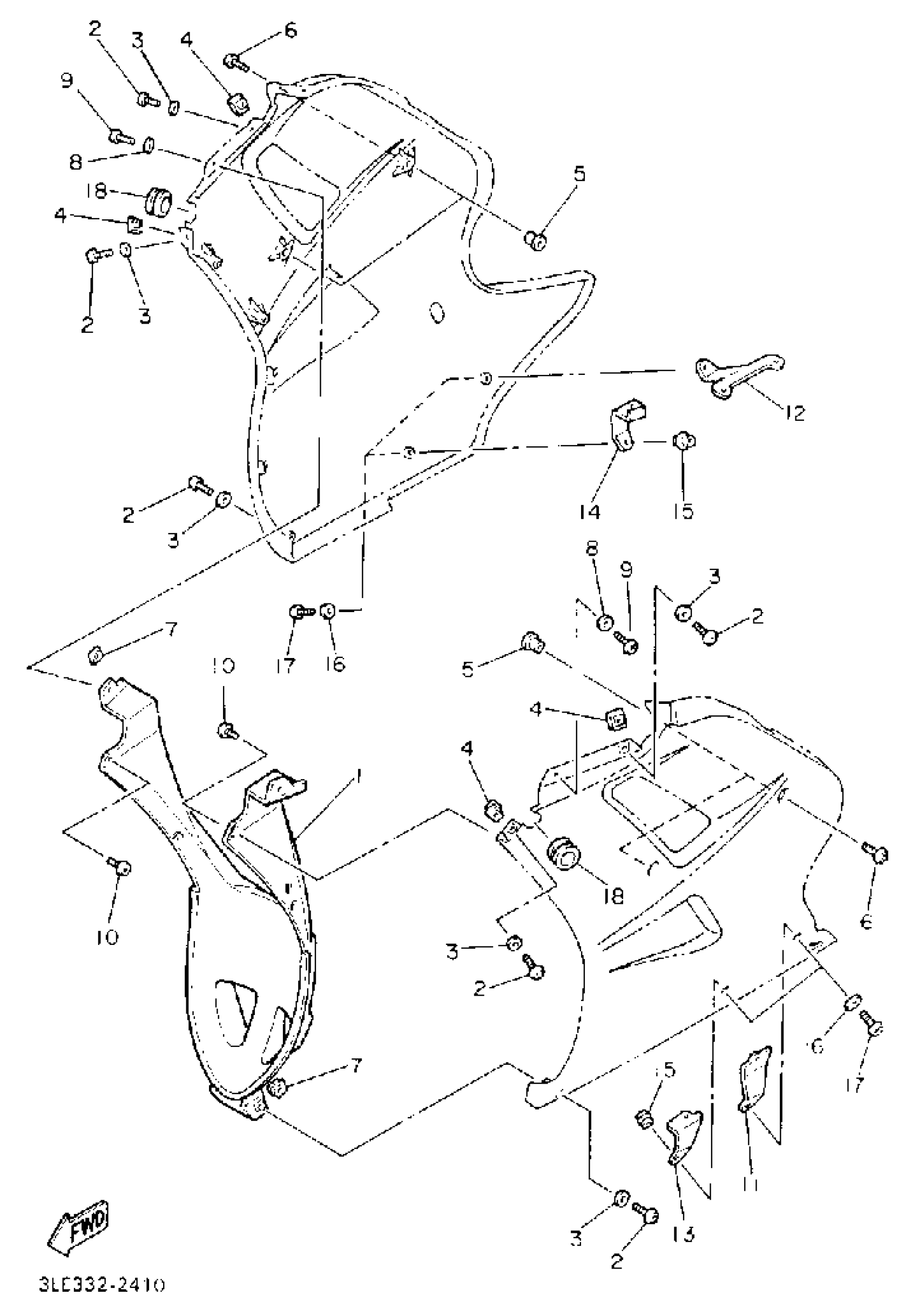

Yamaha FZR1000DC (FZR1000 CA) 1992 COWLING 3 Diagram

#

Description
Price

1

PANEL, INNER 1

3GM-2836K-50-GE

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$1.85

3

WASHER, PLATE(1KT)

90202-05180-00

$6.47

4

NUT, SPRING

90183-051A0-00

$2.54

5

COLLAR(1LJ)

90387-067N5-00

$4.92

6

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$5.41

7

NUT, SPRING

90183-051A0-00

$2.54

8

WASHER, PLATE(1KT)

90202-05180-00

$6.47

9

SCREW(3YF)

90149-05299-00

$3.39

10

SCREW, TRUSS TAP.

97707-50012-00

$3.08

11

BRACKET 1

3GM-2836A-00-00

Unavailable

12

BRACKET 2

3GM-2836E-50-00

Unavailable

13

BRACKET 3

3GM-2836F-00-00

Unavailable

14

BRACKET 4

3GM-2836G-00-00

Unavailable

15

NUT(1KT)

90179-05523-00

$5.42

16

WASHER, PLATE(1KT)

90202-05180-00

$6.47

17

SCREW(3YF)

90149-05299-00

$3.39

18

GROMMET(3GM)

90480-35526-00

Unavailable
