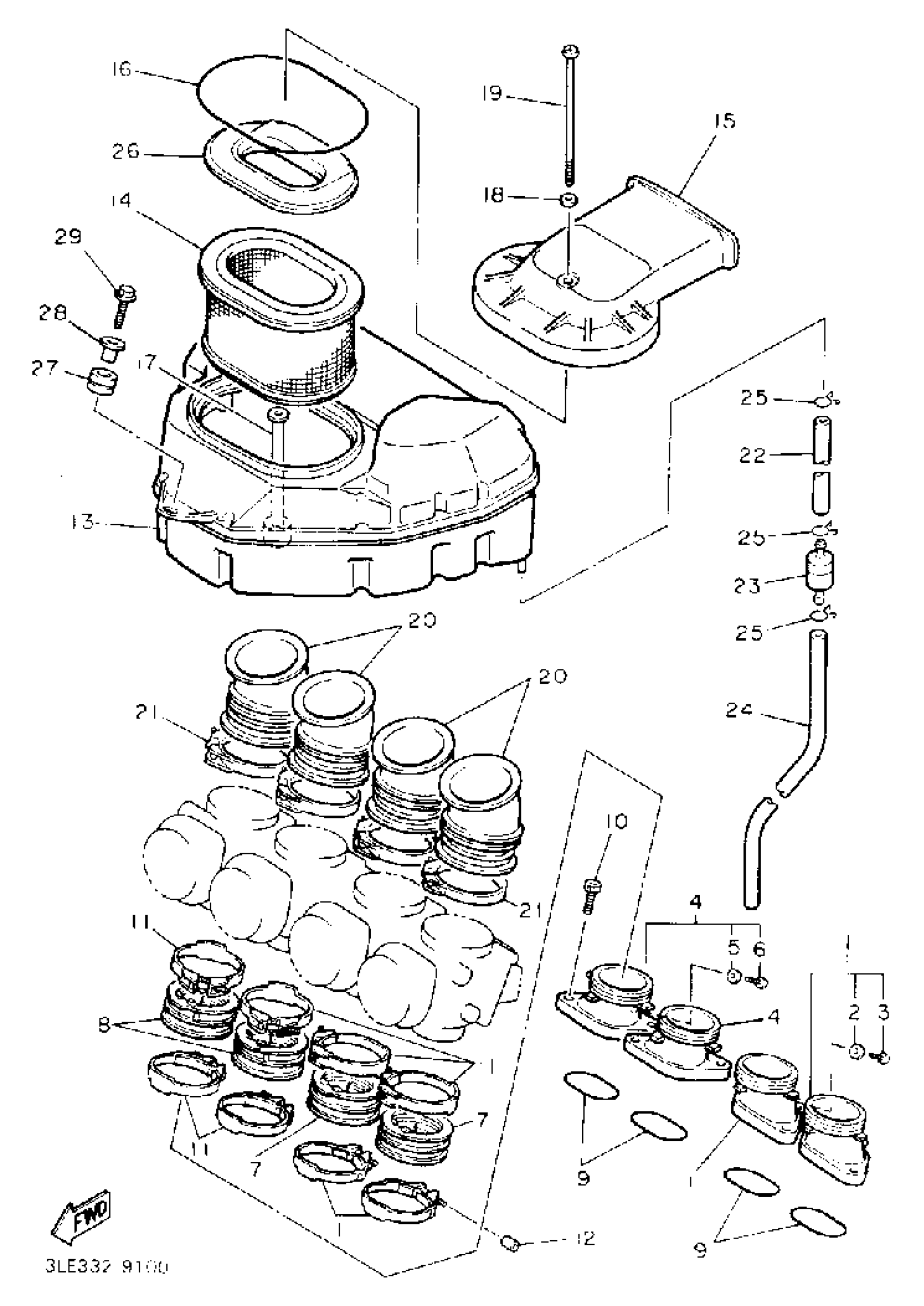

Yamaha FZR1000DC (FZR1000 CA) 1992 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR

3GM-13586-01-00

Unavailable

2

GASKET 256113960000

90430-06014-00

Unavailable

3

BOLT,SOCKET

91317-06012-00

$8.49

4

JOINT, CARBURETOR 2

3GM-13596-00-00

Unavailable

5

GASKET 256113960000

90430-06014-00

Unavailable

6

BOLT,SOCKET

91317-06012-00

$8.49

7

JOINT, CARBURETOR 3

3GM-13597-00-00

$27.99

8

JOINT, CARBURETOR 4

3GM-13598-00-00

$27.99

9

O-RING (10L)

93210-44545-00

$13.49

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

HOSE CLAMP ASSY

90450-57016-00

$21.99

12

HOSE (L400)

90445-082A9-00

$18.99

13

AIR CLEANER CASE ASSEMBLY

3GM-14401-00-00

Unavailable

14

ELEMENT, AIR CLEANER

3GM-14451-00-00

Unavailable

15

CAP, CLEANER CASE 2

3GM-14422-00-00

Unavailable

16

SEAL

36F-14457-00-00

Unavailable

17

COLLAR

3GM-14443-00-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

SCREW, PAN HEAD

98517-06140-00

Unavailable

20

JOINT, AIR CLEANER 1

3GM-14453-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-67002-00

Unavailable

22

HOSE (L210)

90445-110F5-00

Unavailable

23

FILTER ASSY

4X7-2149Y-00-00

Unavailable

24

HOSE (L800)

90445-11083-00

Unavailable

25

CLIP

90467-100A1-00

Unavailable

26

SILENCER, INNER

3GM-14432-00-00

Unavailable

27

GROMMET 839774310000

90480-14023-00

Unavailable

28

COLLAR(47X)

90387-060M9-00

Unavailable

29

BOLT, FLANGE

95817-06030-00

Unavailable
