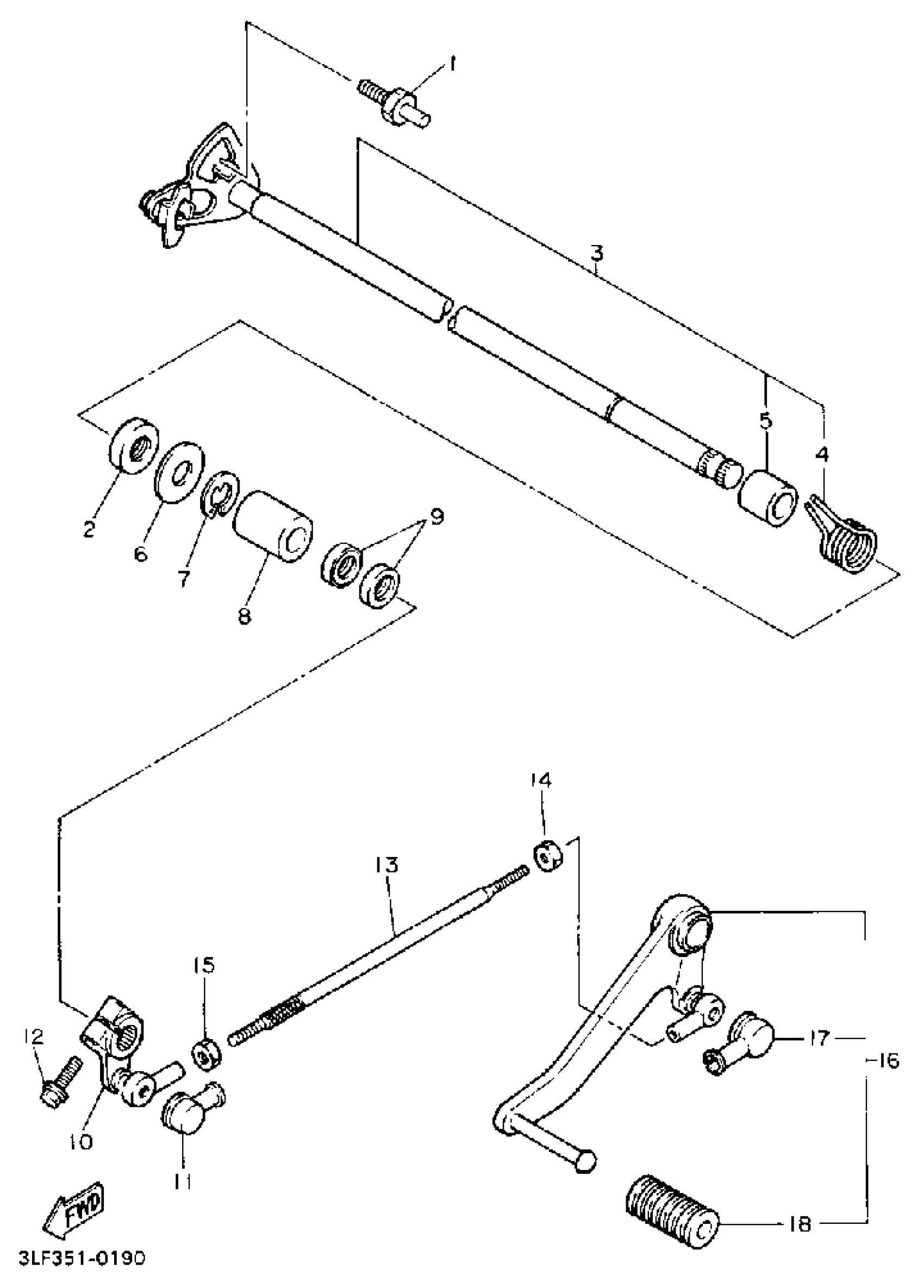

Yamaha FZR1000BC (FZR1000 CA) 1991 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

SEAL, OIL (30X)

93102-12321-00

$12.49

3

SHIFT SHAFT ASY.1

1AE-18101-03-00

Unavailable

4

SPRING, TORSION

90508-32142-00

$5.60

5

. COLLAR

90387-114K8-00

Unavailable

6

WASHER, PLATE (353)

90201-12575-00

$8.49

7

CIRCLIP

99006-10600-00

$9.49

8

SPACER (3Y1)

90560-12191-00

$7.49

9

OIL SEAL

93109-12075-00

$10.49

10

ARM, SHIFT

2GH-18112-01-00

Unavailable

11

COVER, DUST

2H9-18154-00-00

$5.49

12

BOLT, FLANGE

95817-06020-00

$3.81

13

ROD, SHIFT

46X-18115-00-00

Unavailable

14

NUT (2H9)

90170-06228-00

$9.49

15

NUT(650)

95380-06700-00

$8.49

16

SHIFT PEDAL ASSEMBLY

2GH-18110-00-00

Unavailable

17

COVER, DUST

2H9-18154-00-00

$5.49

18

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable
