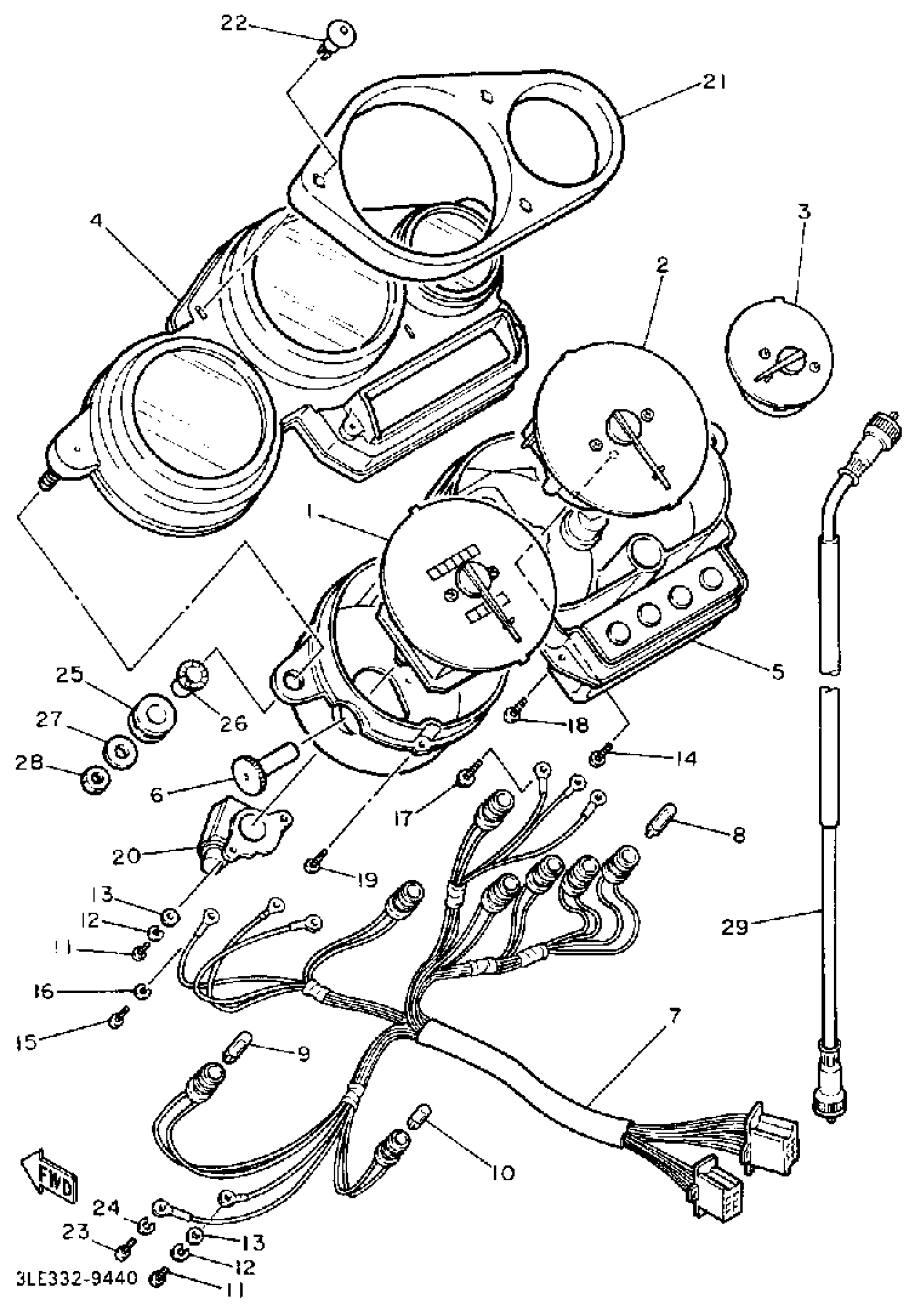

Yamaha FZR1000BC (FZR1000 CA) 1991 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSEMBLY
3LG-83570-00-00
Unavailable
2
TACHOMETER ASSEMBLY
3GM-83540-00-00
Unavailable
3
WATER TEMPERATURE ASSY
4TX-83590-00-00
Unavailable
4
COVER, METER
3GM-83559-00-00
Unavailable
5
CASE, INNER
3LG-8353H-10-00
Unavailable
6
KNOB, TRIP METER
2GH-83578-00-00
Unavailable
7
SOCKET CORD ASSEMBLY
3LG-83509-10-00
Unavailable
8
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
14
SCREW, TAPPING(3GM)
90167-04057-00
Unavailable
16
WASHER, SPRING
92990-03100-00
Unavailable
17
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
18
SCREW, TAPPING (15A)
90164-04008-00
Unavailable
19
. SCREW, TAPPING
90167-03058-00
Unavailable
20
SOCKET CORD ASSY
4FM-83520-00-00
Unavailable
21
DAMPER
3GM-83513-00-00
Unavailable
22
CLIP
3GM-83525-00-00
Unavailable
23
SCREW, PAN HEAD(3KS)
98507-03012-00
Unavailable
24
WASHER, SPRING
92990-03100-00
Unavailable
25
DAMPER
5J0-83513-00-00
Unavailable
26
COLLAR
90387-062Y6-00
Unavailable
27
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
28
NUT(6TA)
95317-06600-00
Unavailable
29
SPEEDOMETER CABLE ASSY
3GM-83550-02-00
Unavailable
