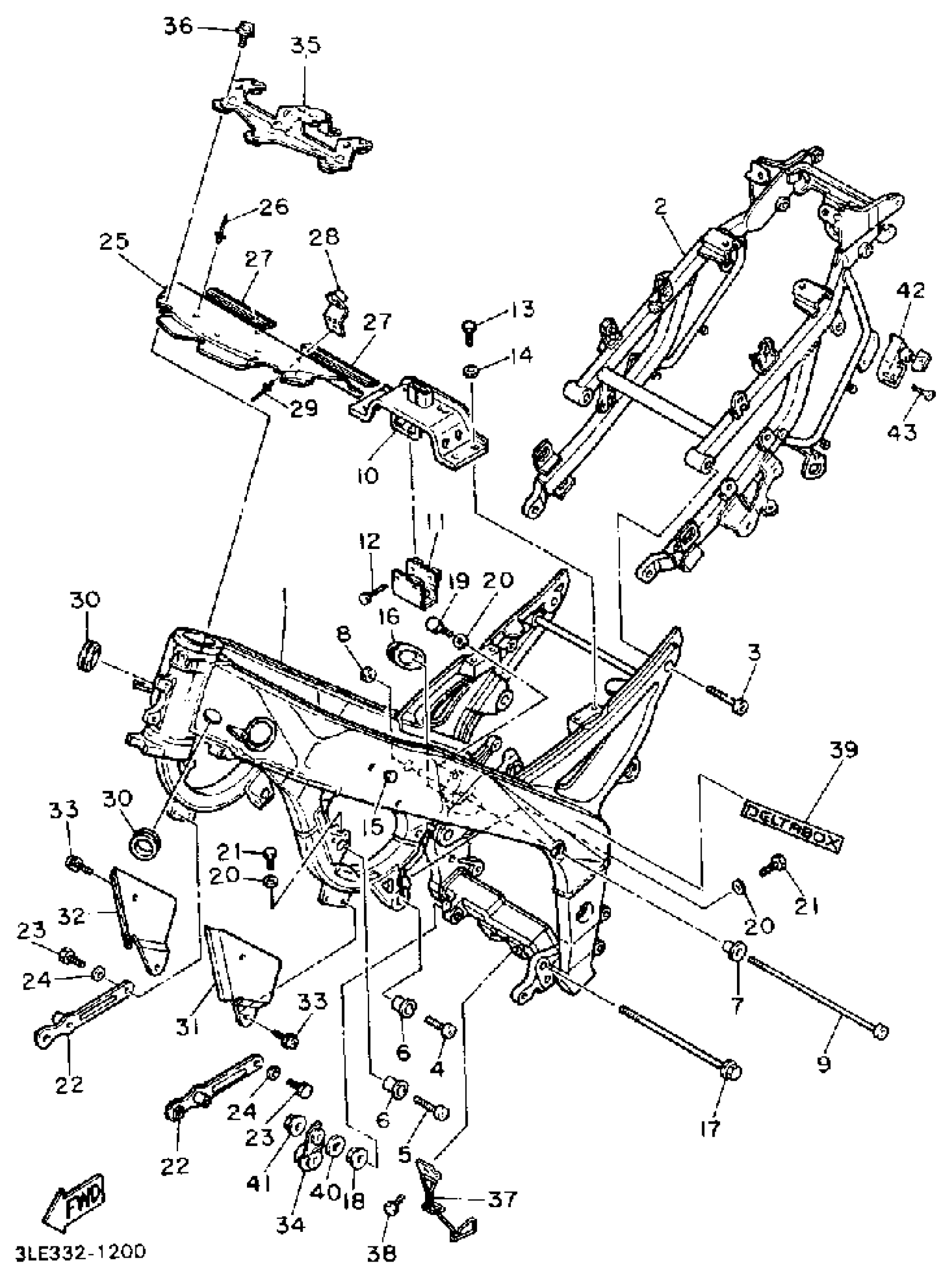

Yamaha FZR1000BC (FZR1000 CA) 1991 FRAME Diagram
#
1
FRAME
3GM-21110-60-00
Unavailable
2
REAR FRAME COMP.
3GM-21190-50-33
Unavailable
5
BOLT, HEXAGON SOCKET HEAD
90110-10168-00
Unavailable
6
COLLAR
90387-115V8-00
Unavailable
7
COLLAR
90387-105V7-00
Unavailable
8
NUT
90179-10682-00
Unavailable
9
BOLT, HEXAGON SOCKET HEAD
90110-10169-00
Unavailable
10
BRACKET, TANK FITTING
3GM-21348-51-00
Unavailable
11
BRACKET, TANK FITTING
3GM-21347-00-00
Unavailable
16
COVER 5
2GH-2117T-00-00
Unavailable
17
BOLT, WASHER BASED(4FM)
90105-10716-00
Unavailable
18
NUT(4KG)
90179-10658-00
Unavailable
19
BOLT (1WT)
98006-08035-00
Unavailable
20
WASHER, PLAIN
92990-08200-00
Unavailable
21
BOLT
98021-08035-00
Unavailable
22
BRACKET, RADIATOR
3GM-2142K-50-00
Unavailable
25
COVER 2
3GM-2117M-00-00
Unavailable
26
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
27
GROMMET
2GH-15365-00-00
Unavailable
28
STAY
3GM-2117A-00-00
Unavailable
29
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
30
GROMMET(3GM)
90480-35526-00
Unavailable
31
COVER 3
3GM-2117N-00-00
Unavailable
32
COVER 4
3GM-2117R-00-00
Unavailable
33
SCREW, WITH WASHER (3T2)
90159-06058-00
Unavailable
34
STAY, MUFFLER 2
4FM-21446-01-00
Unavailable
35
BRACKET, COIL
3GM-21359-00-00
Unavailable
36
BOLT, WITH WASHER(55K)
90119-06114-00
Unavailable
37
BRACKET, BATTERY BOX
3GM-21149-00-00
Unavailable
38
BOLT, FLANGE
95817-06010-00
Unavailable
39
EMBLEM
1RK-2118E-00-00
Unavailable
40
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
41
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
42
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
43
SCREW (3H1)
90149-06150-00
Unavailable
