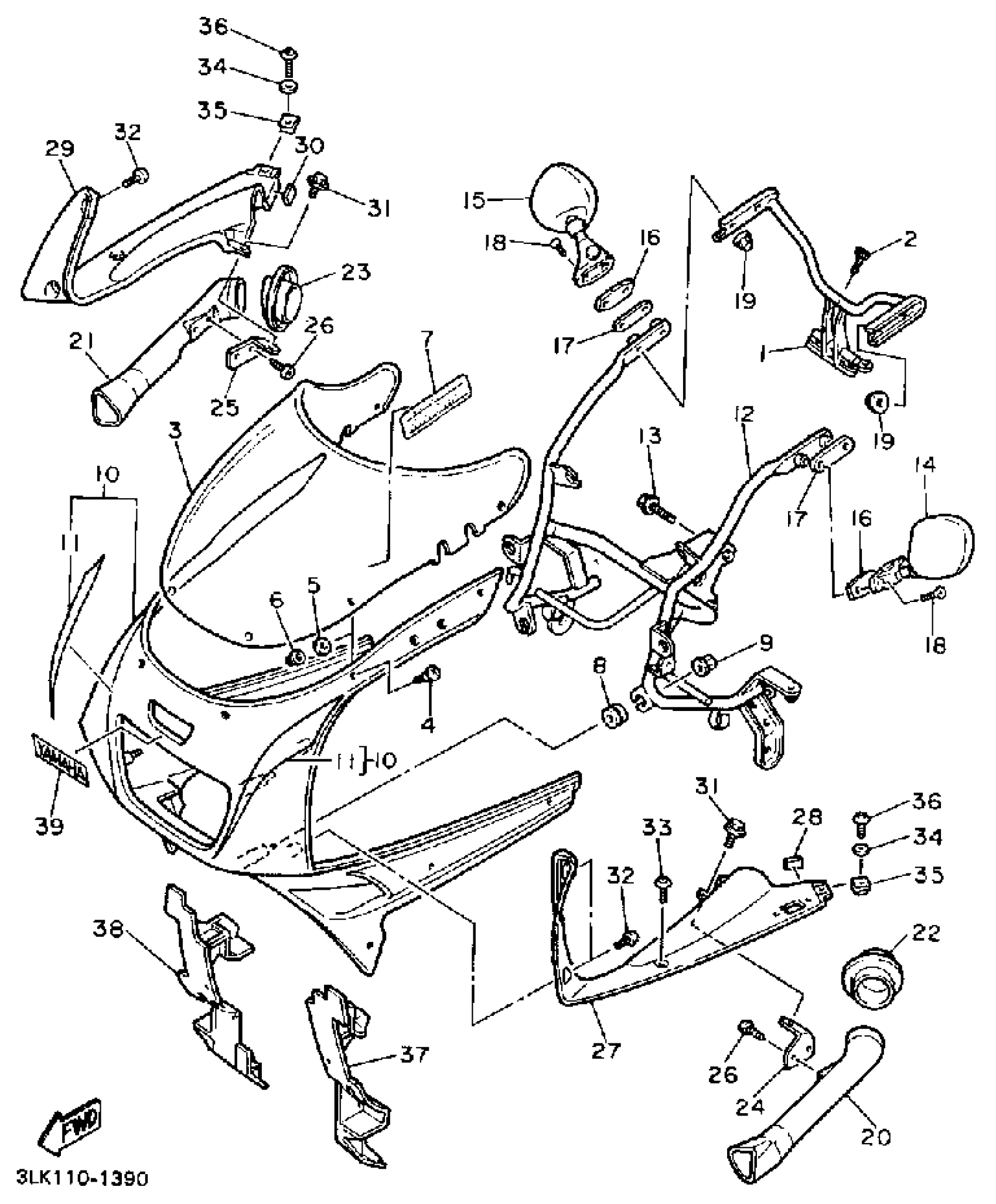

Yamaha FZR1000BC (FZR1000 CA) 1991 COWLING 1 Diagram

#

Description
Price

1

STAY, MIRROR 1

3GM-2831W-50-00

Unavailable

2

BOLT,SOCKET

91317-06016-00

$1.25

3

WINDSHIELD

3GM-28381-51-00

Unavailable

4

SCREW(3HX)

90149-05273-00

$5.60

5

WASHER, SPECIAL

3HX-28215-00-00

$7.99

6

NUT, FLANGE(3GM)

95707-05500-00

$8.49

7

LABEL, CAUTION

3JJ-2835Y-00-00

Unavailable

8

GROMET (3X3)

90480-14229-00

$8.49

9

NUT (1AE)

90179-06500-00

$7.49

10

BODY, COWLING

3GM-W2834-90-0X

Unavailable

11

. GRPHC SETCOWLING

3GM-28390-91-00

Unavailable

12

STAY 1

3GM-28356-50-00

Unavailable

13

BOLT, FLANGE

95817-08035-00

$9.49

14

REAR VIEW MIRROR ASSY (LEFT)

3HE-26280-01-00

Unavailable

15

MIRROR ASSEMBLYASSY (RIGHT)

2GH-26290-00-00

Unavailable

16

PLATE, MIRROR FITTING 2

3CV-26299-00-00

Unavailable

17

PLATE, MIRROR FITTING 1

3CV-26298-00-00

Unavailable

18

SCREW, FLAT

98707-06030-00

Unavailable

19

NUT, CROWN(1FN)

90176-06055-00

Unavailable

20

DUCT 1

3GM-2838N-51-00

Unavailable

21

DUCT 2

3GM-2838R-51-00

Unavailable

22

DUCT 3

3GM-2838T-01-00

Unavailable

23

DUCT 4

3GM-2838U-01-00

Unavailable

24

BRACKET 5

3GM-2836H-00-00

Unavailable

25

BRACKET 6

3GM-2836J-00-00

Unavailable

26

SCREW, PAN TAP.2 SLIT

97707-40612-00

Unavailable

27

PANEL 1

3GM-2835U-51-00

Unavailable

28

DAMPER

34M-2139X-00-00

Unavailable

29

PANEL 2

3GM-2835V-51-00

Unavailable

30

DAMPER

34M-2139X-00-00

Unavailable

31

BOLT, HEXA W/W

90119-06018-00

Unavailable

32

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

33

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

34

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

35

NUT, SPRING

90183-051A0-00

Unavailable

36

SCREW(3YF)

90149-05299-00

Unavailable

37

PLATE 1

3GM-28396-50-00

Unavailable

38

PLATE 2

3GM-28397-50-00

Unavailable

39

EMBLEM, YAMAHA

99246-00100-00

Unavailable
