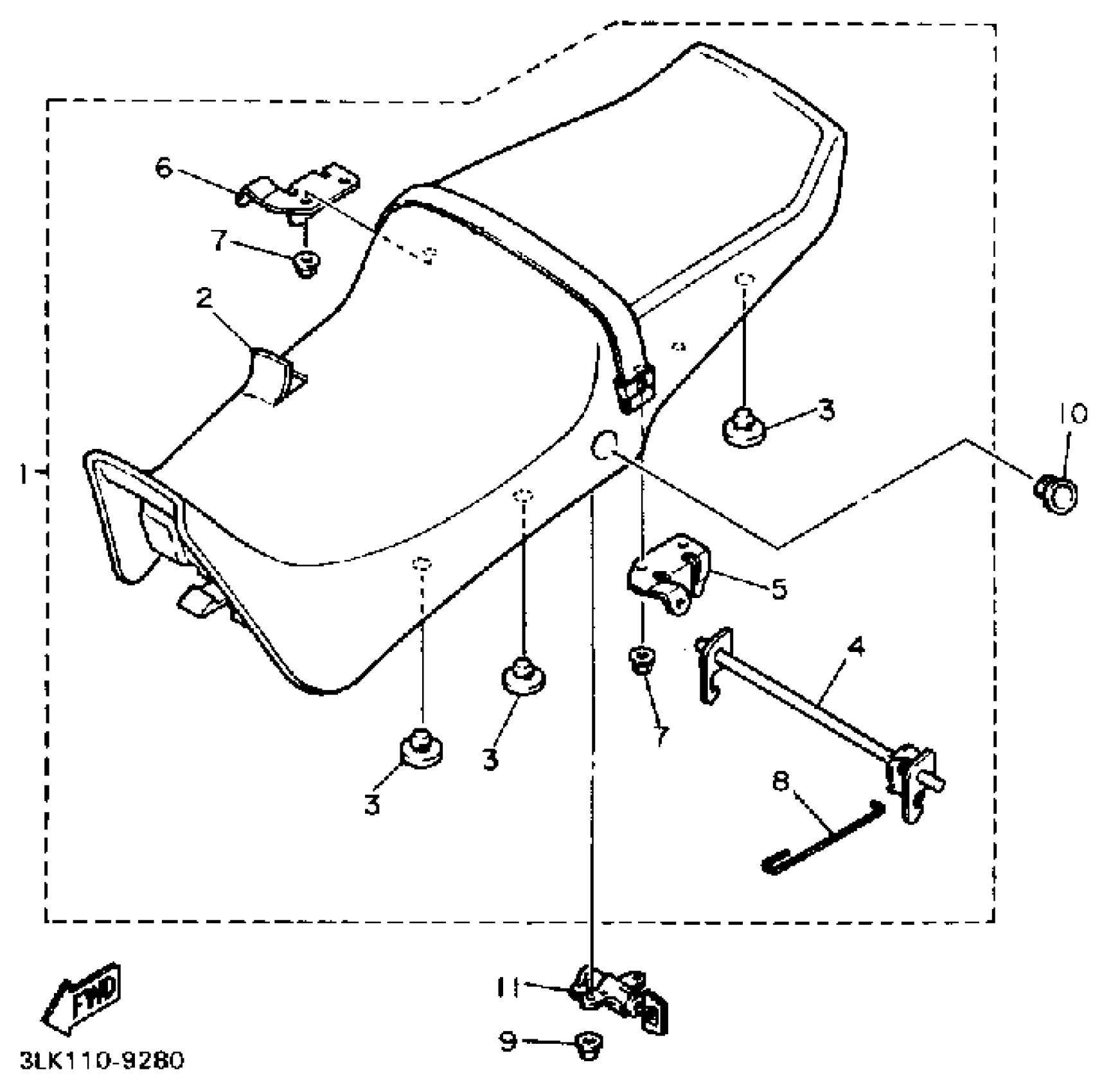

Yamaha FZR1000AC (FZR1000 CA) 1990 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

3GM-24730-00-00

Unavailable

2

. COVER, DOUBLE SEAT

3GM-24731-00-00

Unavailable

3

PAD, SEAT

2GH-24741-01-00

$2.60

4

. LEVER, SEAT

2GH-24776-00-00

Unavailable

5

. BRACKET, SEAT

1KT-24718-00-00

Unavailable

6

. BRACKET, SEAT

1KT-24728-00-00

Unavailable

7

NUT, FLANGE(7NB)

95780-06500-00

$2.60

8

. ROD, CONNECTING

1JK-2478F-00-00

Unavailable

9

NUT, FLANGE(3GM)

95707-05500-00

$8.49

10

COVER

47X-24796-00-00

Unavailable

11

SEAT LOCK ASSY

47X-24705-00-00

Unavailable
