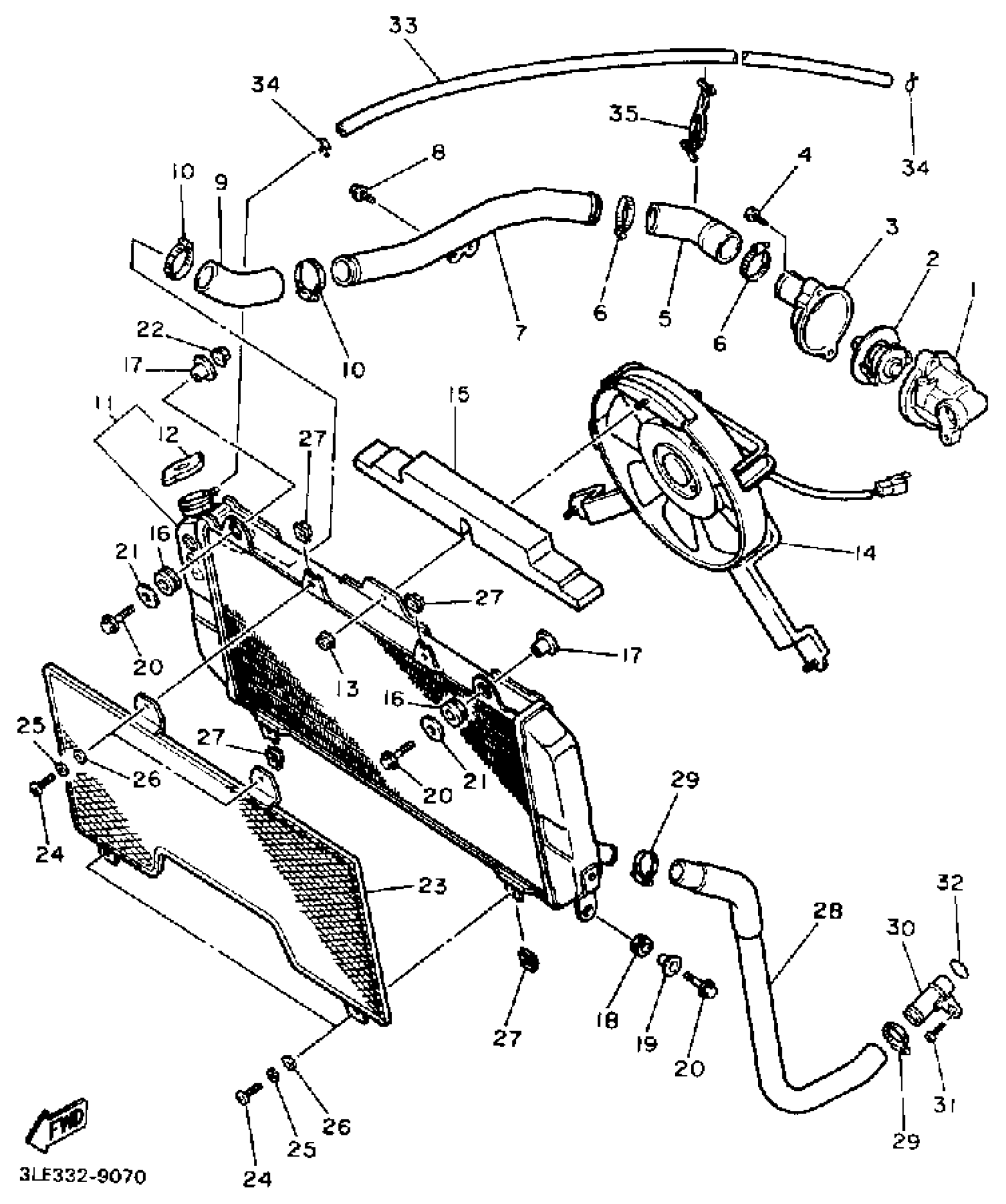

Yamaha FZR1000AC (FZR1000 CA) 1990 RADIATOR HOSE Diagram

#

Description
Price

1

HOUSING, THERMOSTAT

3GM-12417-00-00

Unavailable

2

THERMOSTAT ASSY

3GM-12410-01-00

Unavailable

3

COVER, THERMOSTAT

3GM-12413-00-00

Unavailable

4

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

5

HOSE 1

3GM-12576-00-00

Unavailable

6

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

7

PIPE 3

3GM-12483-00-00

Unavailable

8

BOLT, FLANGE(3BM)

95024-06008-00

$9.49

9

HOSE 2

3GM-12577-00-00

Unavailable

10

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

11

RADIATOR ASSEMBLY

3GM-12461-00-00

Unavailable

12

CAP, RADIATOR

4FL-12462-00-00

$62.99

13

NUT, FLANGE(4MV)

95707-06500-00

$1.23

14

BLOWER ASSEMBLY

3GM-12405-00-00

Unavailable

15

HEAT PROTECTOR 1

3GM-12682-00-00

Unavailable

16

GROMMET (4L0)

90480-18276-00

Unavailable

17

COLLAR 8111266500

90387-07037-00

Unavailable

18

GROMMET (5H0)

90480-10297-00

Unavailable

19

COLLAR(735)

90387-06033-00

Unavailable

20

BOLT, FLANGE

95817-06020-00

Unavailable

21

WASHER, PLATE (J10)

90201-06697-00

Unavailable

22

NUT, FLANGE(4MV)

95707-06500-00

$1.23

23

COVER, RADIATOR

3GM-12467-00-00

Unavailable

24

SCREW, PAN

98517-05012-00

Unavailable

25

WASHER(3SX)

92907-05100-00

Unavailable

26

WASHER(1RW)

92907-05600-00

Unavailable

27

NUT, SPRING

90183-051A0-00

Unavailable

28

HOSE, 4

3GM-12579-00-00

Unavailable

29

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

30

PIPE 4

2GH-12484-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06142-00

Unavailable

32

O-RING(1LT)

93210-23787-00

Unavailable

33

HOSE (L1500)

90445-090F6-00

Unavailable

34

CLIP 101235600

90467-08003-00

Unavailable

35

CLAMP (5G3)

90464-35047-00

Unavailable
