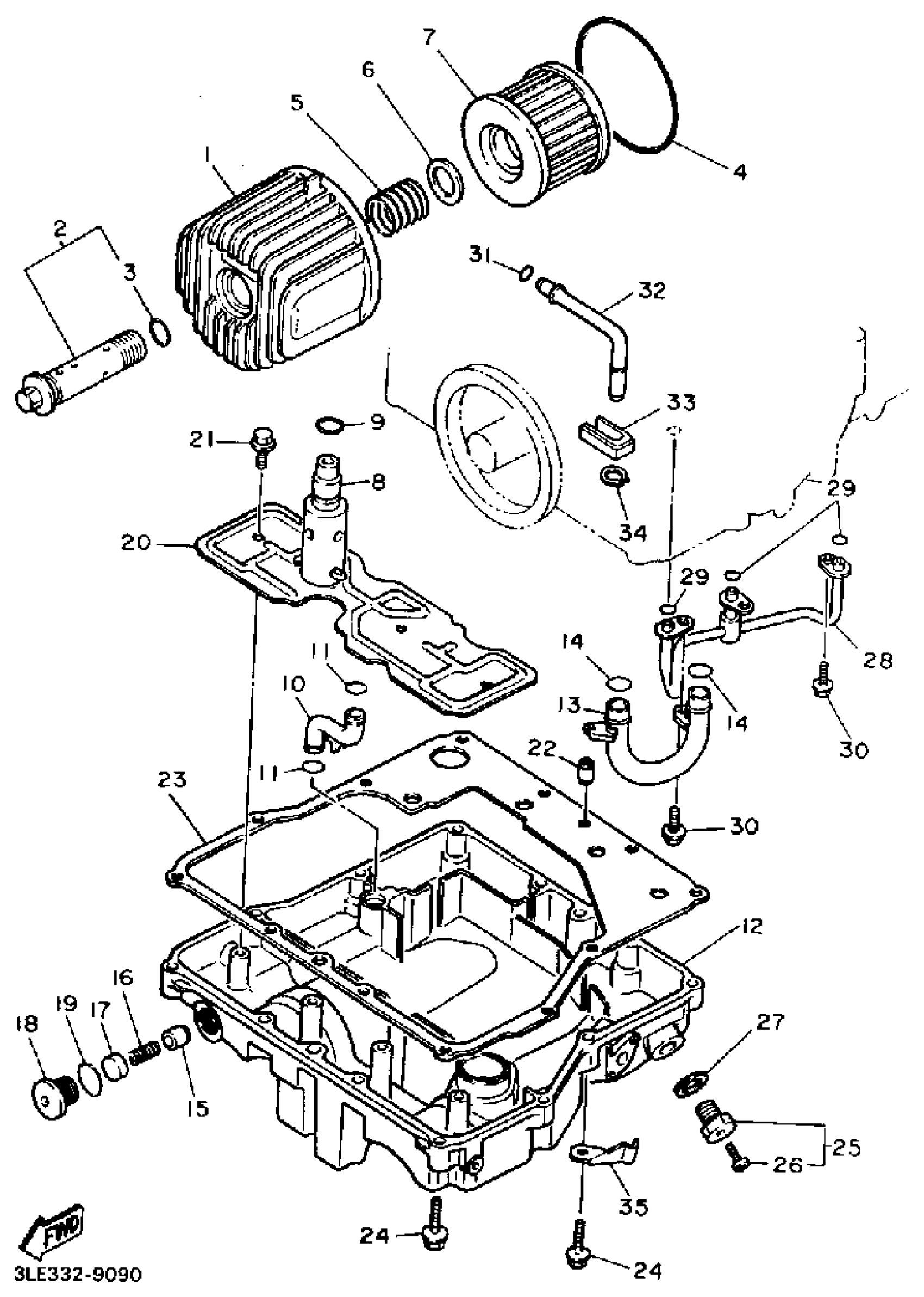

Yamaha FZR1000AC (FZR1000 CA) 1990 OIL FILTER Diagram

#

Description
Price

1

COVER, OIL ELEMENTELEMENT

1AE-13447-00-00

Unavailable

2

BY-PASS VALVE ASSY

36Y-13340-00-00

Unavailable

3

O-RING (26H)

93210-16629-00

$7.49

4

O-RING(1KF)

93210-87723-00

Unavailable

5

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

6

WASHER, PLATE (1L9)

90201-21608-00

$8.49

7

ELEMENT, OIL CLEANER

36Y-13441-00-00

$8.99

8

RELIEF VALVE ASSY

3KS-13490-00-00

Unavailable

9

O-RING (22U)

93210-15566-00

$7.49

10

PIPE, OIL 2

3GM-13418-00-00

Unavailable

11

O-RING (2GH)

93210-08764-00

Unavailable

12

COVER, STRAINER

3GM-13417-01-00

Unavailable

13

PIPE,OIL 1

3FV-13416-01-00

Unavailable

14

O-RING (26H)

93210-14579-00

$7.49

15

. PLUNGER, RELIEF

1L9-13483-00-00

Unavailable

16

SPRING, RELIEF

11H-13484-00-00

Unavailable

17

PLUG, TIGHT (70R)

90331-14045-00

Unavailable

18

PLUG

36Y-15189-01-00

Unavailable

19

O-RING (26H)

93210-16629-00

$7.49

20

PLATE,BAFFLE LOWER

3FV-13337-00-00

Unavailable

21

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

22

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

23

GASKET, STRAINER COVER

4FM-13414-00-00

Unavailable

24

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

25

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

26

SCREW, BIND(2TV)

98980-06008-00

Unavailable

27

GASKET

214-11198-01-00

Unavailable

28

PIPE, DELIVERY 1

3GM-13161-01-00

Unavailable

29

O-RING(1AE)

93210-06714-00

Unavailable

30

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

31

O-RING (4A0)

93210-09418-00

Unavailable

32

PIPE, BREATHER

3GM-15373-00-00

Unavailable

33

HOLDER, OIL PIPE

3GM-13174-00-00

Unavailable

34

CIRCLIP(10W)

99009-10400-00

Unavailable

35

CLAMP

90465-08076-00

Unavailable
