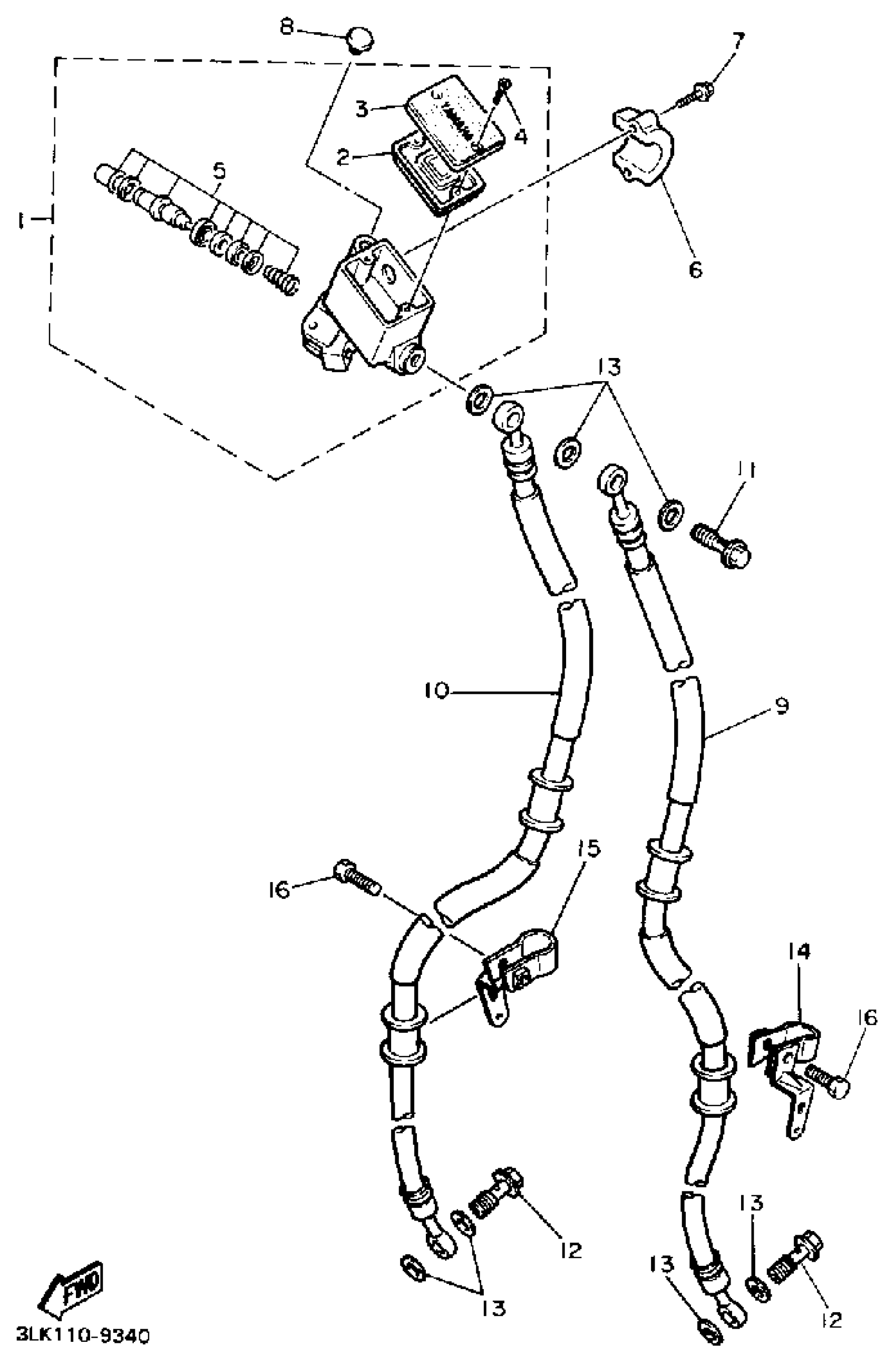

Yamaha FZR1000AC (FZR1000 CA) 1990 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

3SD-25870-20-00

Unavailable

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

CAP, RESERVOIR

3GM-25852-02-00

$57.99

SCREW, FLAT

98707-04012-00

$2.18

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

$4.16

PLUG (341-26329-00)

90338-09012-00

$9.49

HOSE, BRAKE

99999-02556-00

Unavailable

HOSE, BRAKE 2

3GM-25873-00-00

Unavailable

BOLT, UNION

90401-10038-00

$12.49

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER,BRKE HOSE 1

3LK-25875-00-00

Unavailable

HOLDER,BRKE HOSE 2

4PR-25876-10-00

Unavailable

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable
