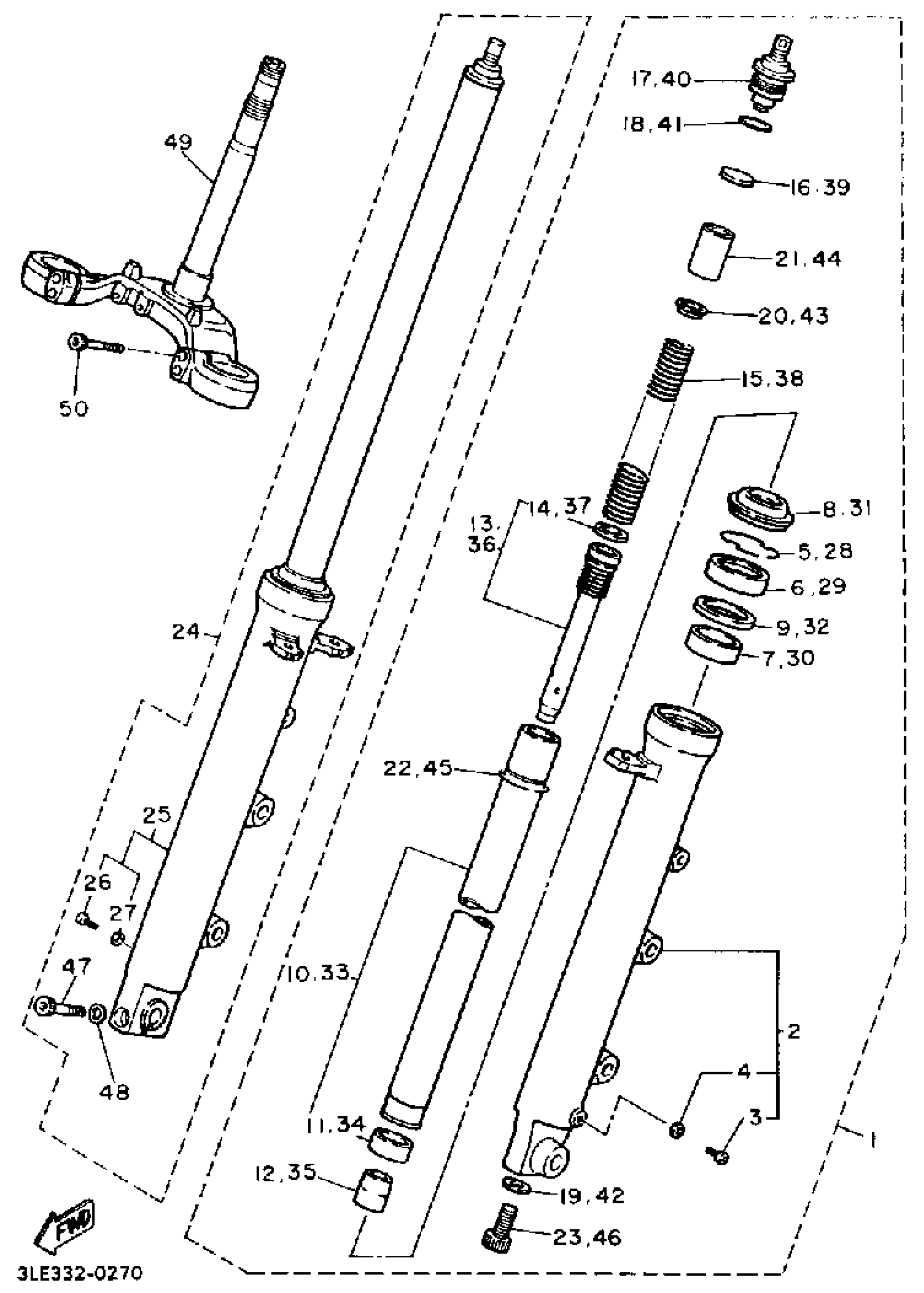

Yamaha FZR1000AC (FZR1000 CA) 1990 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

3GM-23102-10-00

Unavailable

2

. TUBE, OUTER 1

3GM-23126-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

5

RING, SNAP

4V4-23153-L0-00

$9.99

6

OIL SEAL

4PU-23145-01-00

$25.99

7

METAL, SLIDE 1

5EB-23125-00-00

$32.99

8

SEAL, DUST

4PU-23144-00-00

$24.99

9

WASHER

4V4-23146-L0-00

$6.99

10

. INNER TUBE 1COMP1

3GM-23110-00-00

Unavailable

11

PISTON, FRONT FORK

5EB-23171-00-00

$34.99

12

SPINDLE, TAPER

3GM-23173-00-00

Unavailable

13

. CYLINDER, FRTFRKFRONT FORK

3GM-23170-00-00

Unavailable

14

.. RING, PISTON

3GM-23157-00-00

Unavailable

15

. SPRING, FRONT FORKFORK

3GM-23141-00-00

Unavailable

16

WASHER, SPRING UPPER

3GM-23149-00-00

Unavailable

17

. BOLT, CAP

3GM-23111-10-00

Unavailable

18

O-RING

4V4-23188-L1-00

Unavailable

19

GASKET

4V4-23158-L0-00

Unavailable

20

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

21

. SPACER

3GM-23118-10-00

Unavailable

22

. RING, SNAP

3GM-23153-00-00

Unavailable

23

BOLT

4V4-23181-L0-00

Unavailable

24

FRONT FORK ASSEMBLY R

3GM-23103-10-00

Unavailable

25

. TUBE, OUTER 2

3GM-23136-00-00

Unavailable

26

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

27

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

28

RING, SNAP

4V4-23153-L0-00

$9.99

29

OIL SEAL

4PU-23145-01-00

$25.99

30

METAL, SLIDE 1

5EB-23125-00-00

$32.99

31

SEAL, DUST

4PU-23144-00-00

$24.99

32

WASHER

4V4-23146-L0-00

$6.99

33

. INNER TUBE 1COMP1

3GM-23110-00-00

Unavailable

34

PISTON, FRONT FORK

5EB-23171-00-00

$34.99

35

SPINDLE, TAPER

3GM-23173-00-00

Unavailable

36

. CYLINDER, FRTFRKFRONT FORK

3GM-23170-00-00

Unavailable

37

.. RING, PISTON

3GM-23157-00-00

Unavailable

38

. SPRING, FRONT FORKFORK

3GM-23141-00-00

Unavailable

39

WASHER, SPRING UPPER

3GM-23149-00-00

Unavailable

40

. BOLT, CAP

3GM-23111-10-00

Unavailable

41

O-RING

4V4-23188-L1-00

Unavailable

42

GASKET

4V4-23158-L0-00

Unavailable

43

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

44

. SPACER

3GM-23118-10-00

Unavailable

45

. RING, SNAP

3GM-23153-00-00

Unavailable

46

BOLT

4V4-23181-L0-00

Unavailable

47

BOLT, SOCKET

91317-08045-00

Unavailable

48

WASHER PLATE 141181390000

90201-08085-00

Unavailable

49

UNDER BRACKETCOMP

3GM-23340-00-00

Unavailable

50

BOLT, FLANGE(4FM)

95814-08035-00

Unavailable
