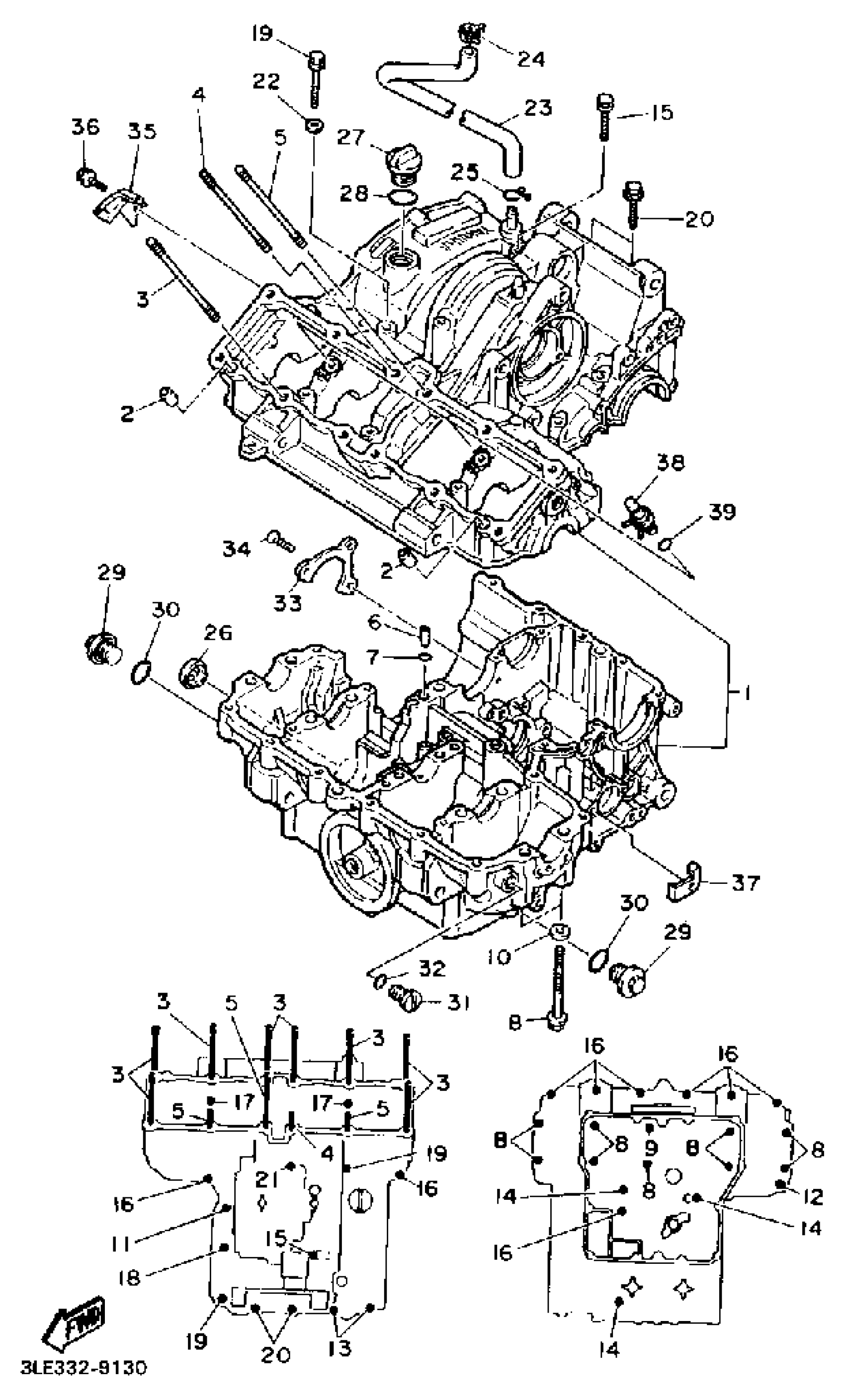

Yamaha FZR1000AC (FZR1000 CA) 1990 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASY

3GM-15100-02-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, STUD

90116-10532-00

Unavailable

4

BOLT, STUD

90116-10531-00

Unavailable

5

BOLT, STUD (4BH)

90116-10576-00

Unavailable

6

COLLAR 288839130000

90387-05383-00

$10.49

7

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

8

BOLT, WASHER BASED

90105-09373-00

Unavailable

9

BOLT, WASHER BASED

90105-09580-00

Unavailable

10

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

11

BOLT, FLANGE

95817-06035-00

$7.49

12

BOLT, FLANGE

95814-08045-00

$4.29

13

BOLT, FLANGE

95817-06060-00

$4.14

14

BOLT, FLANGE

95817-06080-00

$4.72

15

BOLT, FLANGE

95817-06140-00

Unavailable

16

BOLT, FLANGE

95814-08045-00

$4.29

17

BOLT, FLANGE

95817-08055-00

Unavailable

18

BOLT, FLANGE

95814-08065-00

Unavailable

19

BOLT, FLANGE

95817-08090-00

Unavailable

20

BOLT, FLANGE

95817-08060-00

Unavailable

21

BOLT, WASHER BASED(3KT)

90105-09555-00

Unavailable

22

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

23

PIPE, BREATHER 1

1AE-11166-00-00

Unavailable

24

CLIP (4X7)

90467-15054-00

Unavailable

25

CLIP (371)

90467-14015-00

Unavailable

26

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

27

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

28

O-RING(1KT)

93210-27778-00

Unavailable

29

PLUG

4H7-15189-00-00

Unavailable

30

O-RING (25G)

93210-20573-00

Unavailable

31

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

Unavailable

32

O-RING (2H9)

93210-14369-00

Unavailable

33

PLATE, BEARING COVER

1AE-15383-00-00

Unavailable

34

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

35

CLAMP

90462-08184-00

Unavailable

36

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

37

CLAMP

90462-08158-00

Unavailable

38

NOZZLE ASSEMBLY

2TK-15105-00-00

Unavailable

39

O-RING (26H)

93210-06632-00

Unavailable
