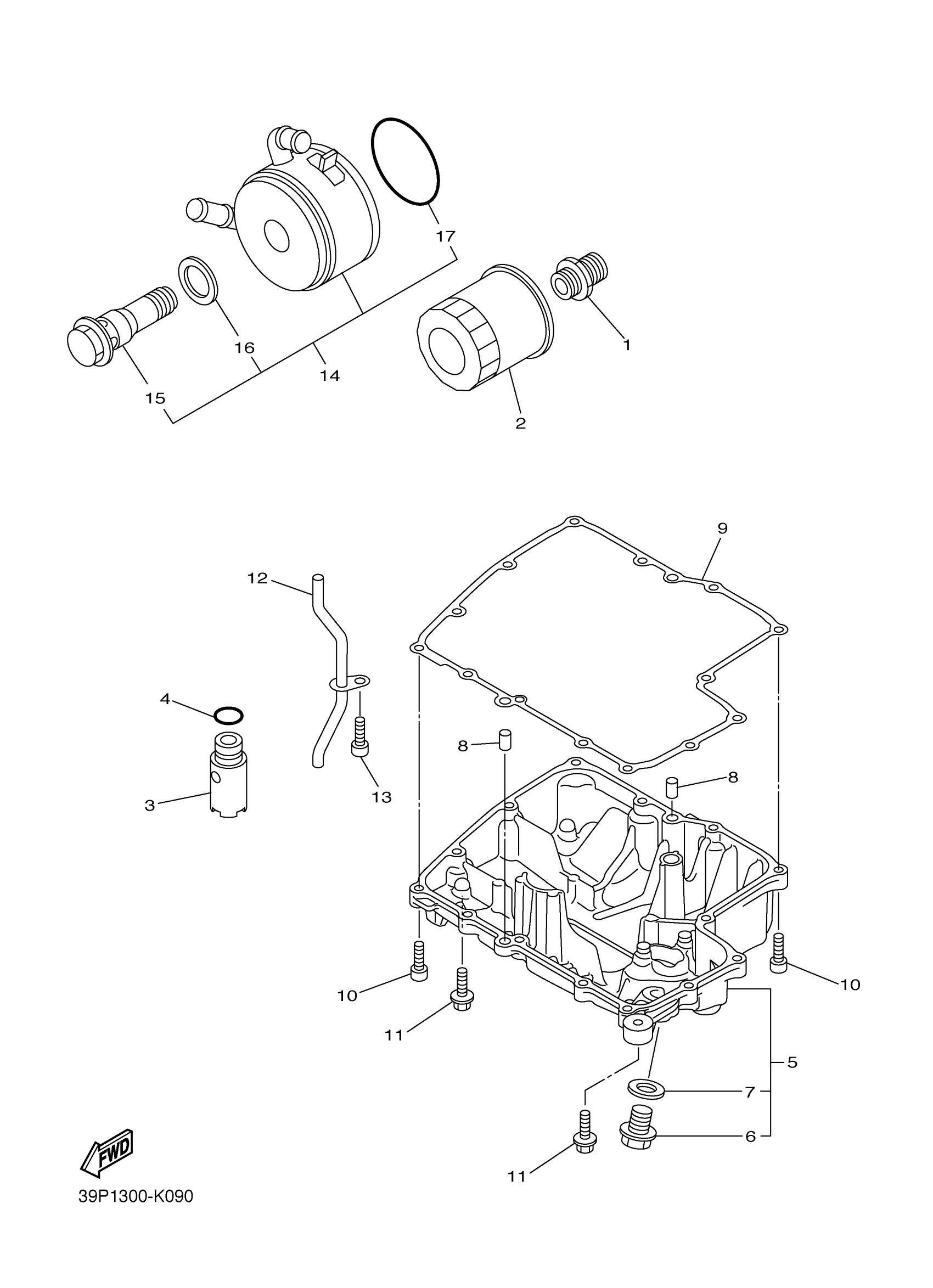

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20008-00

$23.99

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

RELIEF VALVE ASSY

5VY-13490-00-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

STRAINER COVER ASSY

39P-13400-00-00

Unavailable

6

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

7

GASKET

214-11198-01-00

$3.17

8

PIN, DOWEL

99530-08012-00

Unavailable

9

GASKET, STRAINER COVER

4C8-13414-00-00

Unavailable

10

BOLT,SOCKET

91317-06025-00

$5.60

11

BOLT, FLANGE

95812-06010-00

$2.98

12

PIPE, DELIVERY 1

5VY-13161-00-00

Unavailable

13

BOLT,SOCKET

91317-06016-00

$1.25

14

OIL COOLER ASSY

39P-13470-00-00

Unavailable

15

BOLT, UNION

5FL-12822-00-00

Unavailable

16

GASKET

5EB-13475-00-00

Unavailable

17

O-RING

5JW-13473-00-00

Unavailable
