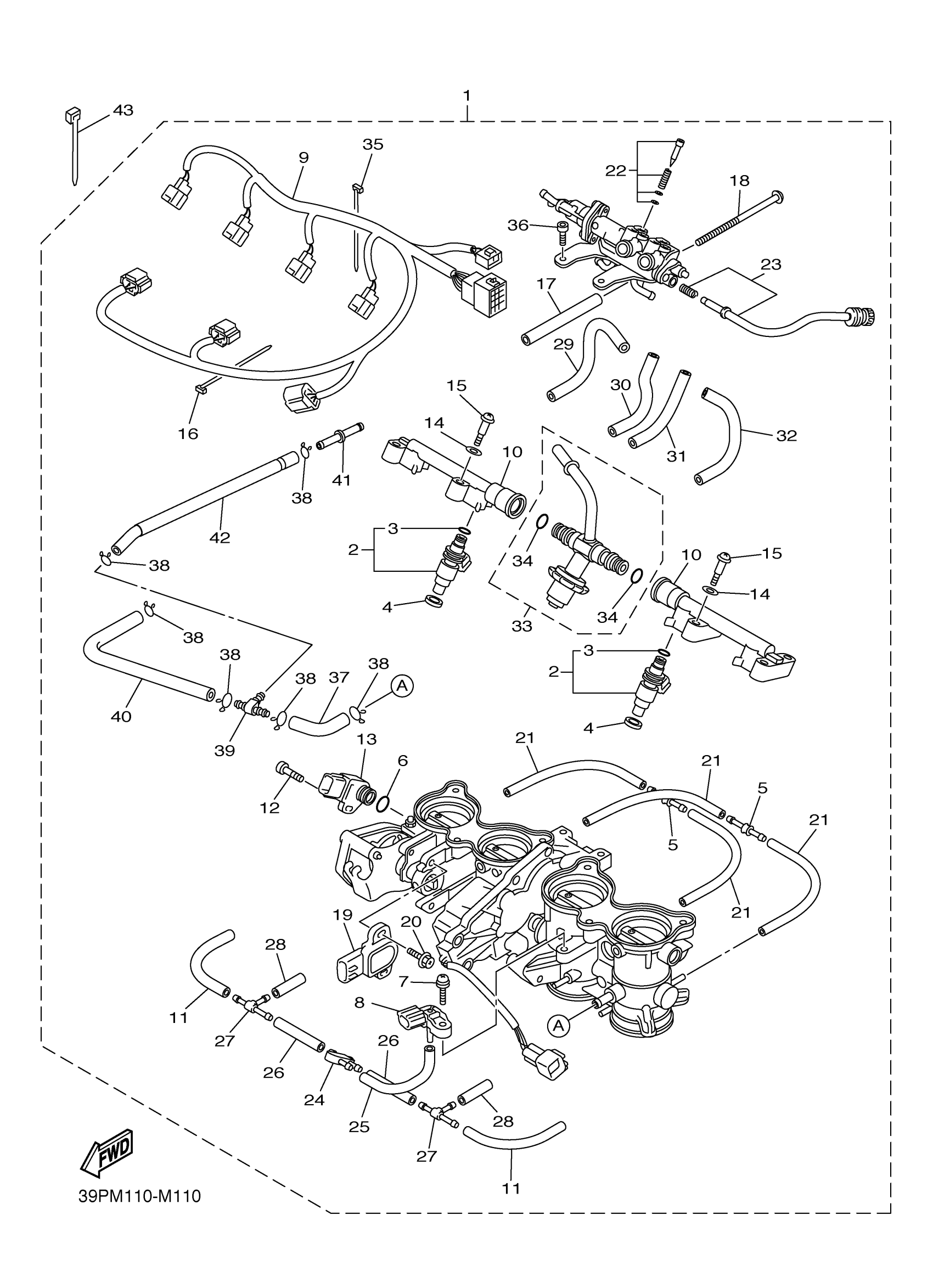

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
39P-13750-20-00
Unavailable
2
INJECTOR
39P-13761-00-00
Unavailable
6
O-RING
5YP-14561-00-00
Unavailable
10
PIPE, INL.
39P-1393A-00-00
Unavailable
11
HOSE, VACUUM SENSING 3
69J-13532-00-00
Unavailable
13
THROTTLE SENSOR ASSY
5P0-H5885-00-00
Unavailable
16
CLIP
39P-14137-00-00
Unavailable
17
PIPE
5VX-14149-00-00
Unavailable
18
SCREW
5VX-14565-00-00
Unavailable
19
THROTTLE SENSOR AS
8GL-85885-01-00
Unavailable
20
SCREW
5FL-14216-00-00
Unavailable
21
. PIPE
5JW-14349-00-00
Unavailable
22
AIR SCREW SET
5JW-14104-00-00
Unavailable
23
ADJUST SCREW SET
39P-14503-00-00
Unavailable
24
NIPPLE
3XV-14251-00-00
Unavailable
25
PIPE
5JW-14349-10-00
Unavailable
26
PIPE
8FP-14349-20-00
Unavailable
27
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
28
PIPE 1
5FL-14348-10-00
Unavailable
29
HOSE COMP.
39P-14807-00-00
Unavailable
30
HOSE
39P-14987-00-00
Unavailable
31
HOSE
31H-14987-00-00
Unavailable
32
PIPE
39P-14396-00-00
Unavailable
33
JOINT, THROTTLE BODY 1
39P-13795-00-00
Unavailable
34
O-RING
39P-14147-00-00
Unavailable
35
CLAMP
90464-23003-00
Unavailable
36
SCREW
39P-14592-00-00
Unavailable
43
CLAMP (6E5)
90465-13M11-00
Unavailable
