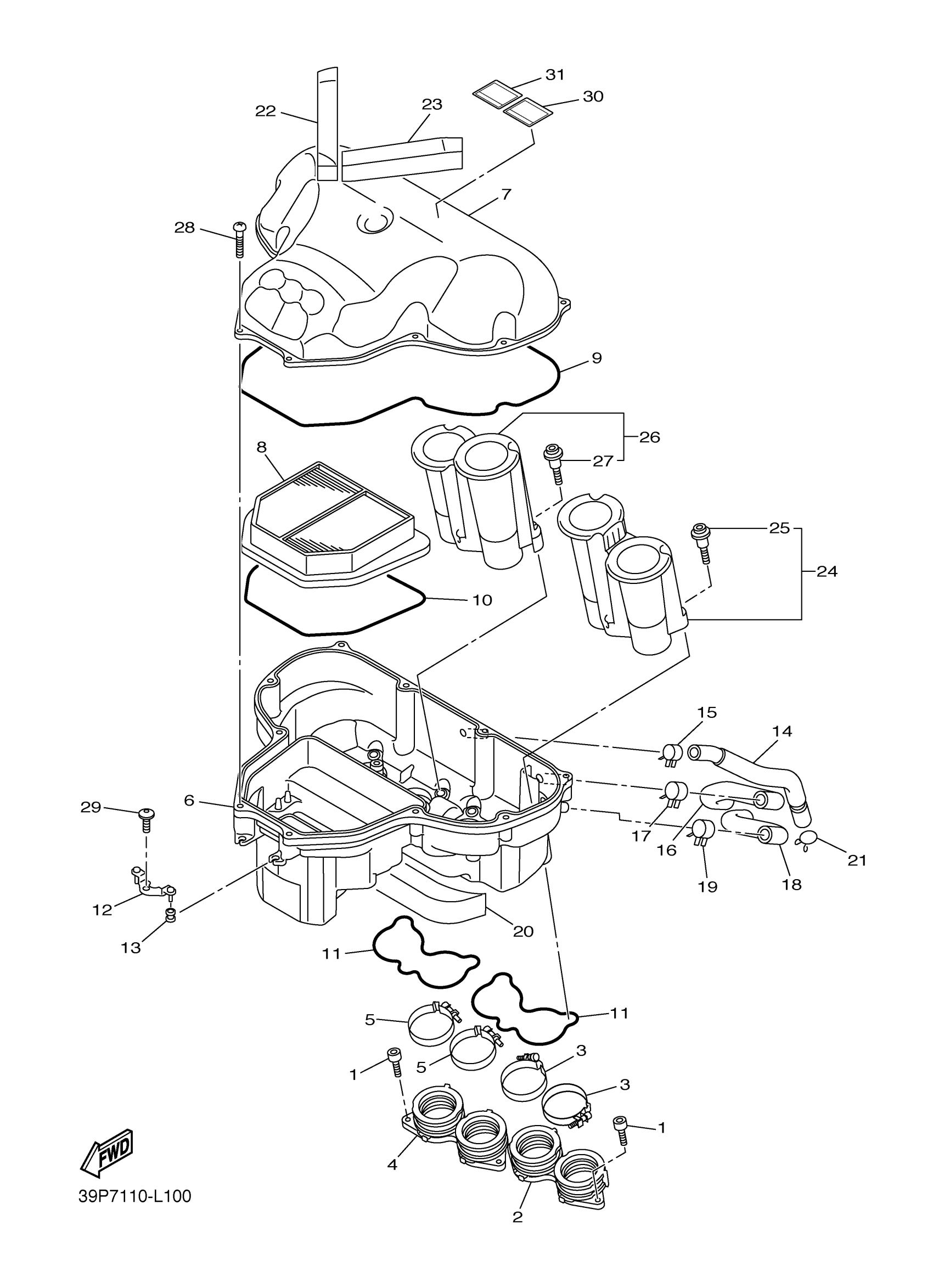

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 INTAKE Diagram

#

Description
Price

1

BOLT(3MA)

91312-06016-00

$5.60

2

JOINT

39P-13595-00-00

Unavailable

3

HOSE CLAMP ASSY

90450-56007-00

$13.99

4

JOINT, CARBURETOR 2

39P-13596-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-56007-00

$13.99

6

CASE, AIR CLEANER 1

39P-14411-00-00

Unavailable

7

CASE, AIR CLEANER 2

39P-14421-00-00

Unavailable

8

ELEMENT, AIR CLEANER

2D1-14451-00-00

$35.99

9

SEAL

2D1-14452-00-00

$7.99

10

SEAL

2D1-14462-00-00

Unavailable

11

SEAL

39P-14457-00-00

$4.26

12

STAY 1

2D1-14498-00-00

Unavailable

13

GROMMET (3Y2)

90480-08264-00

$8.49

14

PIPE, BREATHER 2

39P-15393-00-00

Unavailable

15

CLIP

90467-14171-00

Unavailable

16

PIPE

39P-14148-00-00

Unavailable

17

CLIP

90467-17003-00

Unavailable

18

PIPE

39P-14149-00-00

Unavailable

19

CLIP

90467-17003-00

Unavailable

20

DAMPER

2D1-14409-00-00

Unavailable

21

CLIP (371)

90467-14015-00

Unavailable

22

DAMPER 1

39P-14425-00-00

Unavailable

23

DAMPER 2

39P-14426-00-00

Unavailable

24

JOINT ASSY

39P-1440B-00-00

Unavailable

25

BOLT

90109-05005-00

Unavailable

26

JOINT ASSY 2

39P-1440C-00-00

Unavailable

27

BOLT

90109-05005-00

Unavailable

28

SCREW, ROUND TAPPING

90160-05013-00

Unavailable

29

BOLT

90111-06038-00

Unavailable
