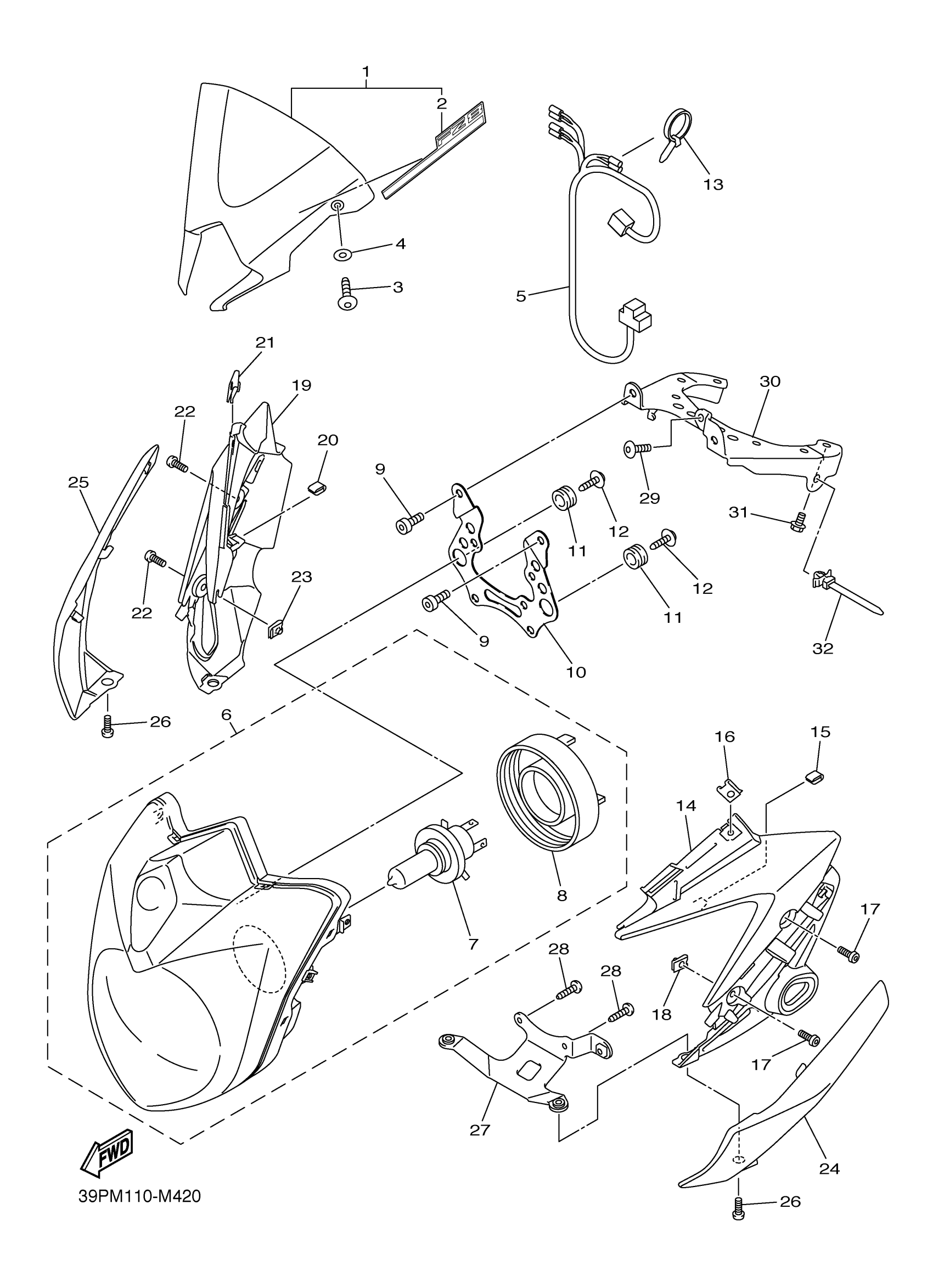

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 HEADLIGHT Diagram

#

Description
Price

1

COVER, METER

39P-Y835A-00-P5

Unavailable

2

GRAPHIC, 1

39P-283G4-00-00

Unavailable

3

SCREW, TAPPING(4TX)

90167-05076-00

$1.65

4

WASHER, PLATE

90202-05002-00

$0.83

5

WIRE, SUB LEAD

39P-82509-10-00

$43.58

6

HEADLIGHT ASSY

39P-84300-11-00

$367.58

7

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

8

COVER, SOCKET

5JW-84397-00-00

Unavailable

9

BOLT,SOCKET

91317-06010-00

$6.45

10

PLATE 1

20S-28396-00-00

$19.21

11

GROMMET

90480-14004-00

$6.99

12

SCREW, TAPPING

90164-05001-00

$5.86

13

CLAMP

90465-10098-00

$1.68

14

COVER, UPPER 1

39P-23121-00-00

Unavailable

15

TRIM

20S-28376-00-00

$2.80

16

NUT, SPRING(1YT)

90183-05042-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

18

NUT, SPRING(4ES)

90183-06069-00

$5.69

19

COVER, UPPER 2

39P-23131-00-00

Unavailable

20

TRIM

20S-28376-00-00

$2.80

21

NUT, SPRING(1YT)

90183-05042-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

23

NUT, SPRING(4ES)

90183-06069-00

$5.69

24

COVER, OUTER 1

39P-23122-00-P3

Unavailable

25

COVER, OUTER 2

39P-23132-00-P3

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

27

STAY, SETTING

39P-8431R-00-00

Unavailable

28

SCREW, TAPPING

97702-50016-00

Unavailable

29

BOLT, BUTTON HEAD

92012-05012-00

Unavailable

30

STAY, HEADLIGHT 2

39P-84119-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable

32

CLAMP(2TV)

90464-10112-00

Unavailable
