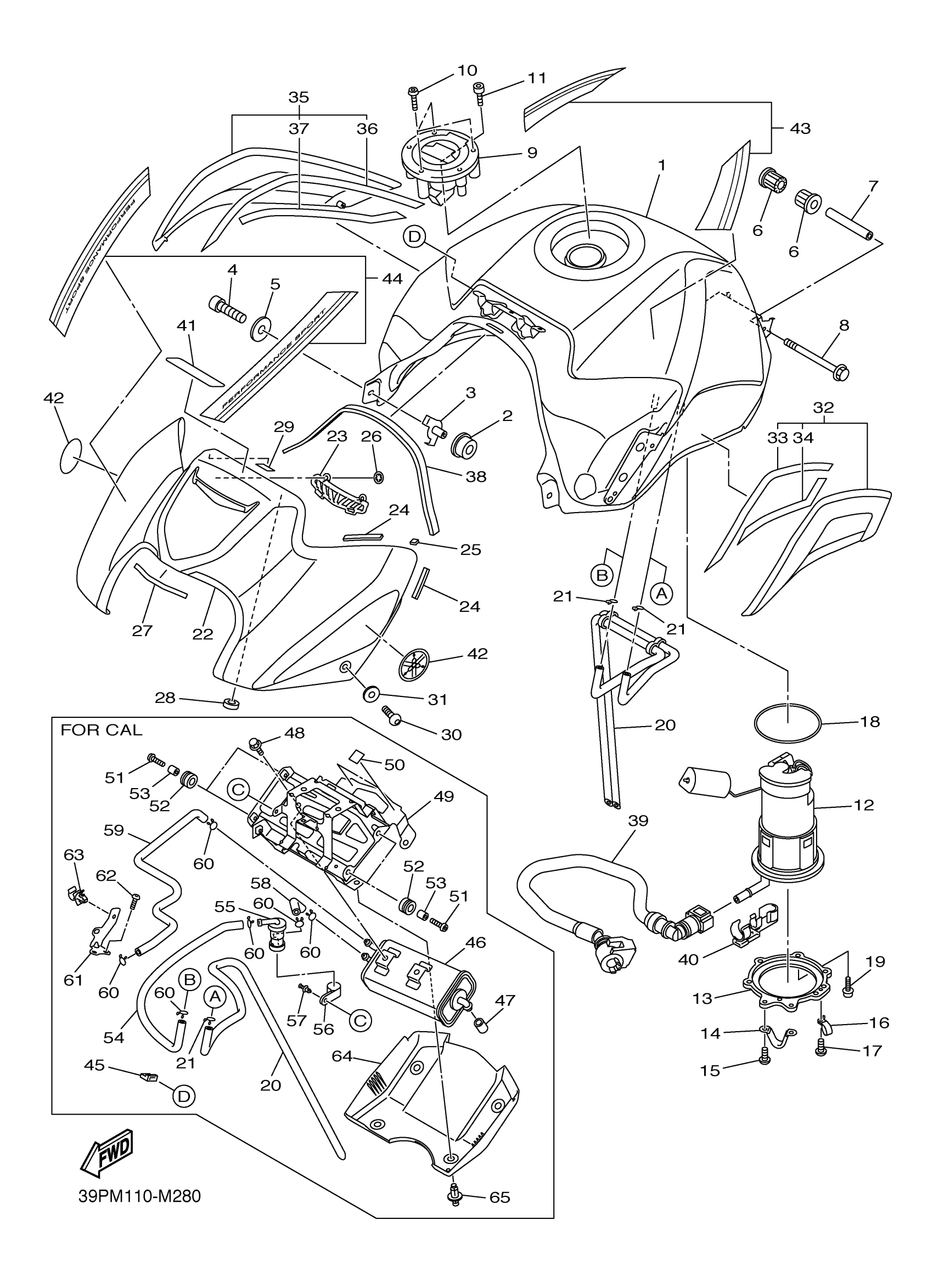

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 FUEL TANK Diagram

FUEL TANK COMP.

39P-24110-01-P4

$592.99

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

COLLAR

2D1-2412G-00-00

$25.99

BOLT(3MA)

91312-06016-00

$5.60

WASHER, PLATE

90201-06086-00

$7.49

DAMPER, LOCATING 3

5SL-24183-00-00

Unavailable

COLLAR

90387-06055-00

Unavailable

BOLT, FLANGE

95022-06090-00

$2.34

CAP ASSY

39P-24602-10-00

$255.99

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

BOLT

91312-05010-00

$5.60

FUEL PUMP COMP.

39P-13907-03-00

$487.99

BRACKET, FUEL PUMP

39P-24491-00-00

Unavailable

BRACKET, FUEL TANK 2

2D1-24192-00-00

Unavailable

SCREW, BIND

98902-05008-00

$1.70

CLAMP

90461-10010-00

Unavailable

SCREW, BIND

98902-05008-00

$1.70

O-RING

19B-24486-01-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

PIPE 7

39P-24317-00-00

Unavailable

CLIP

90467-090A2-00

Unavailable

COVER, TOP

39P-2171A-10-P5

Unavailable

COVER, TANK

39P-241B1-00-00

Unavailable

DAMPER

4XV-2834E-00-00

Unavailable

DAMPER, LOCATING 1

14B-24181-00-00

Unavailable

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

SEAL

39P-28307-00-00

Unavailable

DAMPER

4FM-28372-00-00

Unavailable

DAMPER, RUBBER 1

4RR-21485-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-05019-00

Unavailable

WASHER, PLATE(MG5)

90202-05224-00

Unavailable

TANK SIDE COVER ASSY 1

39P-24106-00-00

Unavailable

SEAL 3

39P-241A3-00-00

Unavailable

SEAL 5

39P-241A5-00-00

Unavailable

TANK SIDE COVER ASSY 2

39P-24108-00-00

Unavailable

SEAL 4

39P-241A4-00-00

Unavailable

SEAL 6

39P-241A6-00-00

Unavailable

DAMPER, PLATE 5

2D1-2414P-00-00

Unavailable

PIPE, FUEL 1

39P-13971-00-00

Unavailable

CLAMP

90464-16005-00

Unavailable

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

EMBLEM

5SL-2413B-00-00

Unavailable

GRAPHIC SET

39P-24240-20-00

Unavailable

GRAPHIC SET 1

42P-24230-00-00

Unavailable
