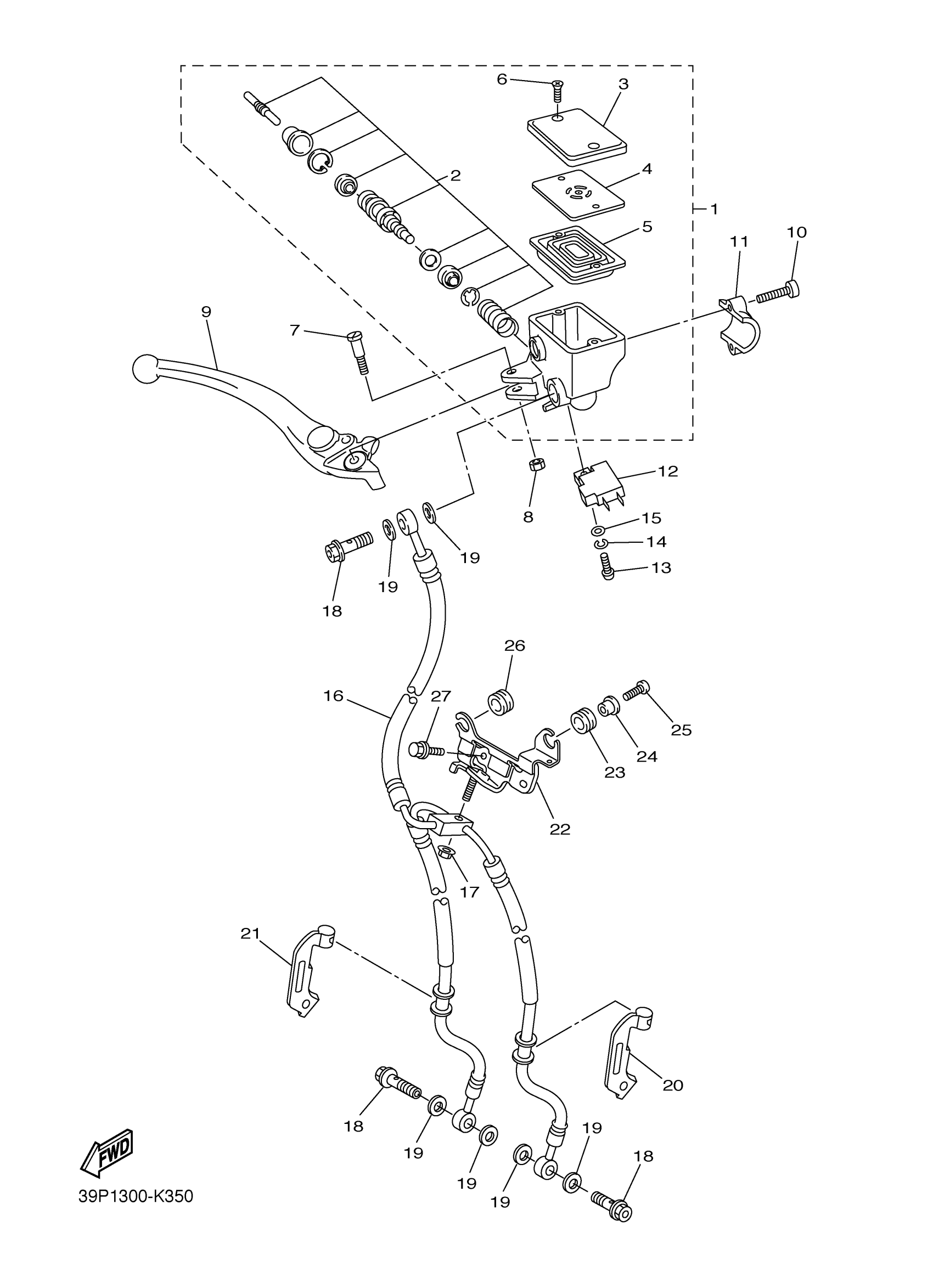

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

2D1-W2587-00-00

$232.08

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$58.47

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$13.33

5

GASKET, DIAPHRAGM

20S-25854-00-00

$21.07

6

SCREW

5VS-2589H-00-00

$3.16

7

BOLT, LEVER

5VS-2589F-00-00

$11.48

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

LEVER 2

5VS-83922-00-00

$68.90

10

BOLT

5VS-26332-00-00

$3.67

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$29.63

12

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$34.26

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

15

WASHER, PLAIN (646)

92990-04600-00

$0.91

16

HOSE, BRAKE 1

39P-25872-00-00

Unavailable

17

NUT, FLANGE

95702-06500-00

Unavailable

18

BOLT, UNION

90401-10020-00

Unavailable

19

GASKET

90430-10005-00

Unavailable

20

HOLDER, BRAKE HOSE 1

2D1-25875-00-00

Unavailable

21

HOLDER, BRAKE HOSE 2

2D1-25876-00-00

Unavailable

22

STAY, HEADLIGHT 1

39P-84118-00-00

Unavailable

23

GROMMET

90480-14004-00

Unavailable

24

COLLAR

90387-06M60-00

$6.37

25

SCREW(4DN)

90149-06302-00

Unavailable

26

GROMMET

90480-13005-00

Unavailable

27

BOLT, FLANGE

95817-06014-00

Unavailable
