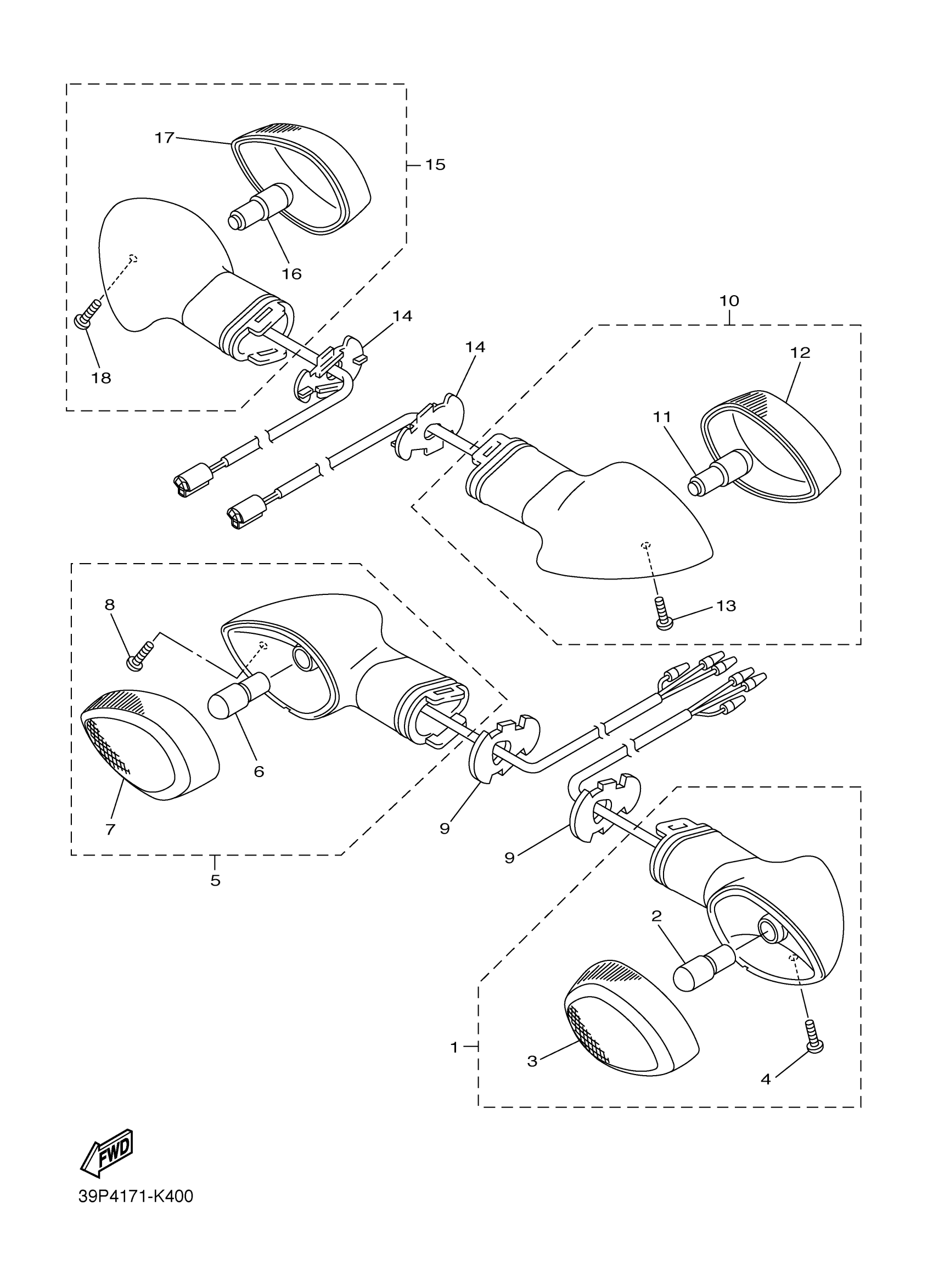

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

39P-83310-10-00

Unavailable

2

BULB, FLASHER (12V-21/5W)

39P-83331-00-00

$7.99

3

LENS COMP

5PW-8333A-10-00

$33.99

4

.. SCREW, TAPPING

97707-04012-00

Unavailable

5

FRONT FLASHER LIGHT ASSY 2

39P-83320-10-00

Unavailable

6

BULB, FLASHER (12V-21/5W)

39P-83331-00-00

$7.99

7

LENS COMP

5PW-8334A-10-00

$33.99

8

.. SCREW, TAPPING

97707-04012-00

Unavailable

9

STAY, FLASHER 1

3D7-83318-10-00

$8.99

10

REAR FLASHER LIGHT ASSY 1

3C3-83330-30-00

$82.99

11

BULB, FLASHER

5PW-83331-00-00

$14.49

12

LENS COMP

5PW-8334A-10-00

$33.99

13

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

14

STAY, FLASHER 1

2D1-83318-00-00

$7.99

15

REAR FLASHER LIGHT ASSY 2

3C3-83340-30-00

$72.99

16

BULB, FLASHER

5PW-83331-00-00

$14.49

17

LENS COMP

5PW-8333A-10-00

$33.99

18

SCREW, TRUSS TAP.

97707-40012-00

Unavailable
