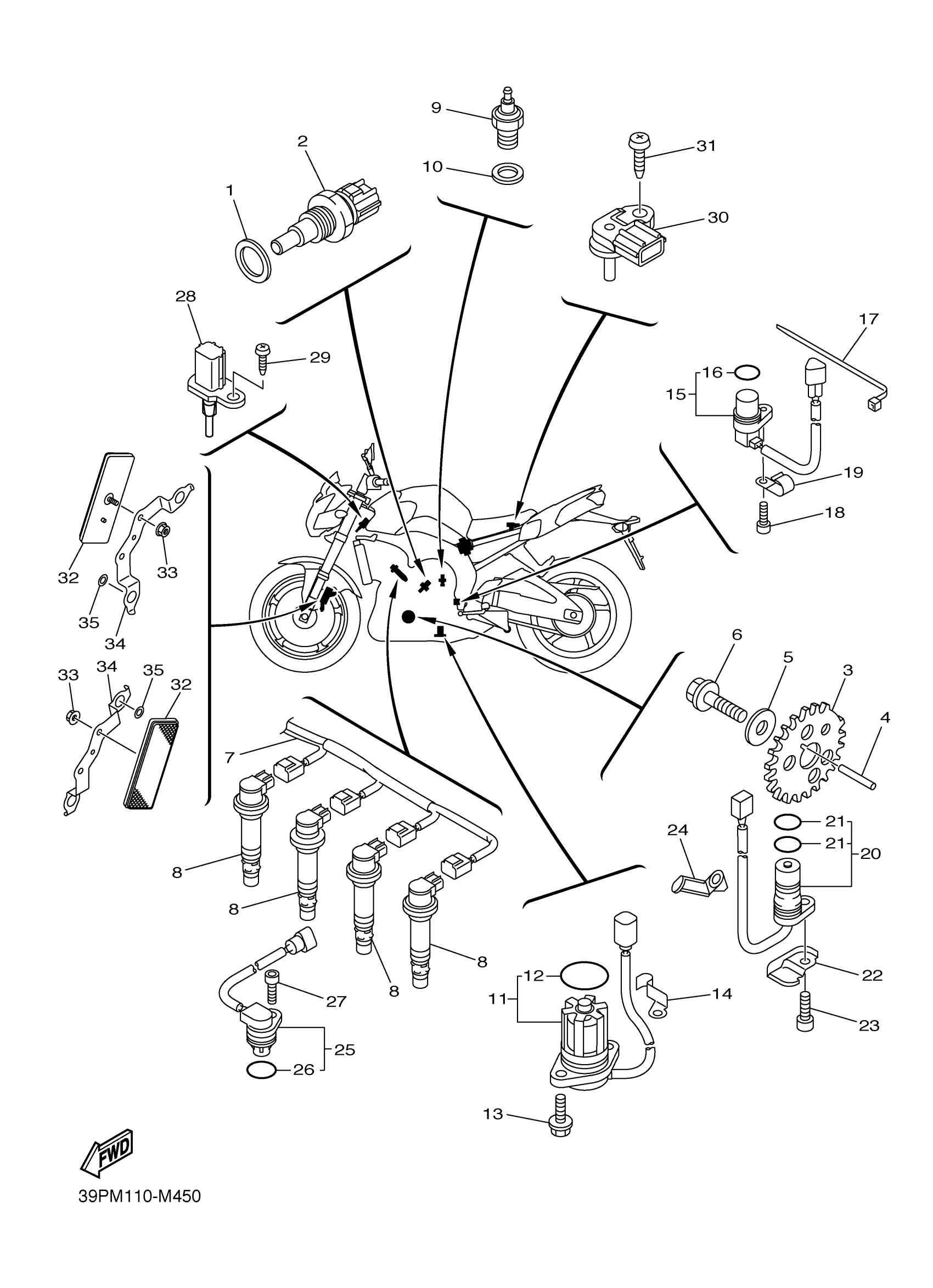

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 ELECTRICAL 1 Diagram

#

Description
Price

1

WASHER, PLATE

90201-12790-00

$6.39

2

THERMOSENSOR ASSY

5YP-85790-00-00

$52.60

3

ROTOR

2D1-81673-00-00

Unavailable

4

KEY, STRAIGHT

90282-03001-00

$9.55

5

WASHER, PLATE

90201-10039-00

$6.32

6

BOLT (30X)

90105-10290-00

Unavailable

7

WIRE, SUB LEAD

39P-82309-00-00

Unavailable

8

IGNITION COIL ASSY

39P-82310-10-00

$142.11

9

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$49.24

10

GASKET (1KH,1.0T)

90430-10148-00

$4.44

11

OIL LEVEL GAUGE ASSY

5VY-85720-00-00

Unavailable

12

O-RING

5VY-8A8E0-00-00

$10.21

13

BOLT, FLANGE

95022-06016-00

$3.11

14

CLAMP

90465-08053-00

Unavailable

15

SENSOR, SPEED

4XV-83755-04-00

Unavailable

16

O-RING

4D9-81168-00-00

Unavailable

17

CLAMP

90464-51001-00

Unavailable

18

BOLT,SOCKET

91317-06016-00

Unavailable

19

CLAMP

90462-08057-00

Unavailable

20

PICK-UP ASSY

23P-81670-01-00

Unavailable

21

O-RING 1

5VY-8A8E1-00-00

Unavailable

22

PLATE

23P-15589-00-00

Unavailable

23

BOLT,SOCKET

91317-06016-00

Unavailable

24

CLAMP

90465-08054-00

Unavailable

25

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

26

O-RING

4D9-81168-00-00

Unavailable

27

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

28

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

29

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

30

SENSOR, PRESSURE

5S7-82380-00-00

Unavailable

31

SCREW, TAPPING(JA3)

97707-60520-00

Unavailable

32

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

33

NUT, FLANGE

95702-05500-00

Unavailable

34

BRACKET, REFLECTOR 1

39P-85112-00-00

Unavailable

35

WASHER, PLATE

90201-10057-00

Unavailable
