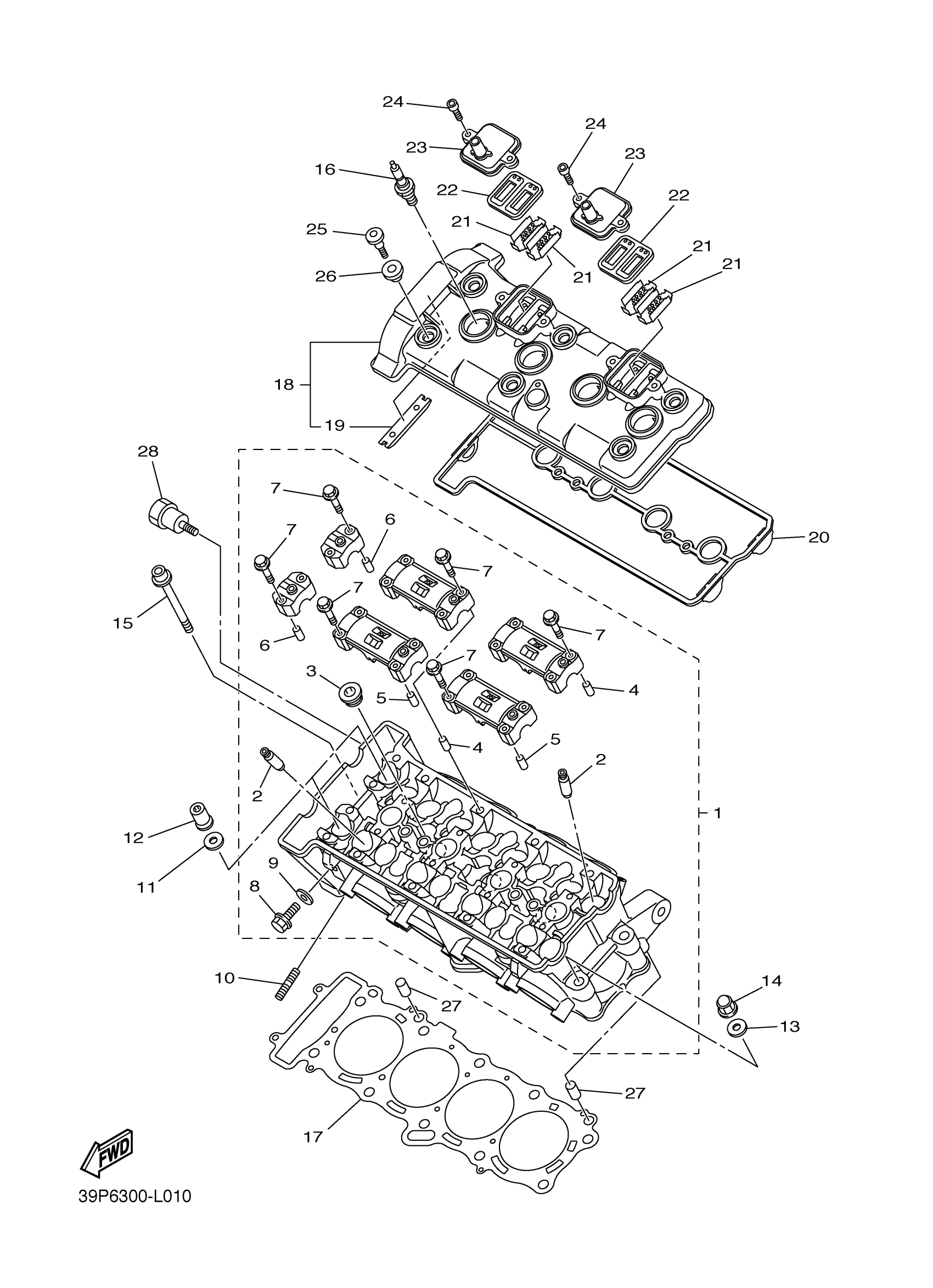

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

39P-11101-09-00

Unavailable

2

GUIDE, VALVE 2

20S-11134-10-00

$43.99

3

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

BOLT, WASHER BASED

90105-06027-00

$7.49

8

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

9

GASKET 256113960000

90430-06014-00

Unavailable

10

BOLT, STUD

90116-08087-00

$8.49

11

WASHER, PLATE

90201-10035-00

$4.19

12

NUT

90179-10029-00

$10.49

13

WASHER, PLATE

90201-10035-00

$4.19

14

NUT, CROWN(2GG)

90176-10075-00

$8.49

15

BOLT, HEXAGON SOCKET HEAD

90110-06212-00

$7.49

16

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

17

GASKET, CYLINDER HEAD 1

39P-11181-00-00

Unavailable

18

COVER, CYLINDER HEAD 1

4C8-11191-00-00

Unavailable

19

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

20

GASKET, HEAD COVER 1

4C8-11193-00-00

Unavailable

21

PLATE

5VY-1482K-00-00

Unavailable

22

REED VALVE ASSY

5SL-14890-10-00

Unavailable

23

CAP, CASE

5VY-14899-01-00

Unavailable

24

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

25

BOLT(4BP)

90109-066F0-00

Unavailable

26

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

27

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

28

BOLT, MOUNT

2D1-11026-10-00

Unavailable
