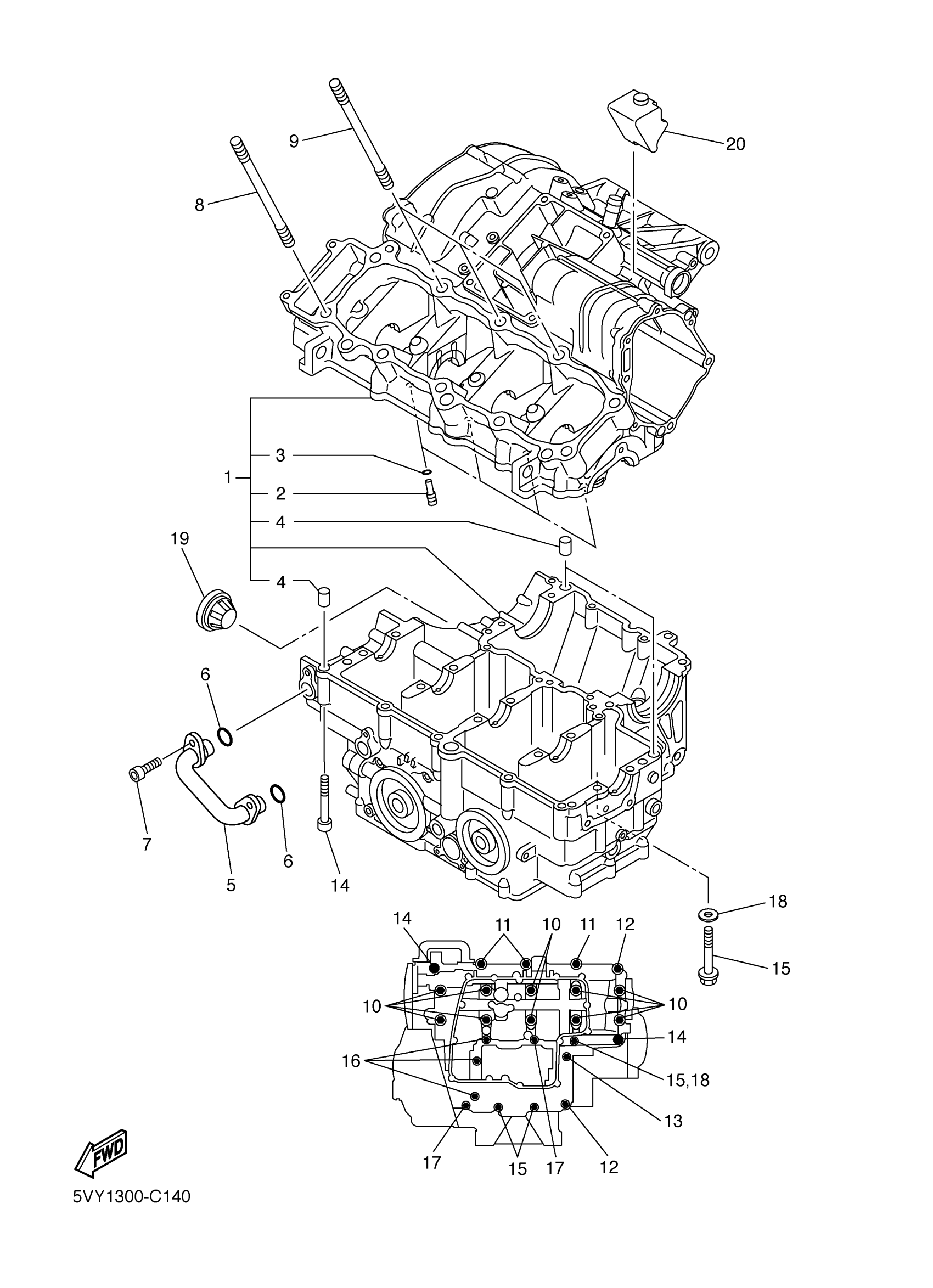

Yamaha FZ8NDC (FZ8 CA) 39PN 2013 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
4C8-15100-19-00
Unavailable
5
PIPE, OIL 2
39P-13418-00-00
Unavailable
10
BOLT, WITH WASHER
90119-09012-00
Unavailable
16
BOLT, FLANGE
95812-06070-00
Unavailable
17
BOLT, FLANGE
95812-06050-00
Unavailable
18
GASKET (4V2)
90430-06166-00
Unavailable
19
GAUGE, LEVEL
5PW-15361-00-00
Unavailable
20
DAMPER, ENGINE MOUNT 1
5VY-15316-00-00
Unavailable
